Yamaha TT600RE 2004 - Cable Routing

SPEC
CABLE ROUTING
2-26
2
22
4
3
4
7
5
5
6
3
17
5
1
6
5
9
8
18
19
16
20
13
14
11
15
12
10
5
21
1
A

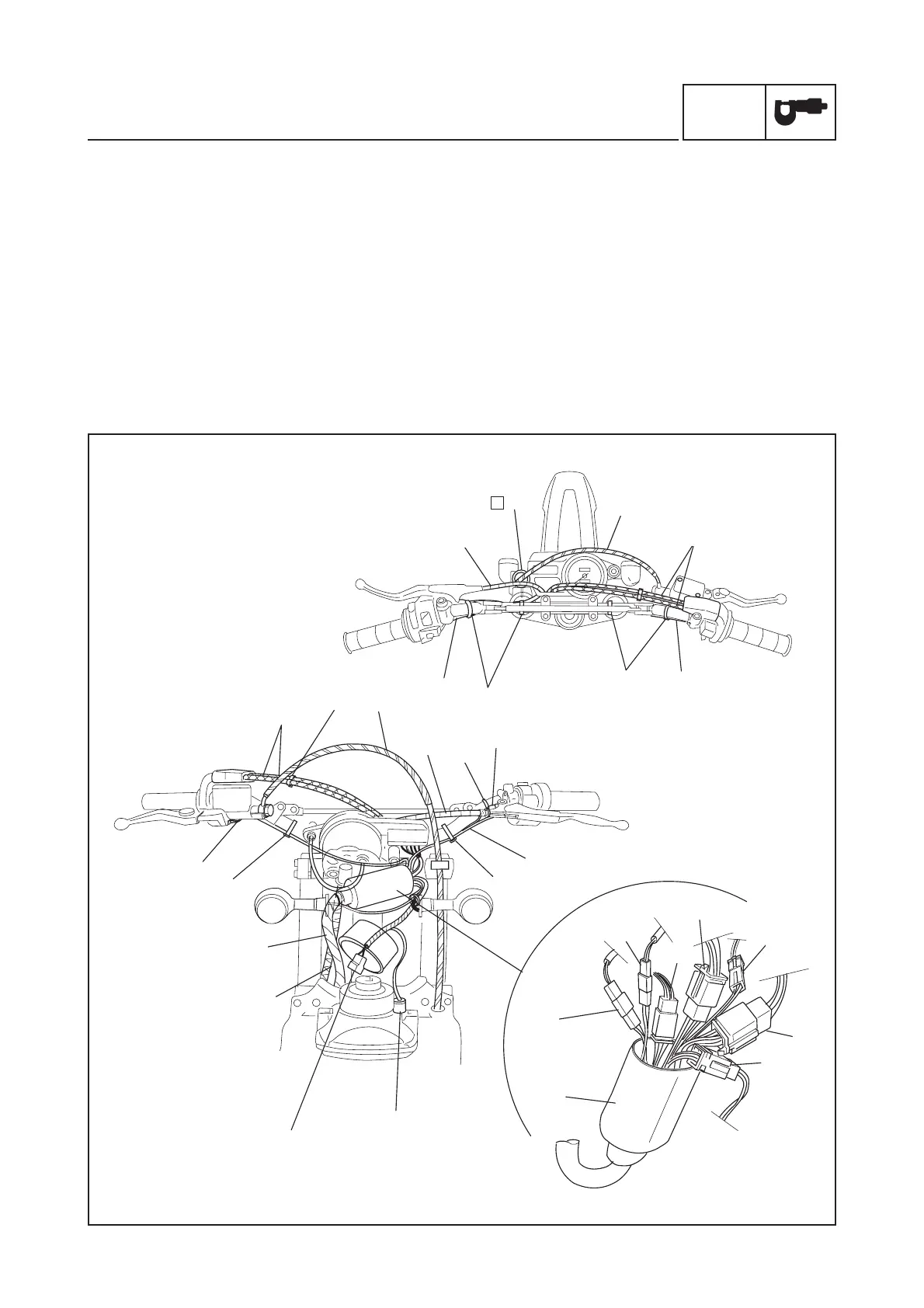

CABLE ROUTING
(1) Clutch cable
(2) Brake hose holder
(3) Brake hose
(4) Throttle cables
(5) Bands
(6) Lighting wire
harness
(7) Brake and engine
stop switch wire
harness
(8) Tachometer/
odometer cable
(9) Complete wire
harness
(10) Socket cover
(11) Engine stop switch
connector
(12) Headlight wire
harness connector
(13) Left turn light
connector
(14) Right turn light
connector
(15) Meter wire harness
connector
(16) Main switch wire
harness connector
(17) Clutch switch
(18) Headlight connector
(19) Side/taillight
connector
(20) Clutch switch
connector
(21) Brake switch
connector
(22) Clip
[A] Lay the brake hose
throught the holder
on the handle
crown.
