CHAS
FRONT FORK
4-59

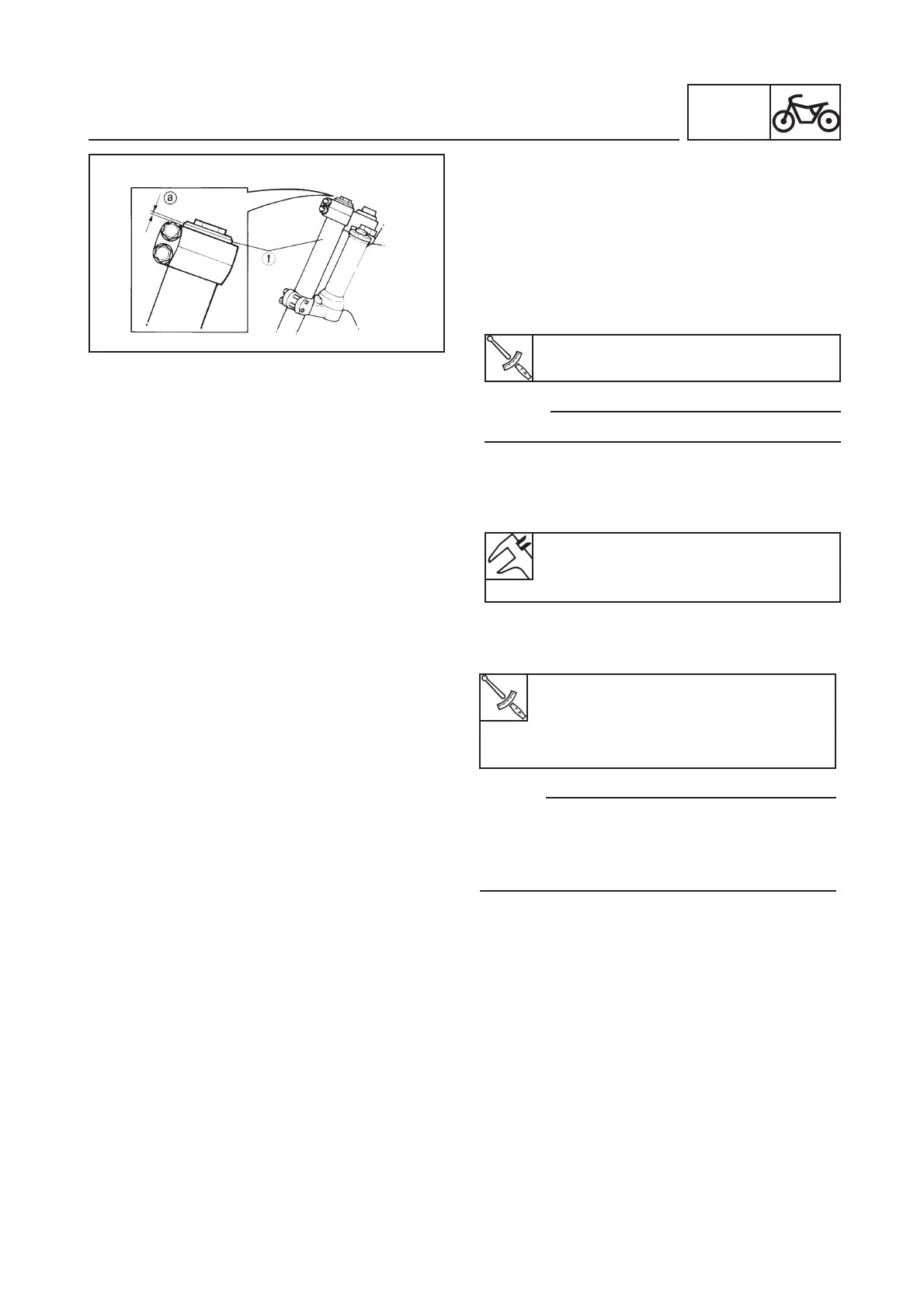

FRONT FORK INSTALLATION
1. Install:
•
Front fork (1)
Temporarily tighten the pinch bolts (lower).
2. Tighten:
•
Cap bolt
Cap bolt:
20 Nm (2.0 kgm)
NOTE:
Do not tighten the pinch bolt (upper) yet.
3. Adjust:
•
Front fork top end (a)
Front fork top end (a)
(Standard):
0 mm
4. Tighten:
•
Pinch bolt (upper and lower bracket)
Pinch bolt (upper bracket):
28 Nm (2.8 mkg)
Pinch bolt (under bracket):
23 Nm (2.3 mkg)
NOTE:
Always tighten the lower pinch bolt (to the pre-
scribed torque) and then the upper one (to the
prescribed torque) and then retighten the lower
one (to the prescribed torque).
5. Install:
•
Front wheel
•
Caliper
•
Brake hose
•
Tachometer cable
Refer to “FRONT WHEEL” and “FRONT
BRAKE” sections in this CHAPTER.
