GEN
INFO
IMPORTANT INFORMATION
1-3
EB101030

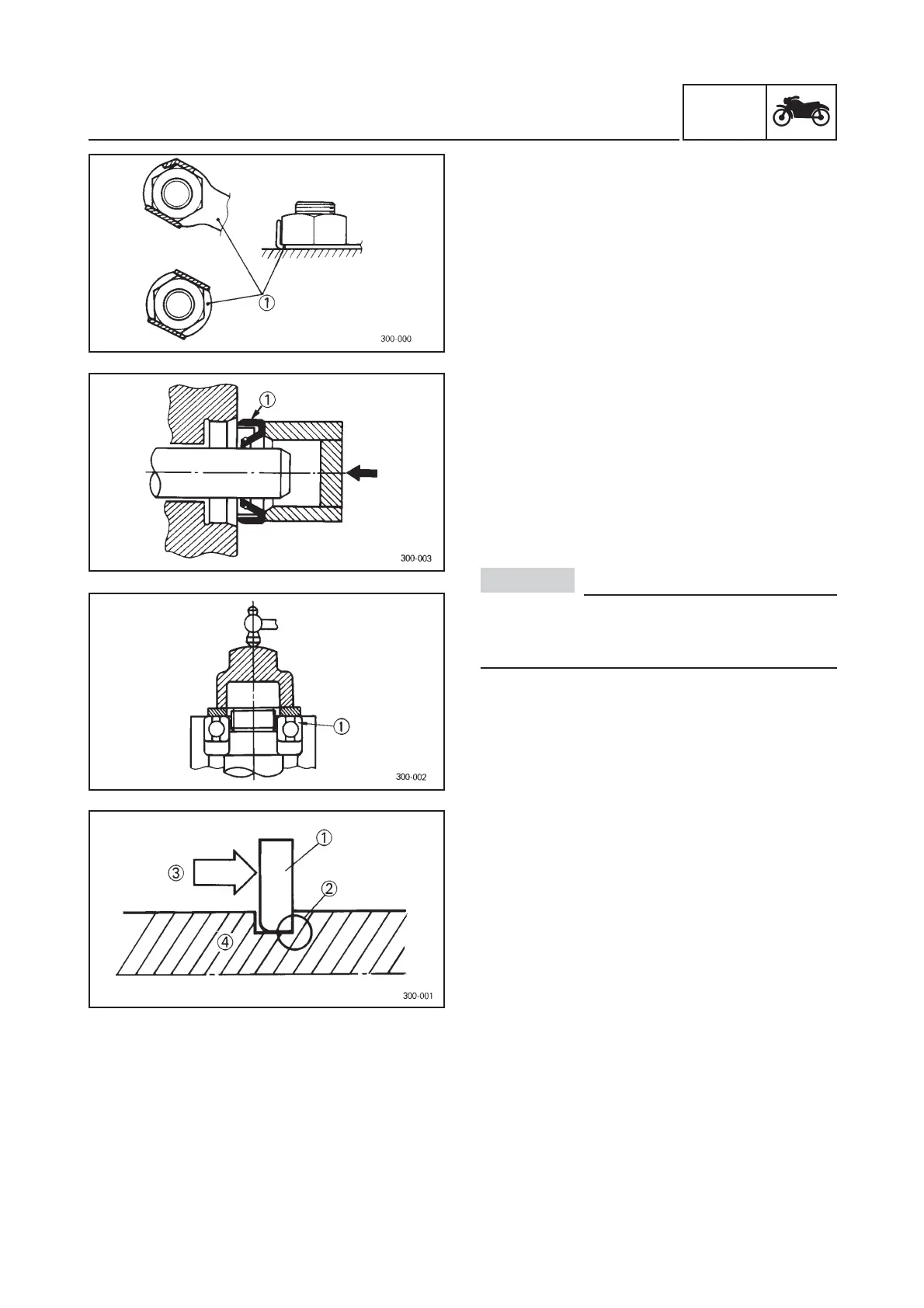

LOCK WASHERS/PLATES AND COTTER PINS
1. Replace all lock washers/plates 1 and cotter
pins after removal. Bend lock tabs along the
bolt or nut flats after the bolt or nut has been
tightened to specification.
EB101040
BEARINGS AND OIL SEALS
1. Install bearings and oil seals so that the man-
ufacturer’s marks or numbers are visible.
When installing oil seals, apply a light coating
of lightweight lithium base grease to the seal
lips. Oil bearings liberally when installing, if
appropriate.
1 Oil seal
Do not use compressed air to spin the bear-
ings dry. This will damage the bearing sur-
faces.
1 Bearing
CAUTION:
EB101050
CIRCLIPS
1. Check all circlips carefully before reassembly.
Always replace piston pin clips after one use.
Replace distorted circlips. When installing a
circlip 1, make sure that the sharp-edged
corner 2 is positioned opposite the thrust 3
it receives. See sectional view.
4 Shaft
OR
