ENGINE DISASSEMBLY
5-12
ENG

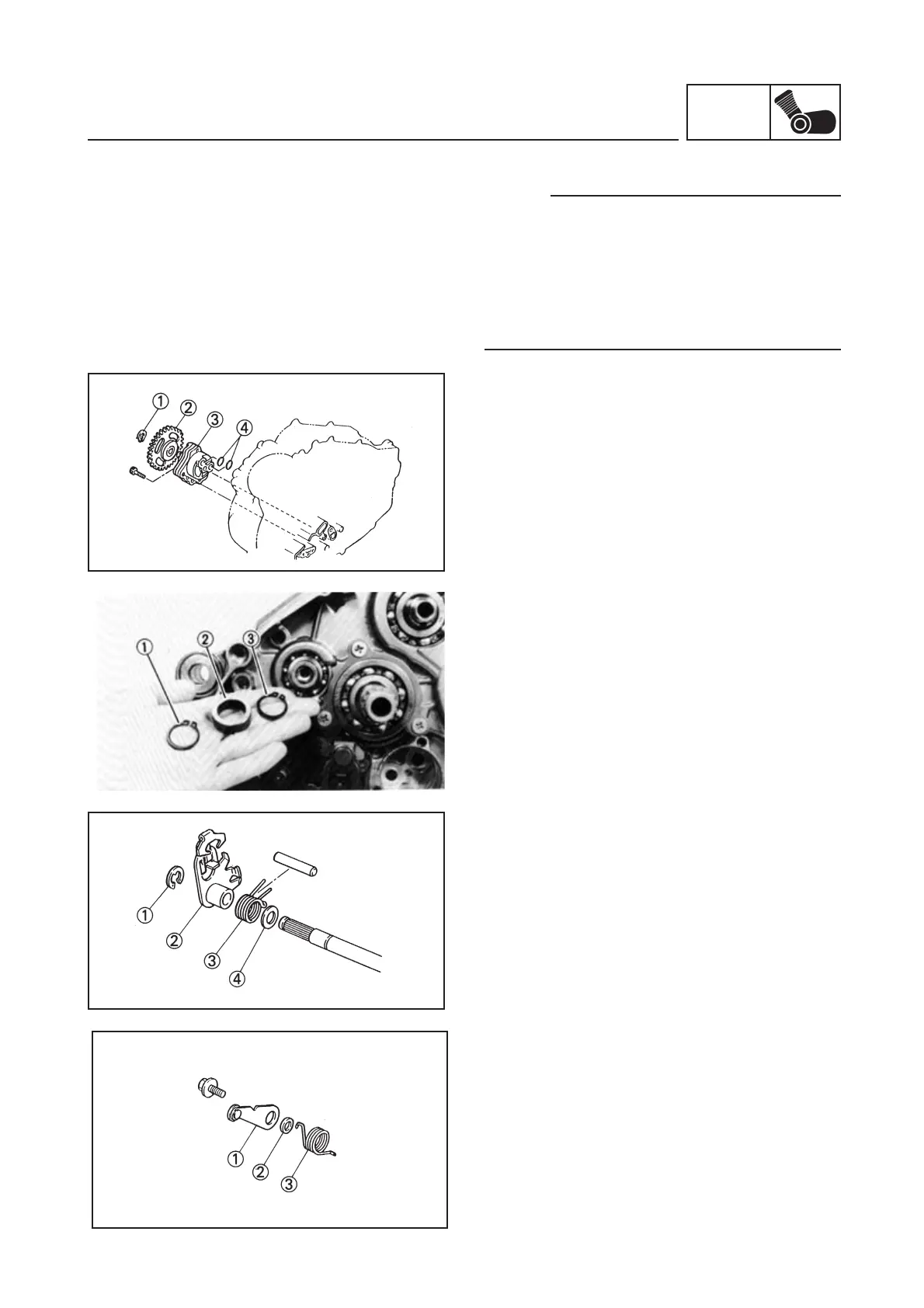

OIL PUMP AND SHIFT LEVER
NOTE:
The oil pump and shift lever may be checked with
the engine installed by removing the following
parts:
•
Footrest (R)
•
Oil delivery hose screw
•
Crankcase (R)
•
Clutch
1. Remove:
•
Circlip (1)
•
Oil pump gear (2)
•
Oil pump (3)
•
O-rings (4)
2. Remove:
•
Circlip (1) (from drive shaft)
•
Ring (2)
•
Circlip (3)
3. Remove:
•
Circlip (1)
•
Shift lever (2)
•
Spring (3)
•
Flat washer (4)
4. Remove:
•
Stopper lever (1)
•
Ring (2)
•
Spring (3)
