ENGINE ASSEMBLY AND SETTING
5-50
ENG

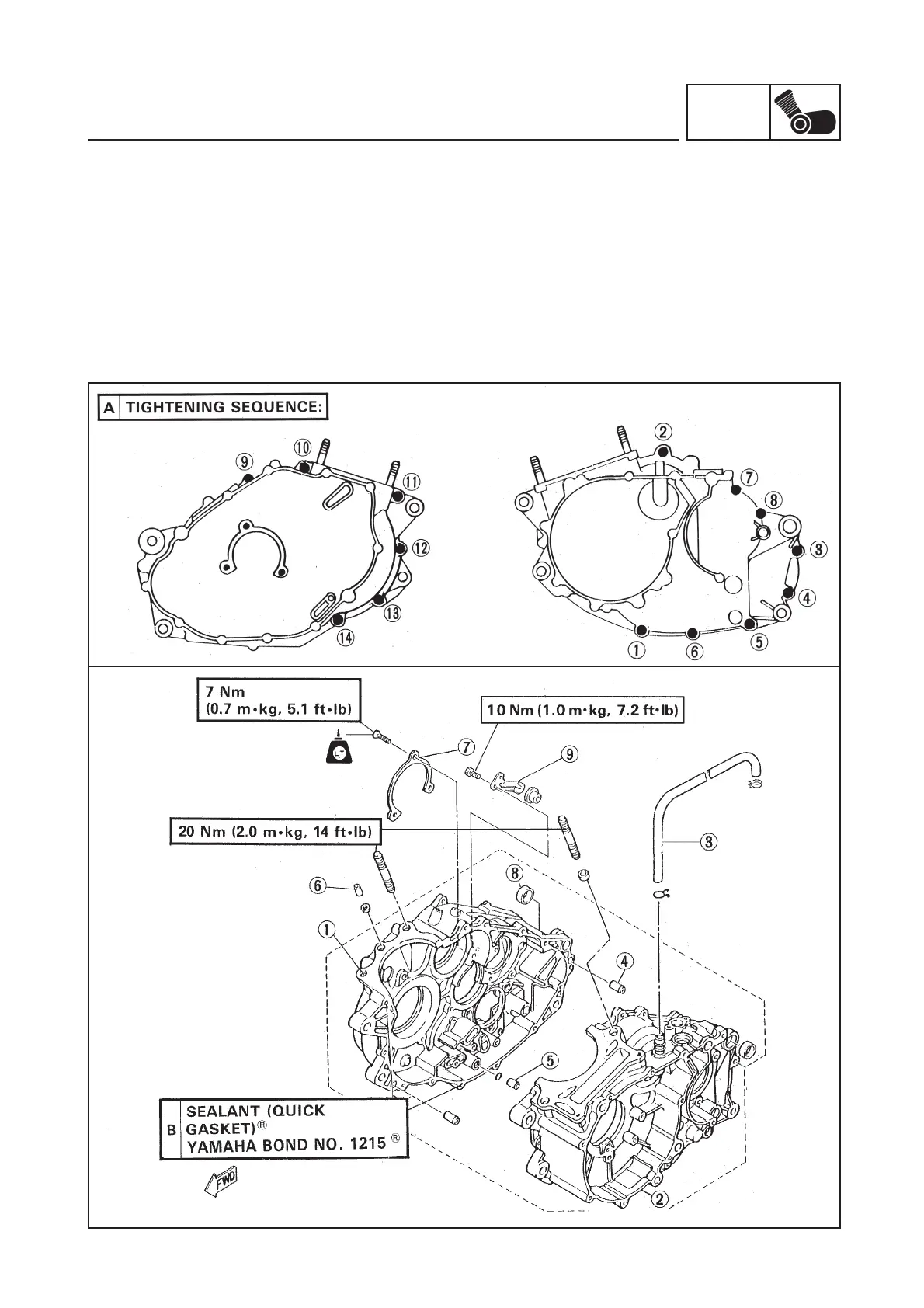

CRANKCASE
(1) Crankcase (R)
(2) Crankcase (L)
(3) Crankcase ventilation hose
(4) Dowel pin
(5) Dowel pin
(6) Dowel pin
(7) Bearing cover plate
(8) Collar
(9) Lock plate
