SWINGARM
4-76
CHAS
SWINGARM

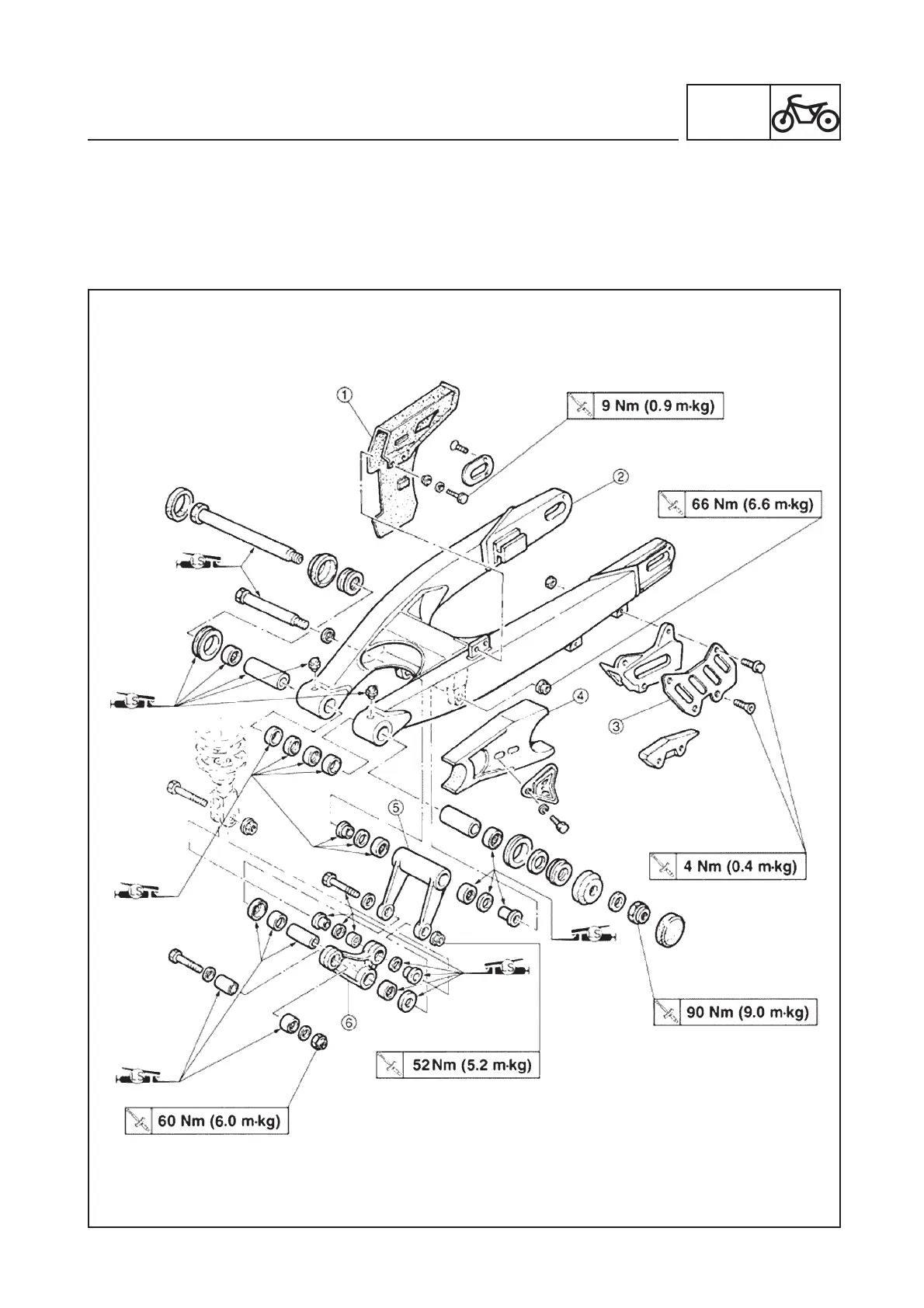

(1) Upper chain case
(2) Swingarm
(3) Chain support
(4) Swingarm guard seal
(5) Connecting rod
(6) Relay arm
[A] LATERAL FREE PLAY (END): 1.0 mm
[B] LATERAL FREE PLAY: 0.4 ~ 0.7 mm
