CHAS

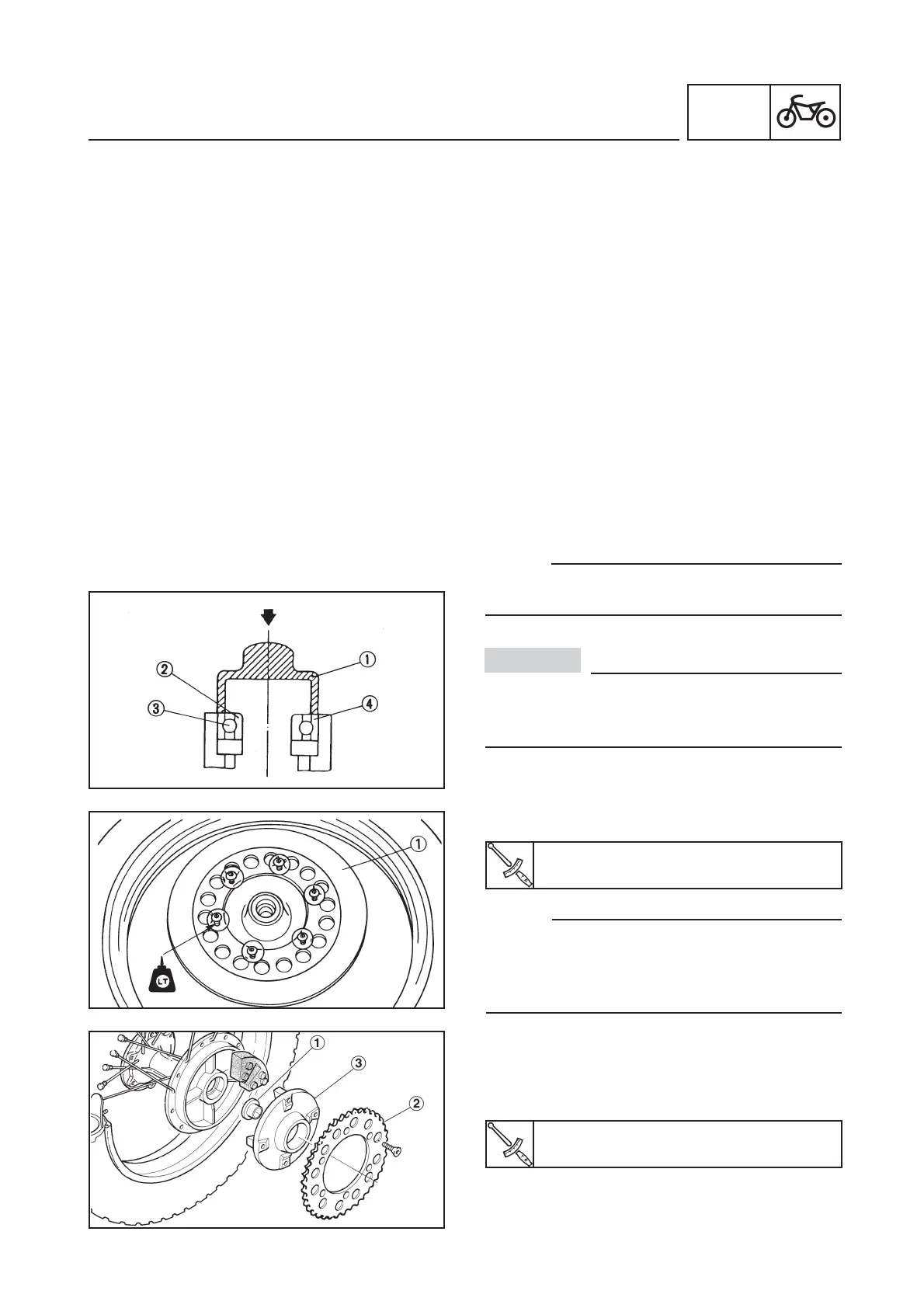

REAR WHEEL AND BRAKE DISC
4-25
REAR WHEEL ASSEMBLY
1. Install:
•
Wheel spacer
•
Wheel bearing
•
Oil seal
•
Dust cover
•
Wheel bearing
•
Wheel spacer
•
Wheel bearing
•
Hub bearing
•
Oil seal
•
Hub spacer
•
Dampers
•
Hub and driven sprocket
Assembly procedure:
•
Install the new bearing, the dust cover and the oil
seal by following the disassembly procedures in
reverse order.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
REAR WHEEL INSTALLATION
1. Install:
•
Brake disc (1)
NOTE:
Use a wrench (1) with an external diameter equal to
that of the bearing, dust cover and oil seal.
Do not strike the bearing inner race (2) or balls
(3). The contact must only be made with the
outer race (4).
CAUTION:
2. Install:
•
Hub spacer (1)
•
Driven sprocket (2)
•
Hub and driven sprocket
Screw (brake disc):
12 Nm (1.2 mkg)
NOTE:
•
Apply LOCTITE
®
to the threads of brake disc
screw.
•
Tighten the screws (brake disc) in stage using
a crisscross pattern.
Screw (driven sprocket):
48 Nm (4.8 mkg)
3. Install:
•
Collar
To Next Page
