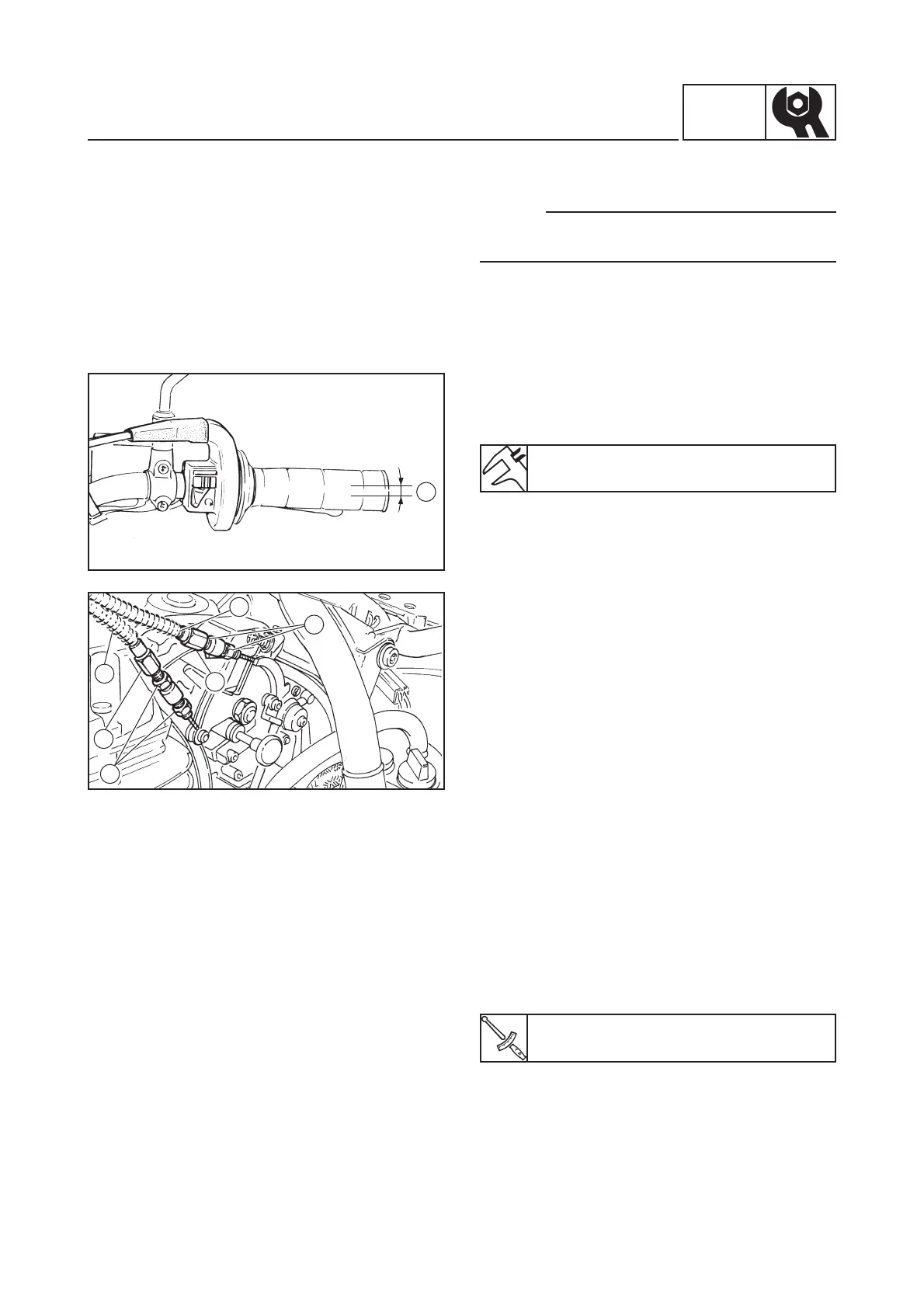

THROTTLE CABLE FREE PLAY ADJUSTMENT
3-8
INSP
ADJ
THROTTLE CABLE FREE PLAY
ADJUSTMENT
NOTE:
Before adjusting the throttle cable free play, adjust
the engine idle speed.
1. Remove:
•
Seat
•
Fuel tank
See section “SEAT, FUEL TANK AND
REAR COWLING”.
2. Check:
•
Throttle cable free play (a)
Out of specification ➔ Adjust.
Throttle cable free play:
3 ~ 5 mm (at the grip flange)
3. Adjust:
•
Throttle cable free play
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
Adjustment:
•
Loosen the throttle cable (2) lock nuts (1).
•
Turn the adjuster (3) clockwise or anticlock-
wise to obtain the required free play.
•
If after loosening the adjuster by 5 mm, the
free play is still not correct, tighten the
adjuster (4) on the throttle cable (5) once
more.
•
Tighten the lock nuts.
(1), (6) Lock nuts
4. Reassemble:
•
Fuel tank
•
Seat
See section “SEAT, FUEL TANK AND
REAR COWLING”.
a
Seat screws:
10 Nm (1,0 mkg)
2
1
3
6
4
5
