ENG
ENGINE ASSEMBLY AND SETTING
5-47

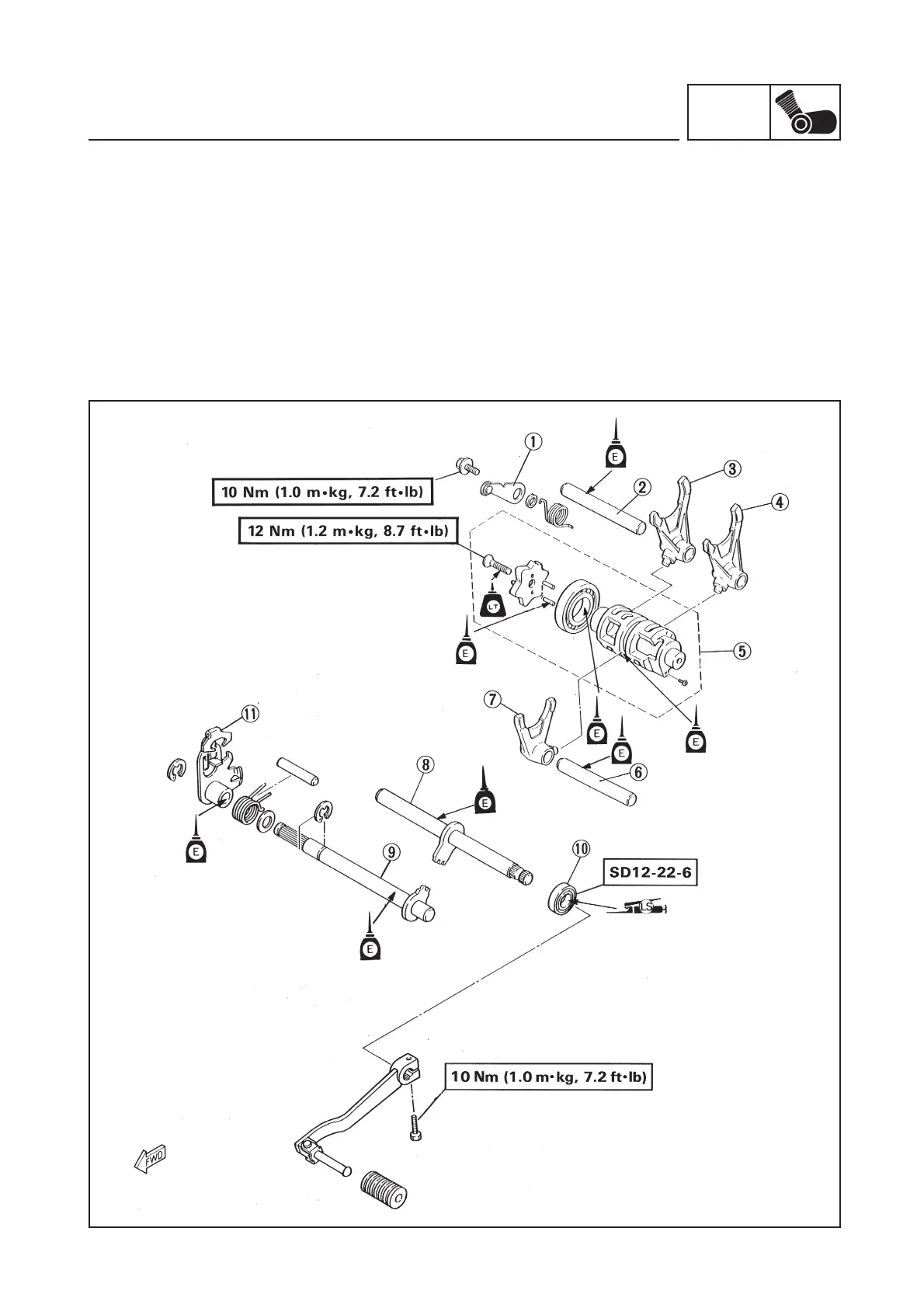

GEARBOX
(1) Stopper lever
(2) Guide bar
(3) Shift fork #3
(4) Shift fork #1
(5) Shift cam
(6) Guide bar
(7) Shift fork #2
(8) Shift shaft #1
(9) Shift shaft #2
(10) Oil seal
(11) Shift lever
