ENG
ENGINE ASSEMBLY AND SETTING
5-65

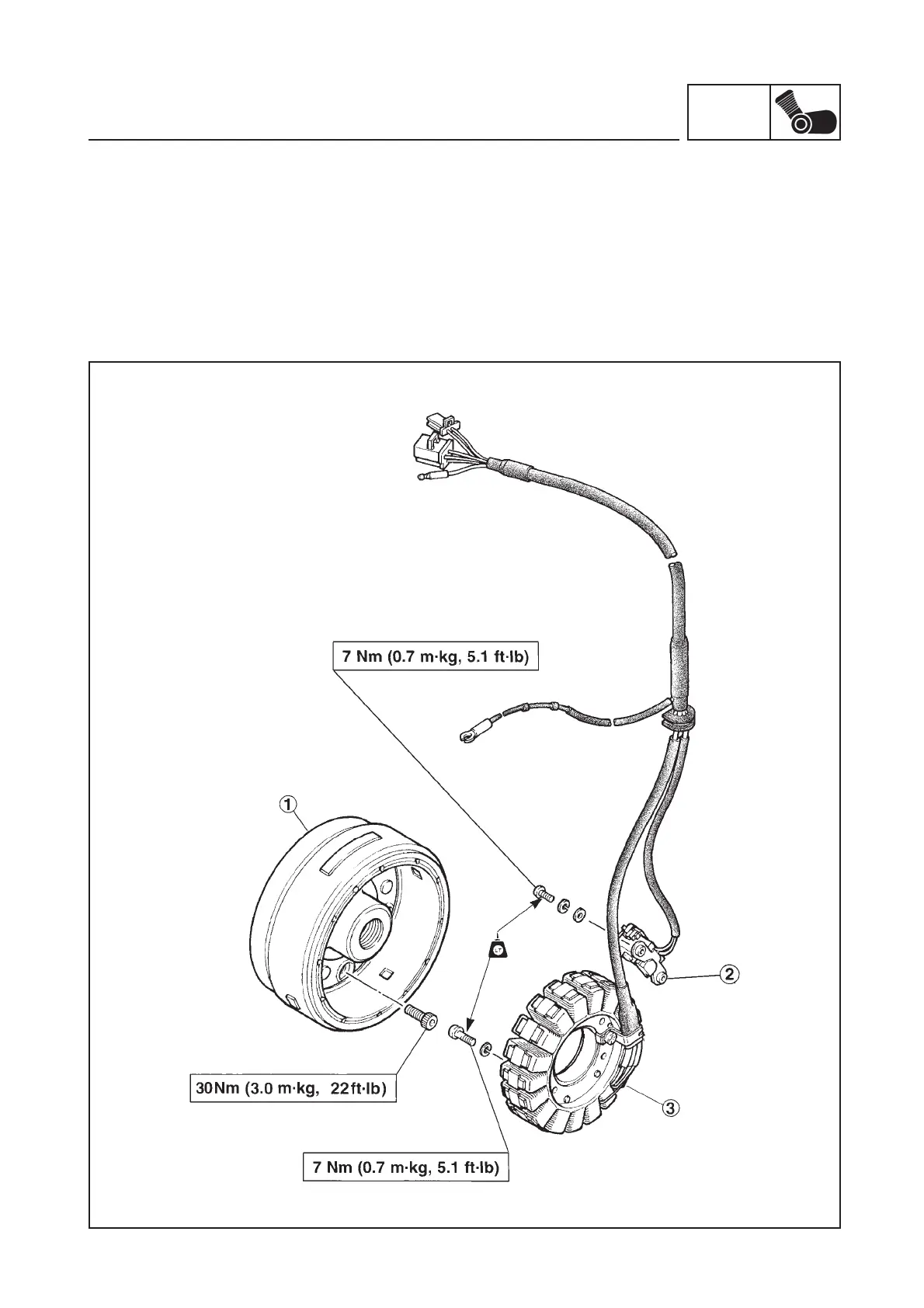

AC GENERATOR
(1) Rotor
(2) Pick-up coil
(3) Stator winding
PICKUP COIL RESISTANCE:
230 Ω ± 20% at 20°C (68°F)
(Blue/Yellow - Green/White)
CHARGING COIL RESISTANCE:
0.65 Ω ± 20% at 20°C (68°F)
(White - White)
