ENG
ENGINE ASSEMBLY AND SETTING
5-59
PISTON, CYLINDER, CYLINDER HEAD AND
CAMSHAFT
1. Apply:
•
4-stroke engine oil
(on piston pin).

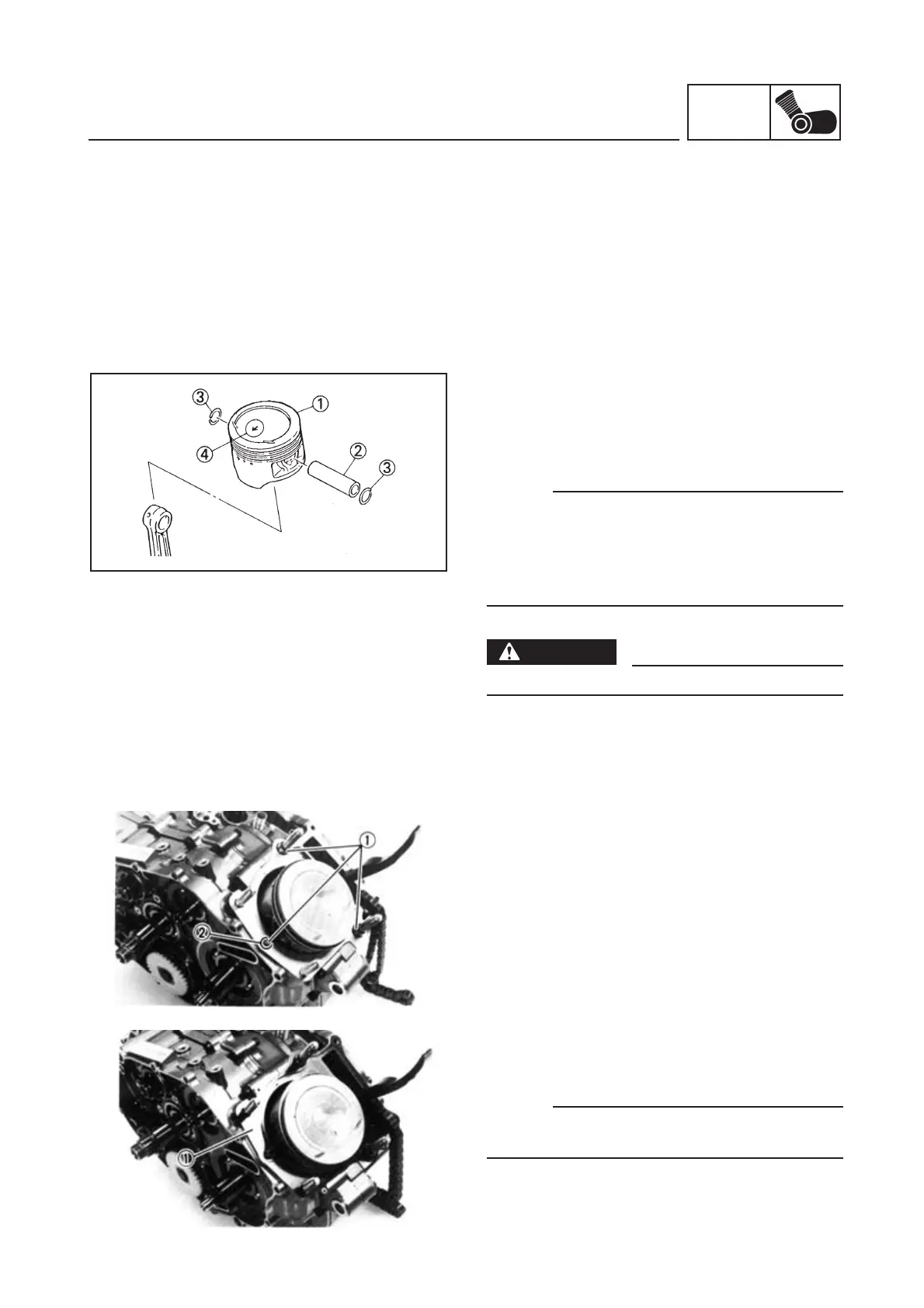

2. Install:
•
Piston (1)
•
Pin (2)
•
Circlip (3)
NOTE:
•
Arrow (4) on the piston must point towards the
front of the engine.
•
Before installing the piston pin circlips, cover
the crankcase with a clean cloth to prevent
foreign bodies falling into it.
WARNING
Always use new circlips for the piston pin.
3. Install:
•
Dowel pins (1)
•
O-Ring (2)
4. Install:
•
Gasket (1) (cylinder)
NOTE:
Install the cylinder gasket as shown in the illustra-
tion.
