FRONT FORK
4-42
CHAS
FRONT FORK

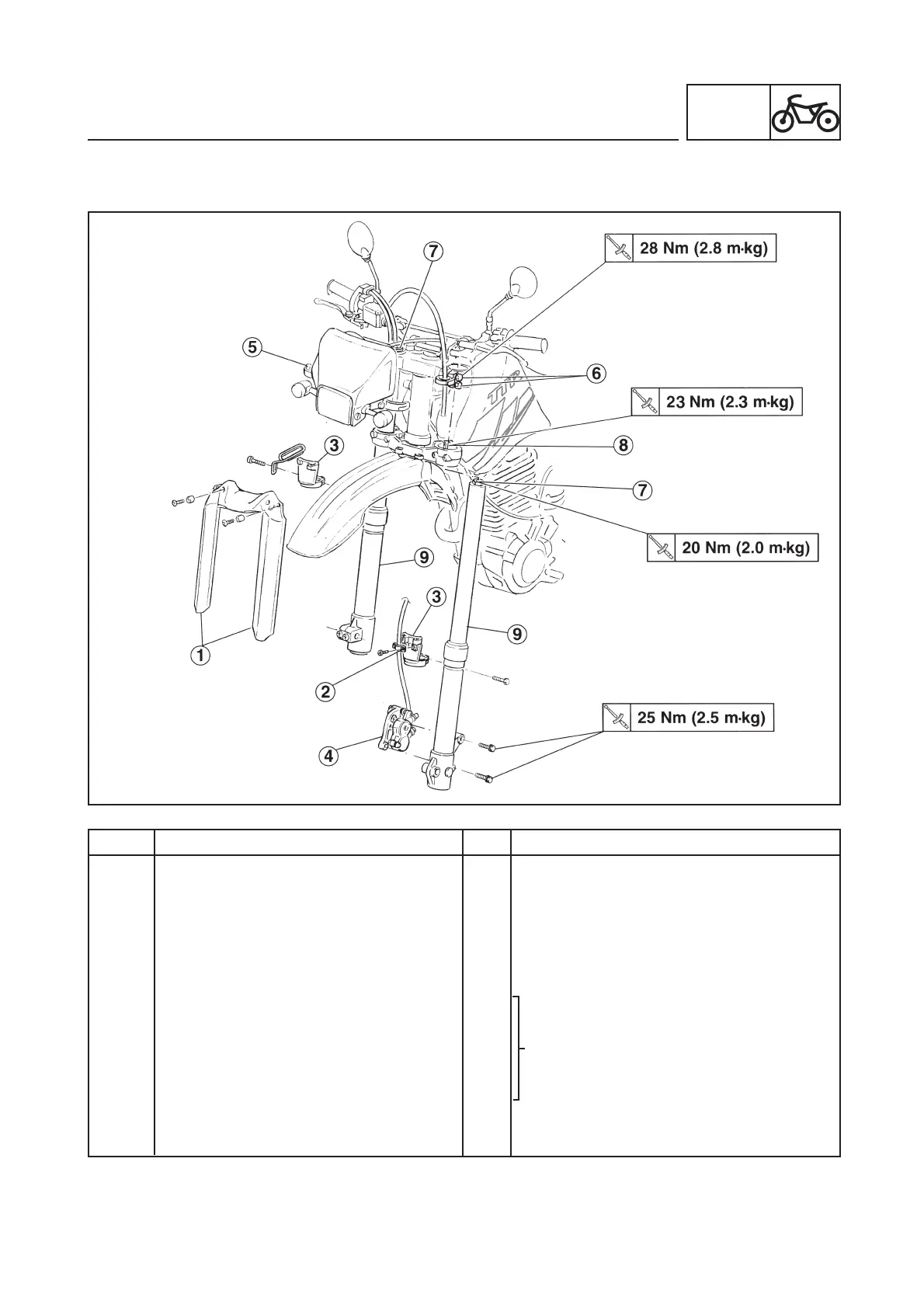

FRONT FORK REMOVAL
Order Job name/Part name Q.ty Remarks
Front fork removal Remove the parts in order.
Front wheel Refer to “FRONT WHEEL” section.
1 Inner tube protector 1
2 Brake hose guide 1
3 Protector guide 2
4 Brake caliper assembly 1
5 Cowling (displace) 1
6 Pinch bolt (upper bracket) 4
7 Cap bolt (loosen) 2
Refer to "FRONT FORK INSTALLATION"
section.
8 Pinch bolt (under bracket) (loosen) 4
9 Fork leg 2
Reverse the removal procedure for instal-
lation.
