ENGINE ASSEMBLY AND SETTING
5-58
ENG

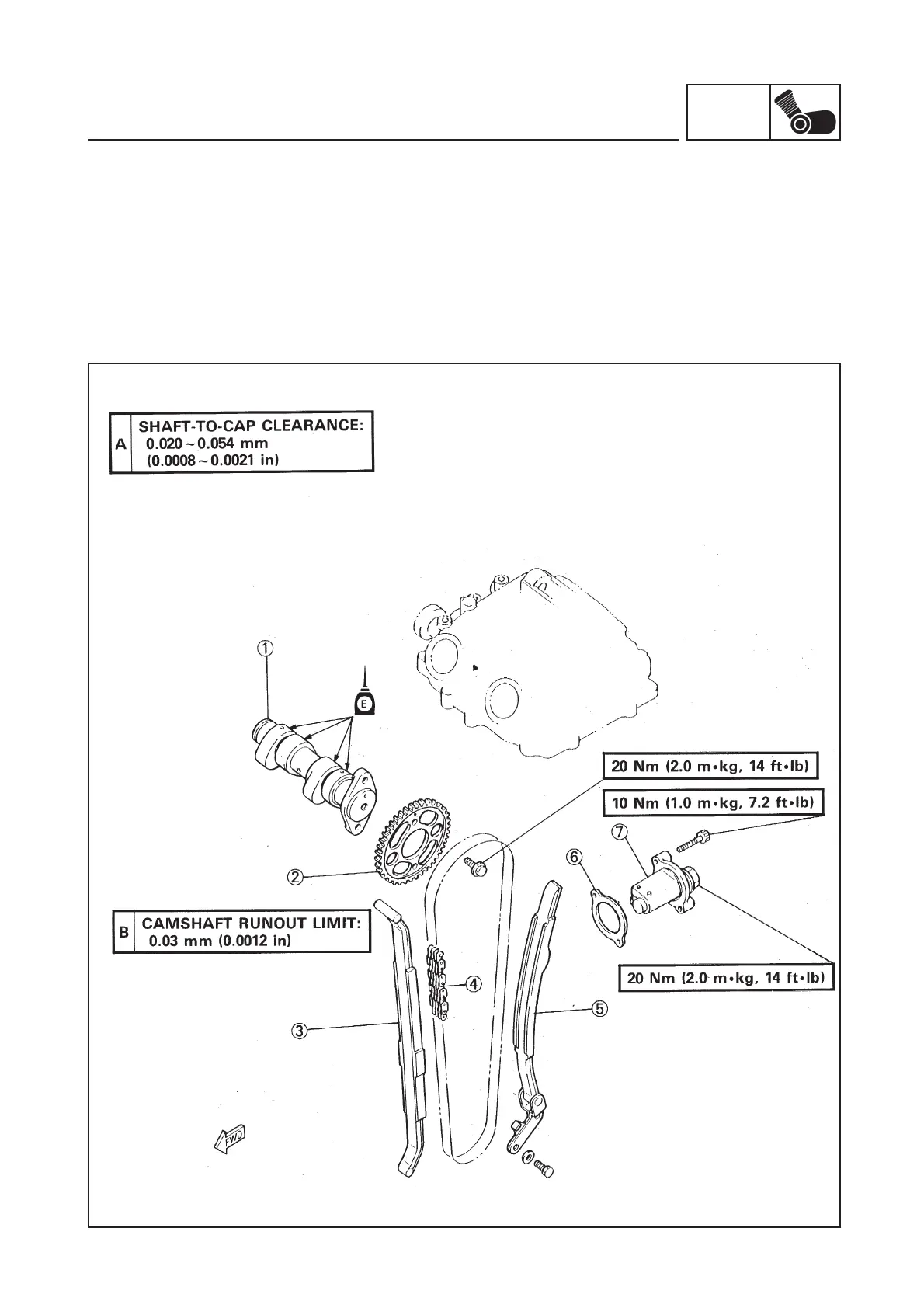

CAMSHAFT AND TIMING CHAIN
(1) Camshaft
(2) Cam chain sprocket
(3) Chain stopper guide
(4) Timing chain
(5) Chain stopper guide
(6) Gasket
(7) Chain tensioner
