ENG
ENGINE DISASSEMBL
Y
5-5
ENGINE DISASSEMBL
Y

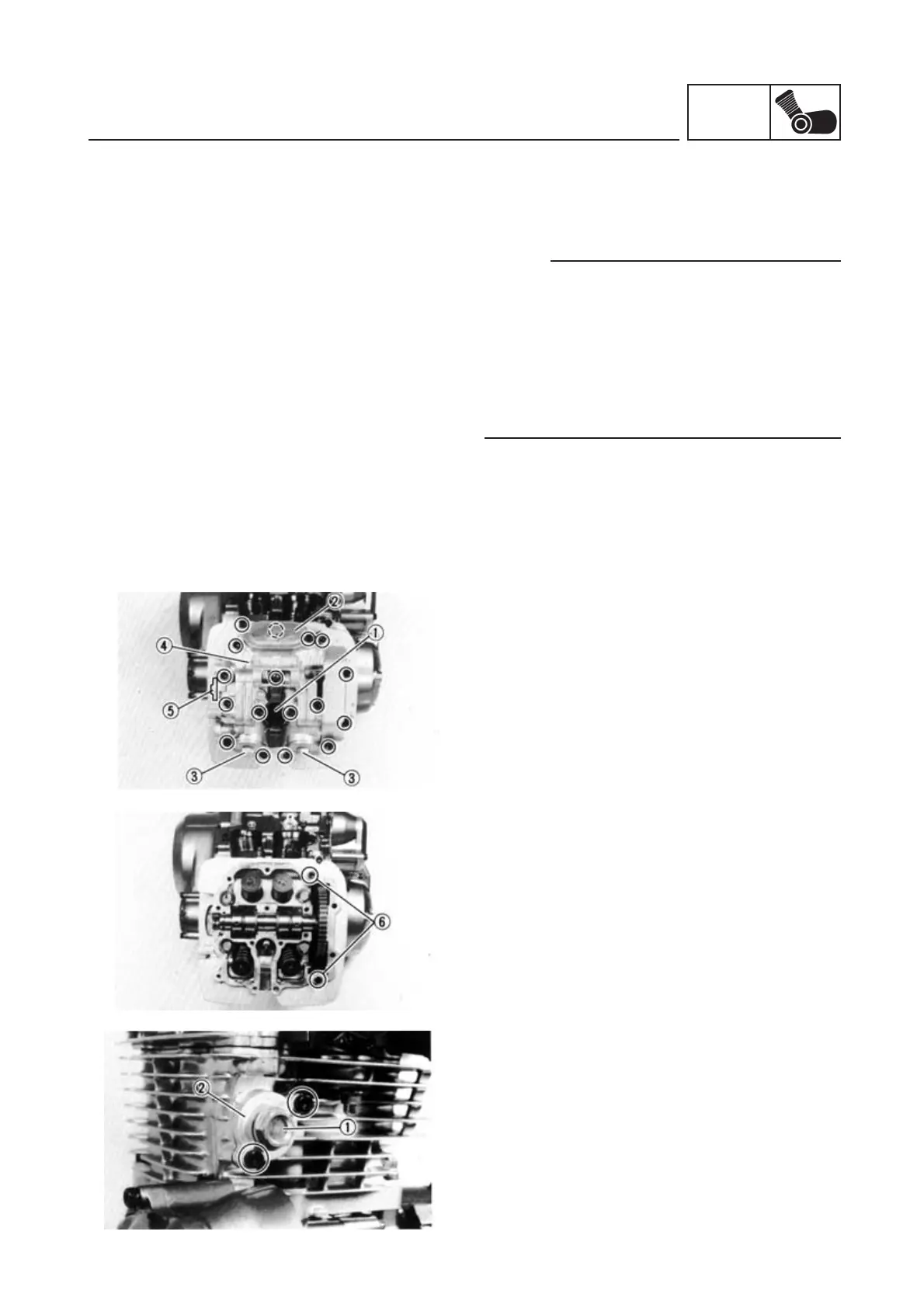

CYLINDER HEAD, CYLINDER, CAMSHAFT
AND PISTON
NOTE:
The cylinder head, cylinder
, camshaft and piston
can be examined with the engine installed by
removing the following parts.
•
Seat
•
Fuel tank
•
Rear cowling
•
Carburetor
•
Exhaust pipe
1.
Remove:
•
Spark plug (1)
•
T
appet cover (2) (intake)
•
T
appet covers (3) (exhaust)
•
Cylinder head cover (4)
•
Cap (5)
•
Pins (6)
2.
Loosen:
•
Bolt (1) (chain tensioner)
3.
Remove:
•
Chain tensioner (2)
208
210
