CHAS

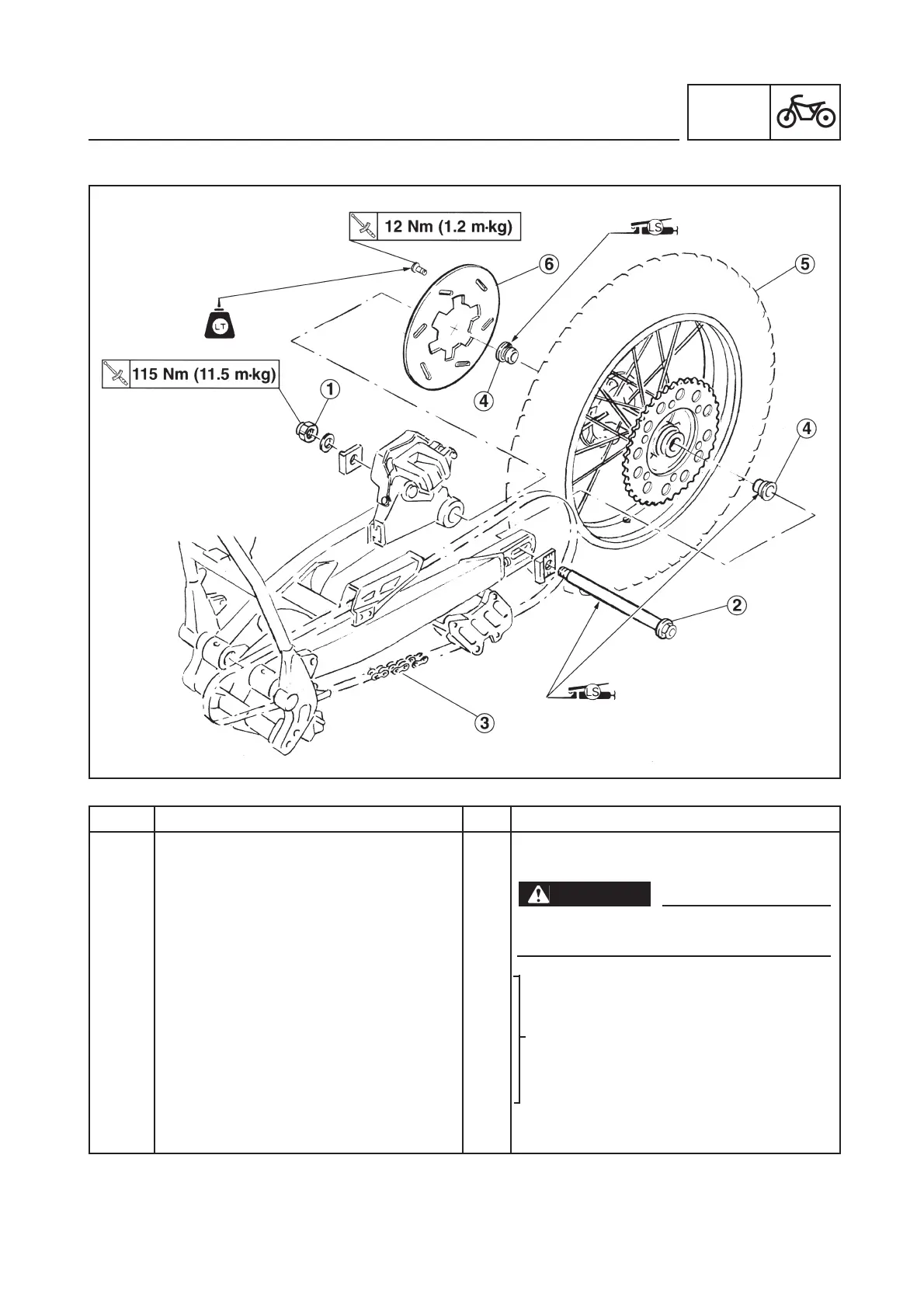

REAR WHEEL AND BRAKE DISC
4-21
REAR WHEEL AND BRAKE DISC
Order
Job name/Part name
Q.ty
Remarks
Rear wheel and brake disc removal
Remove the parts in order
.
WARNING
Securely support the motor
cycle so there
is no danger of it falling over
.
1
Axle nut
1
2
Wheel axle
1
3
Drive chain
-
4
Collar
2
5
Rear wheel assembly
1
6
Brake disc
1
Push the wheel forward and remove the
chain.
Refer to “REAR WHEEL
INST
ALLA
TION”
section.
Reverse the removal procedure for
installation.
