SEAT, FUEL TANK AND REAR COWLING
3-3

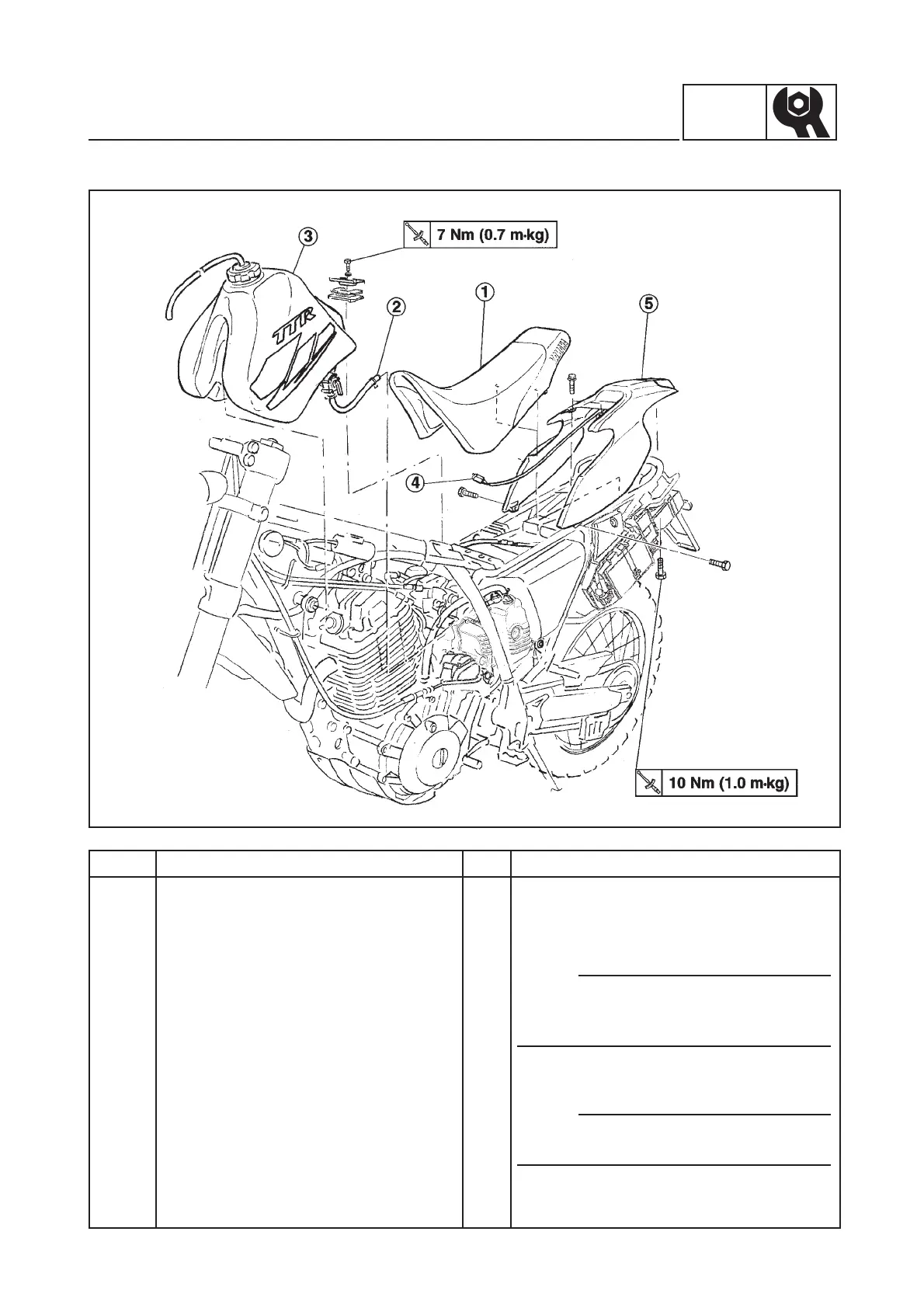

SEAT, FUEL TANK AND REAR COWLING
Order Job name/Part name Q.ty Remarks
Seat, fuel tank and rear cowling Remove the parts in order.
removal
1 Seat 1
2 Fuel pipe 1 NOTE:
Be sure the cap is properly tightened
and the fuel cock is in the “OFF” position
before removing the tank.
3 Fuel tank 1
4 Lamp connector 1 Disconnect.
5 Rear cowling 1 NOTE:
Widen the rear cowling body sides carefully
to extract rear cowling from the chassis.
Reverse the removal procedure for instal-
lation.
To Next Page
