Yamaha TT600RE 2004 - Ac Generator and Timing Chain

ENG
ENGINE DISASSEMBLY
5-13
AC GENERATOR AND TIMING CHAIN
NOTE:
The AC generator may be inspected with the
engine installed by removing the following parts:
•
Crankcase (L)

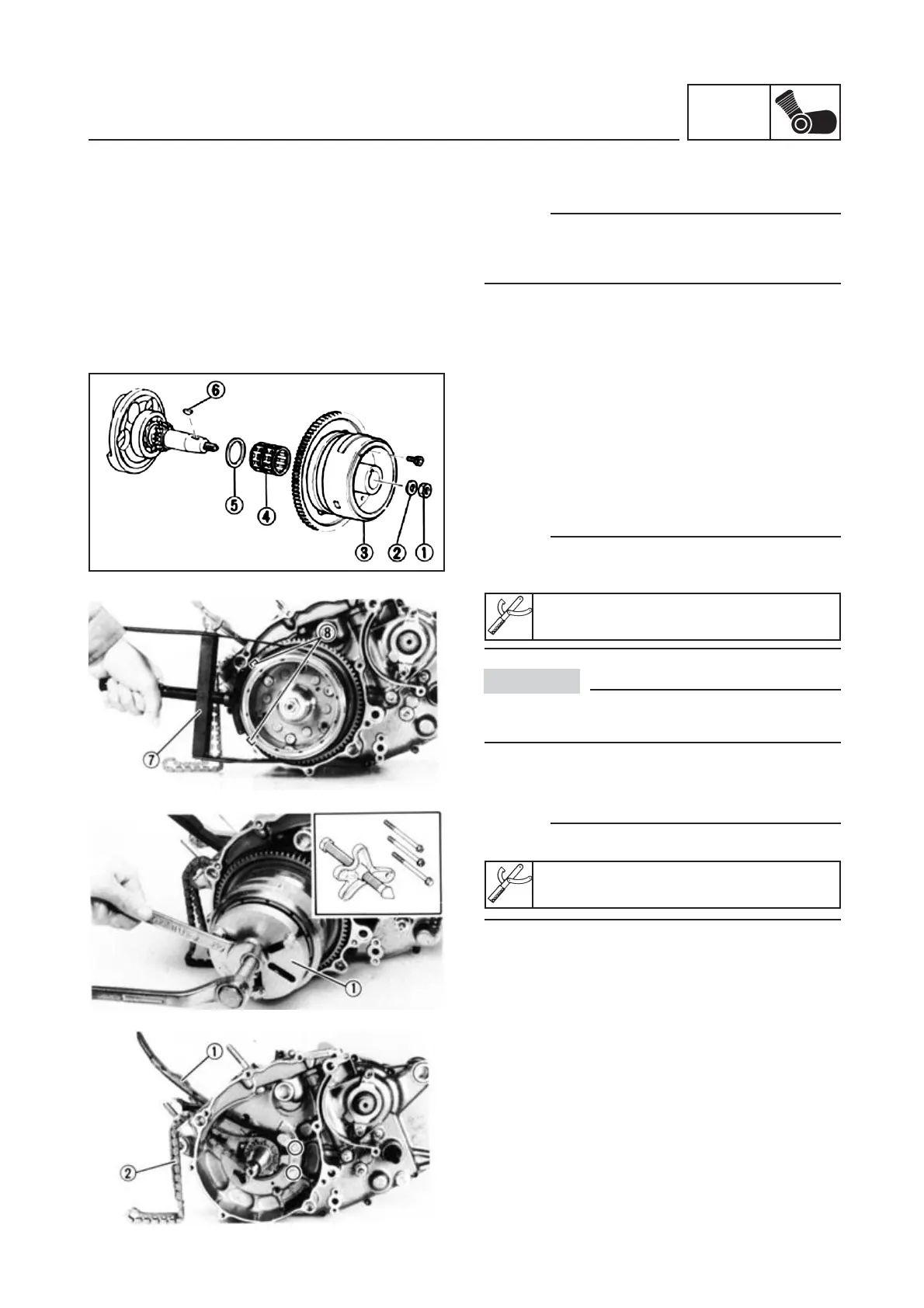

1. Remove:
•
Nut (1)
•
Washer (2)
•
Rotor (3) (with starter gear)
•
Bearing (4)
•
Shim adjustment washer (5)
•
Key (6)
NOTE:
To loosen the nut (rotor), lock the rotor with the
special tool (7).
Sheave holder:
P/N. 90890-01701
Flywheel puller:
P/N. 90890-01362
Be careful not to touch the jutting edges (8) on
the rotor with the special tool.
CAUTION:
NOTE:
Remove the rotor with the puller (1).
2. Remove:
•
Chain guide (1)
•
Timing chain (2)
