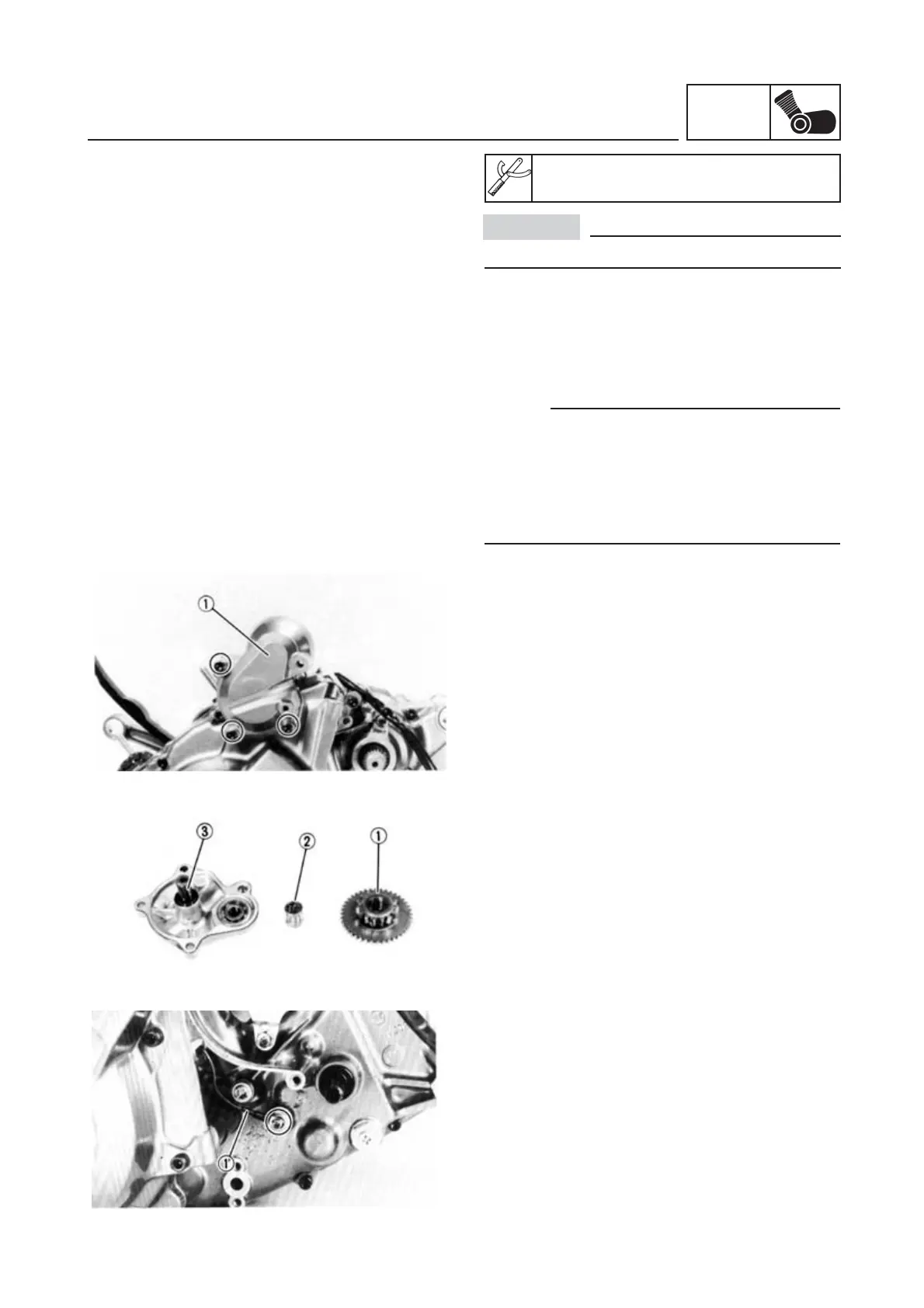

ENGINE DISASSEMBLY
5-8
ENG
Avoid using the hammer to pull the pin out.
CAUTION:
Piston pin puller set:
P/N. 90890-01304
3. Remove:
•
Neutral gear switch cable (1)
2. Remove:
•
Intermediate starter gear (1)
•
Bearing (2)
•
Distributor shaft (3)
INTERMEDIATE STARTER GEAR, CRANKCASE
COVER (L) AND GENERATOR STATOR
NOTE:
With the engine installed, maintenance of the inter-
mediate starter gear and the crankcase cover (L)
may be performed by removing the following parts.
•
Exhaust pipe
•
Starter
•
Sprocket cover
1. Remove:
•
Cover (1) intermediate starter gear
•
Centring pins
•
Gasket
To Next Page
