DRIVE CHAIN, DRIVE SPROCKET
AND REAR WHEEL SPROCKET
4-82
CHAS
DRIVE CHAIN, DRIVE SPROCKET AND
REAR WHEEL SPROCKET
NOTE:
Before removing the drive chain, drive sprocket
and rear wheel sprocket, it is necessary to meas-
ure the free play and length of the 10 links in the
chain.
DRIVE CHAIN REMOVAL
1. Park the motorcycle upright on an even sur-
face.

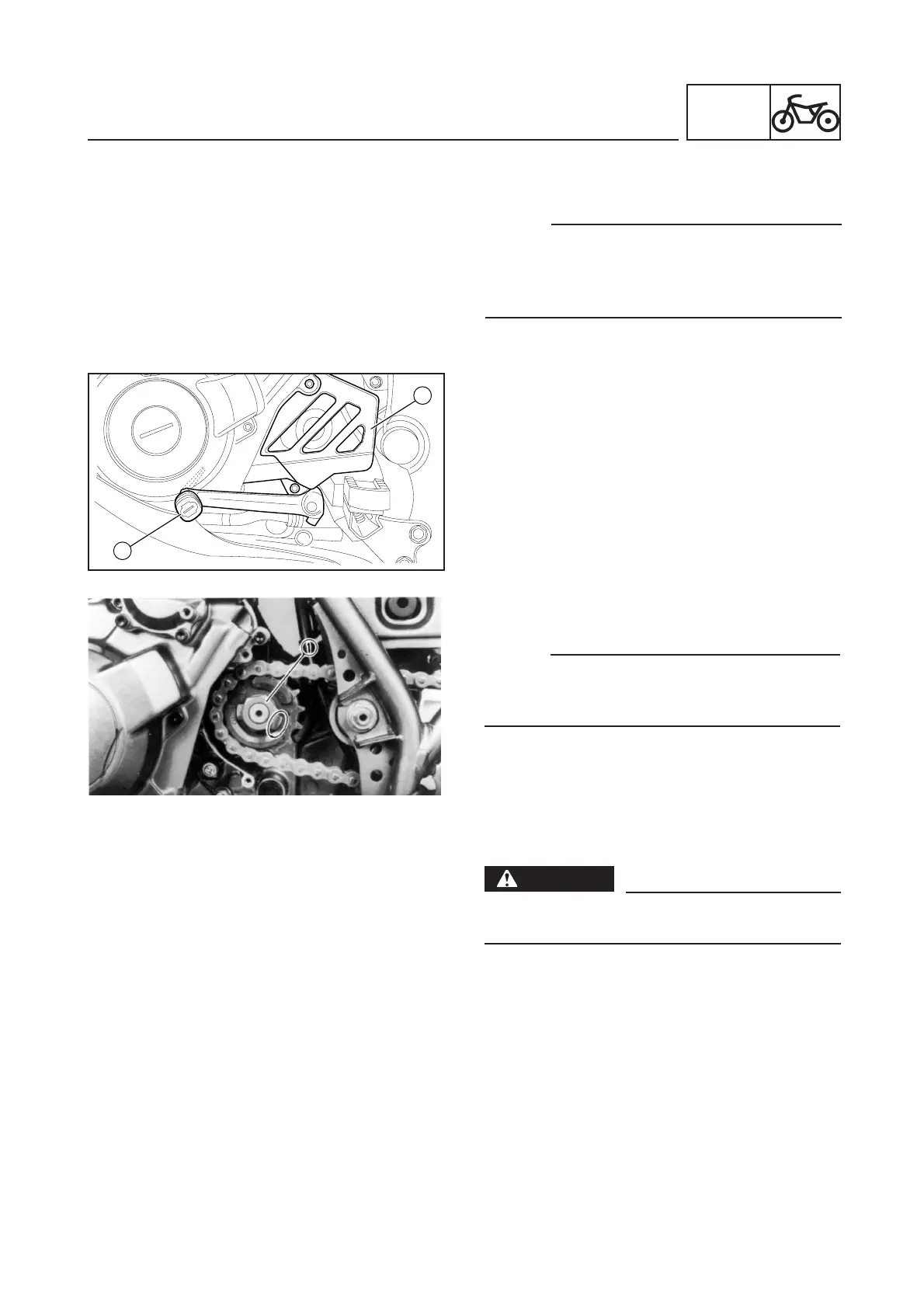

2. Remove:
•
Shift pedal (1)
•
Cover (2) (drive sprocket)
3. Remove:
•
Drive sprocket (1)
NOTE:
•
Before removing the sprocket nut, straighten
the tab on the lock washer.
•
Loosen the nut with the rear brake pulled.
4. Raise the rear wheel placing a suitable sup-
port under the engine.
WARNING
Set the motorcycle up securely to prevent it
falling over.
5. Remove:
•
Rear wheel
•
Rear wheel sprocket
•
Hub
•
Damper
•
Spacer
Refer to “REAR WHEEL REMOVAL” sec-
tion.
