ENGINE ASSEMBL
Y AND SETTING
5-70
ENG

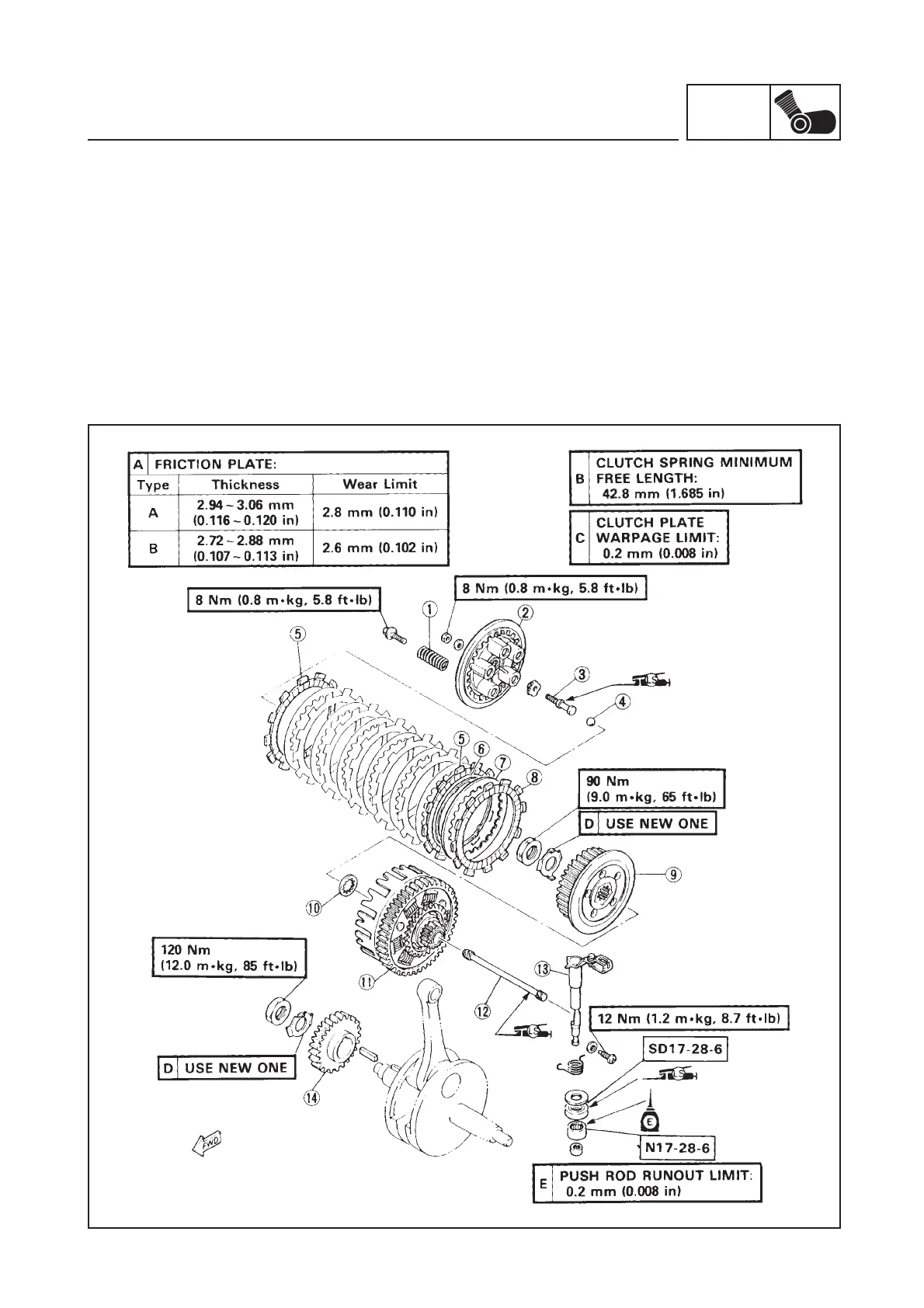

CLUTCH
(1)
Compression spring
(2)
Pressure plate
(3)
Push rod
(4)
Ball
(5)
Friction plate (type
A)
(6)
Clutch boss spring
(7)
Clutch plate
(8)
Friction plate (type B)
(9)
Clutch boss
(10)
Thrust plate
(1
1)
Primary driven gear
comp.
(12)
Push rod
(13)
Push lever
(14)
Primary drive gear
273
275
