INSPECTION AND REP
AIR
5-40
ENG

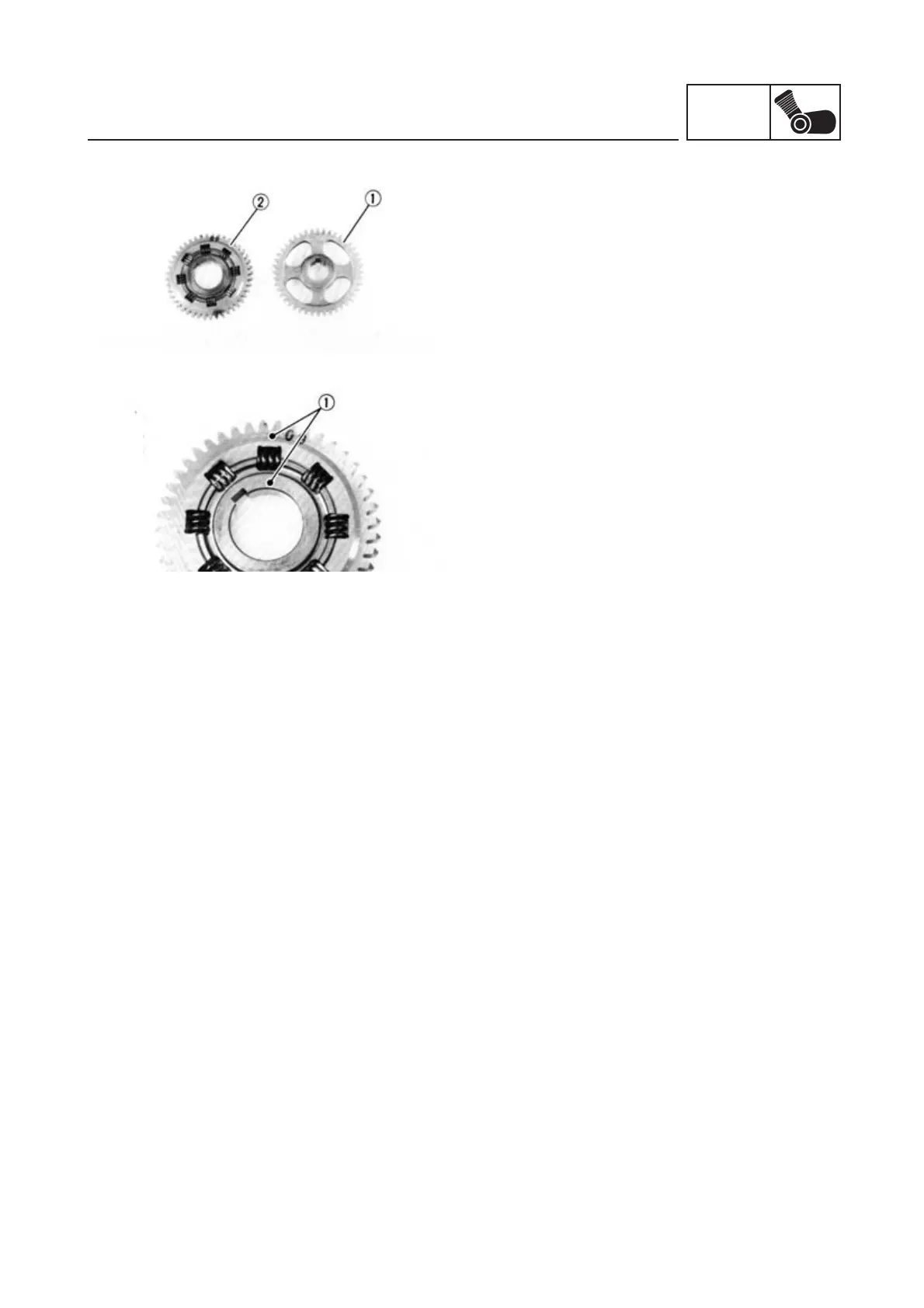

BALANCER SHAFT DRIVE AND DRIVEN
GEARS
1.
Inspect:
•
Drive gear teeth (1)
•
Driven gear teeth (2)
Wear/damage
➔
Replace both gears.
2.
Check:
•
Marks (1)
If they are not aligned
➔
Align the marks
as shown in the figure.
CRANKCASE
1.
Inspect:
•
Crankcase
•
Bearing housing
Damaged
➔
Replace.
BEARING AND OIL SEAL
1.
Inspect:
•
Bearing
Roughness/Pitting/Damage
➔
Replace.
•
Oil seal edge
Damage/Wear
➔
Replace.
