REAR BRAKE
4-36
CHAS

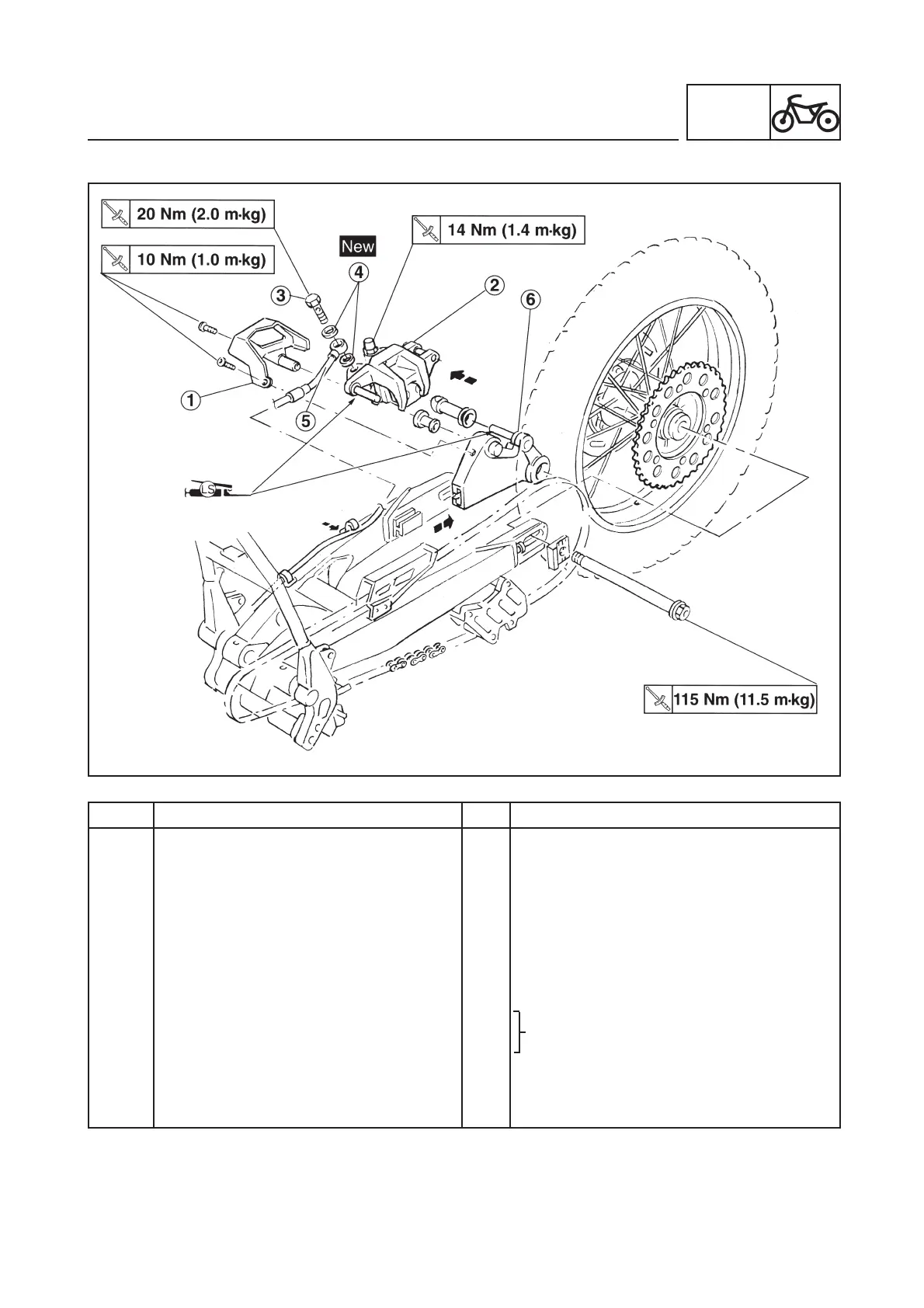

BRAKE CALIPER
Order Job name/Part name Q.ty Remarks
Caliper removal Remove the parts in order.
Rear wheel Refer to “REAR WHEEL REMOVAL” sec-
tion.
Brake fluid Drain.
Brake hose Remove from clamp.
1 Caliper protector 1
2 Brake caliper 1 Remove from caliper support.
3 Union bolt 1
Refer to “BRAKE CALIPER INSTALLA-
4 Plain washer 2
TION” section.
5 Brake hose 1
6 Brake pad support 1
Reverse the removal procedure for installa-
tion.
