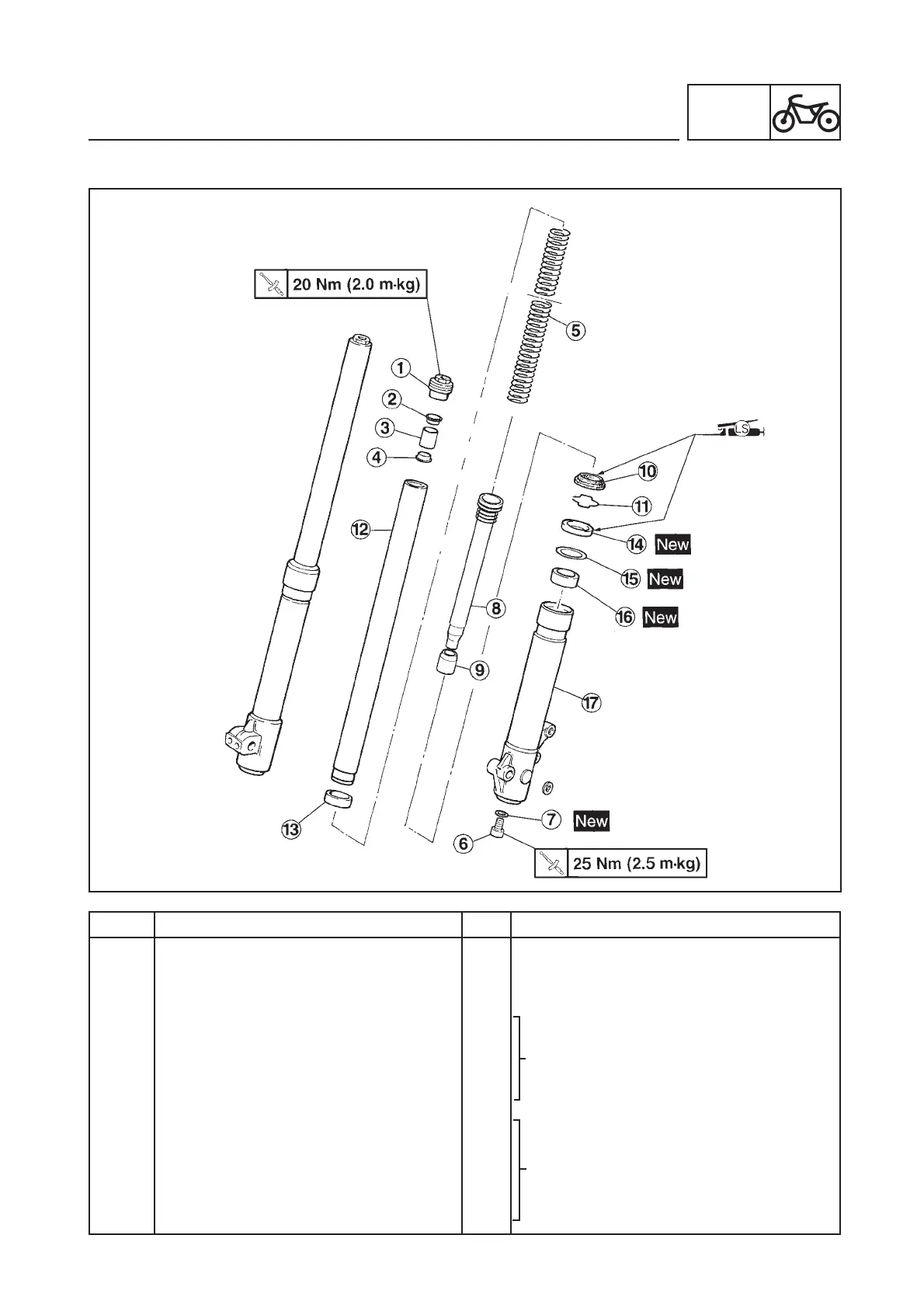

FRONT FORK
4-43
Order Job name/Part name Q.ty Remarks
Front fork disassembly Remove the parts in order.
Refer to “FRONT FORK REMOVAL/INSTAL-
LATION”.
1 Cap bolt 1
2 Seat 1
3 Spacer 1 Refer to “OIL REPLACEMENT” section.
4 Seat 1
5 Fork spring 1
6 Bolt 1
7 O-ring 1
8 Damper adjusting cylinder 1 Refer to “SEAL AND BUSH REPLACE-
9 Taper spindle 1 MENT” section.
10 Dust seal 1
11 Snap ring 1
