FRONT WHEEL AND BRAKE DISC
4-3

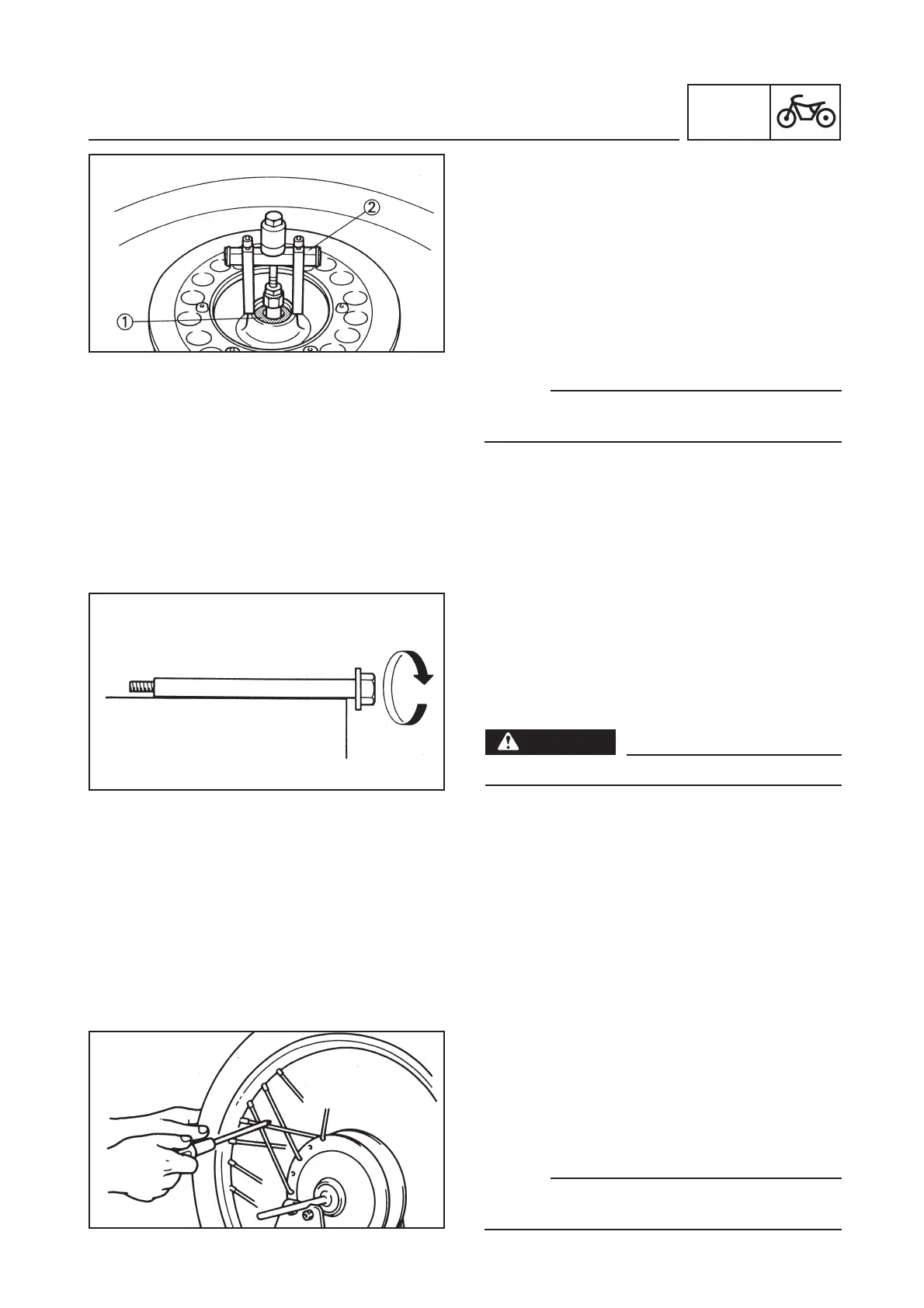

FRONT WHEEL DISASSEMBLY
1. Remove:
•
Oil seal
•
Bearing (1)
•
Spacer
Removal procedure:
•
Clean the outside of the hub.
•
Remove the dust cover with a flat-headed
screwdriver.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
•
Disassemble the bearing (1) with a normal
puller (2).
NOTE:
Place a rag on the outside to avoid damaging the
hub.
FRONT WHEEL INSPECTION
1. Inspect:
•
Front wheel axle
(by rolling it on a flat surface)
Bends ➔ Replace.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
WARNING
Do not attempt to straighten a bent axle.
2. Inspect:
•
Front tire
Wear/damage ➔ Replace.
Refer to “TIRE INSPECTION” in CHAP-
TER 3.
•
Front wheel
Refer to “WHEEL INSPECTION” in
CHAPTER 3.
3. Inspect:
•
Spoke(s)
Bent/Damaged ➔ Replace.
Loose spoke(s) ➔ Tighten.
Turn the wheel and hit the spokes gently
with a screwdriver.
NOTE:
A well tightened spoke makes a distinct, sharp
noise: a loose spoke makes a dull, muffled noise.
