5-48
ENG

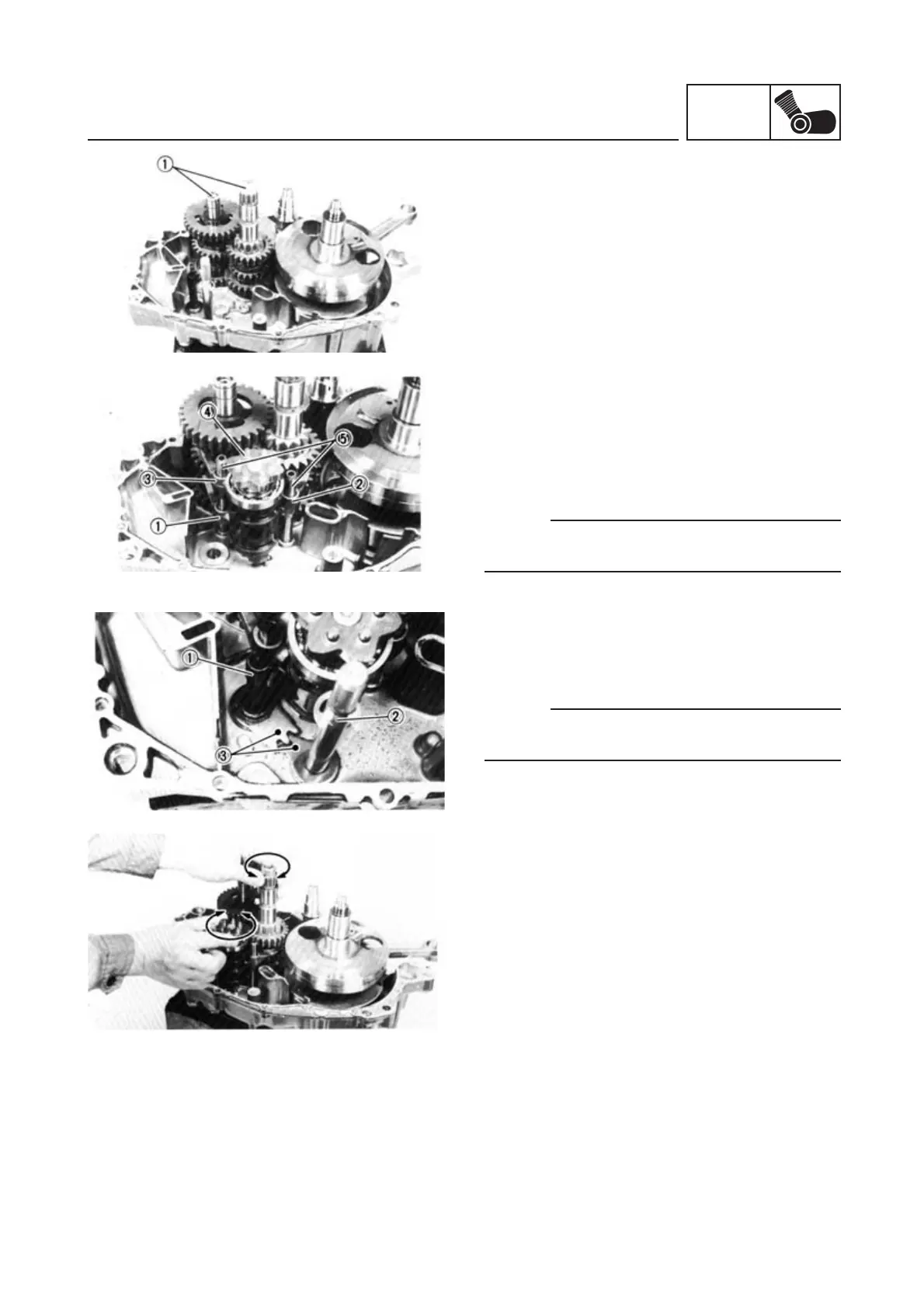

ENGINE ASSEMBLY AND SETTING
TRANSMISSION AND GEARBOX
1. Install:
•
Transmission assembly (1)
2. Install:
•
Shift fork #1 (1)
•
Shift fork #2 (2)
•
Shift fork #3 (3)
•
Shift cam (4)
•
Guide bar (5)
NOTE:
Each shift fork is identified by the number
stamped on its side. All numbers must face left.
3. Install:
•
Shift shaft #1 (1)
•
Shift shaft #2 (2)
NOTE:
Align mark (3) on the shift lever shaft with that on
the shift shaft.
4. Check:
•
Transmission functioning
Jerky functioning ➔ Repair.
