2-19
GENERAL TORQUE SPECIFICATIONS
This chart specifies torque for standard fasteners
with standard I.S.O. pitch threads. Torque specifi-
cations for special components or assemblies are
provided for each chapter of this manual. To avoid
warpage, tighten multi-fastener assemblies in a
crisscross fashion, in progressive stages, until the
specified torque is reached. Unless otherwise
specified, torque specifications require clean, dry
threads. Components should be at room tempera-
ture.

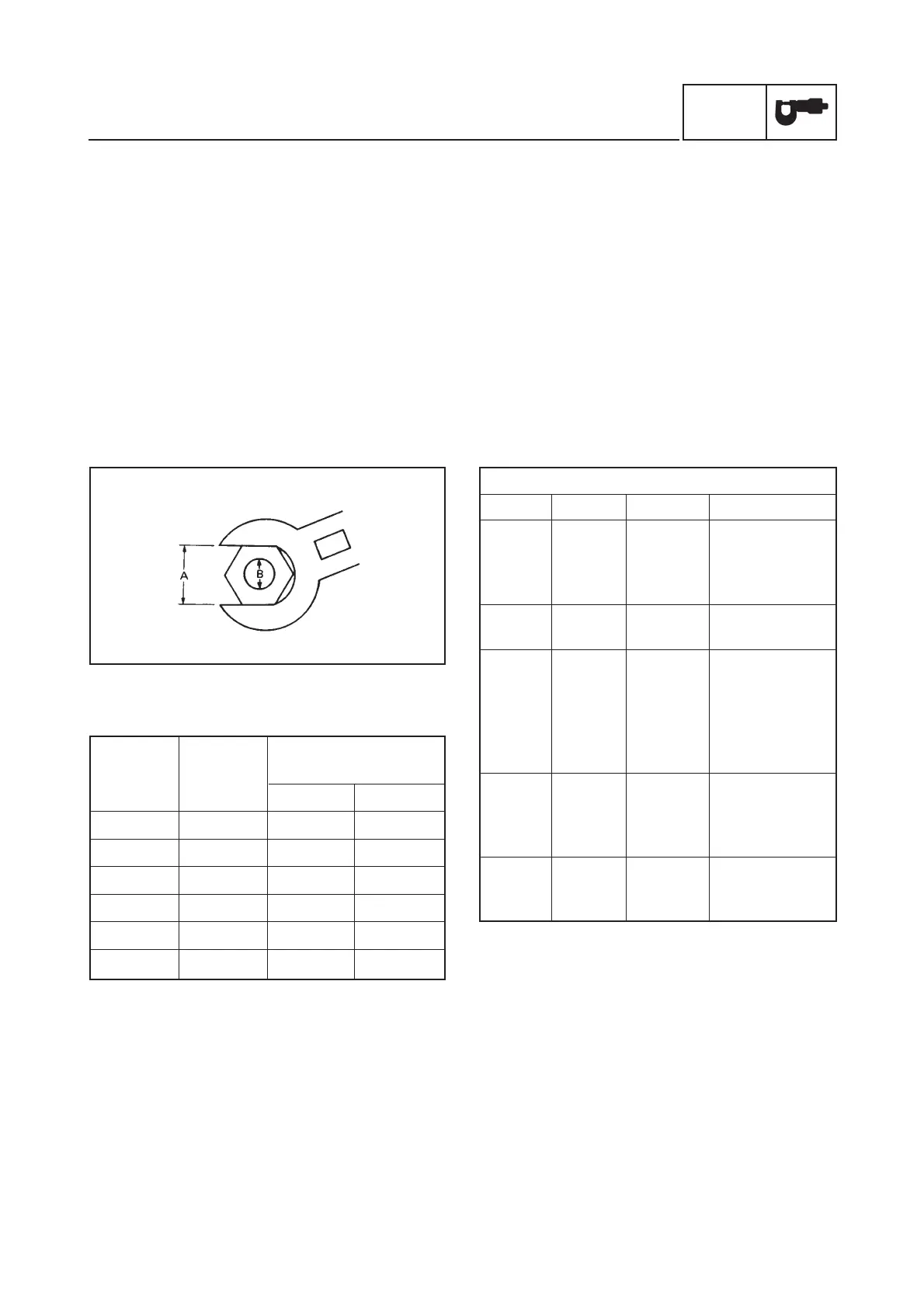

A: Distance between flats
B: Outside thread diameter
AB
General torque
(nut) (Bolt)
specifications
N·m m·kg
10 mm 6 mm 6 0.6
12 mm 8 mm 15 1.5
14 mm 10 mm 30 3.0
17 mm 12 mm 55 5.5
19 mm 14 mm 85 8.5
22 mm 16 mm 130 13.0
CONVERSION TABLE
All specification data in this manual are listed in SI
and METRIC UNITS. Use this table to convert
METRIC unit data to IMPERIAL unit data.
Ex.
METRIC MULTIPLIER IMP
** mm 0.03937 = ** in
2 mm 0.03937 = 0.08 in
CONVERSION TABLE
METRIC TO IMP
Known Multiplier Result
m·kg 7.233 ft·lb
Torque
m·kg 86.794 in·lb
cm·kg 0.0723 ft·lb
cm·kg 0.8679 in·lb
Weight
kg 2.205 lb
g 0.03527 oz
km/hr 0.6214 mph
km 0.6214 mi
Distance
m 3.281 ft
m 1.094 yd
cm 0.3937 in
mm 0.03937 in
cc (cm
3
) 0.03527 oz (IMP liq.)
Volume/ cc (cm
3
) 0.06102 cu·in
Capacity lt (liter) 0.8799 qt (IMP liq.)
lt (liter) 0.2199 gal (IMP liq.)
Miscel-
kg/mm 55.997 lb/in
laneous
kg/cm
2
14.2234 psi (lb/in
2
)
Centigrade 9/5 (°C) + 32 Fahrenheit (°F)
SPEC
GENERAL TORQUE SPECIFICATIONS/
CONVERSION TABLE
