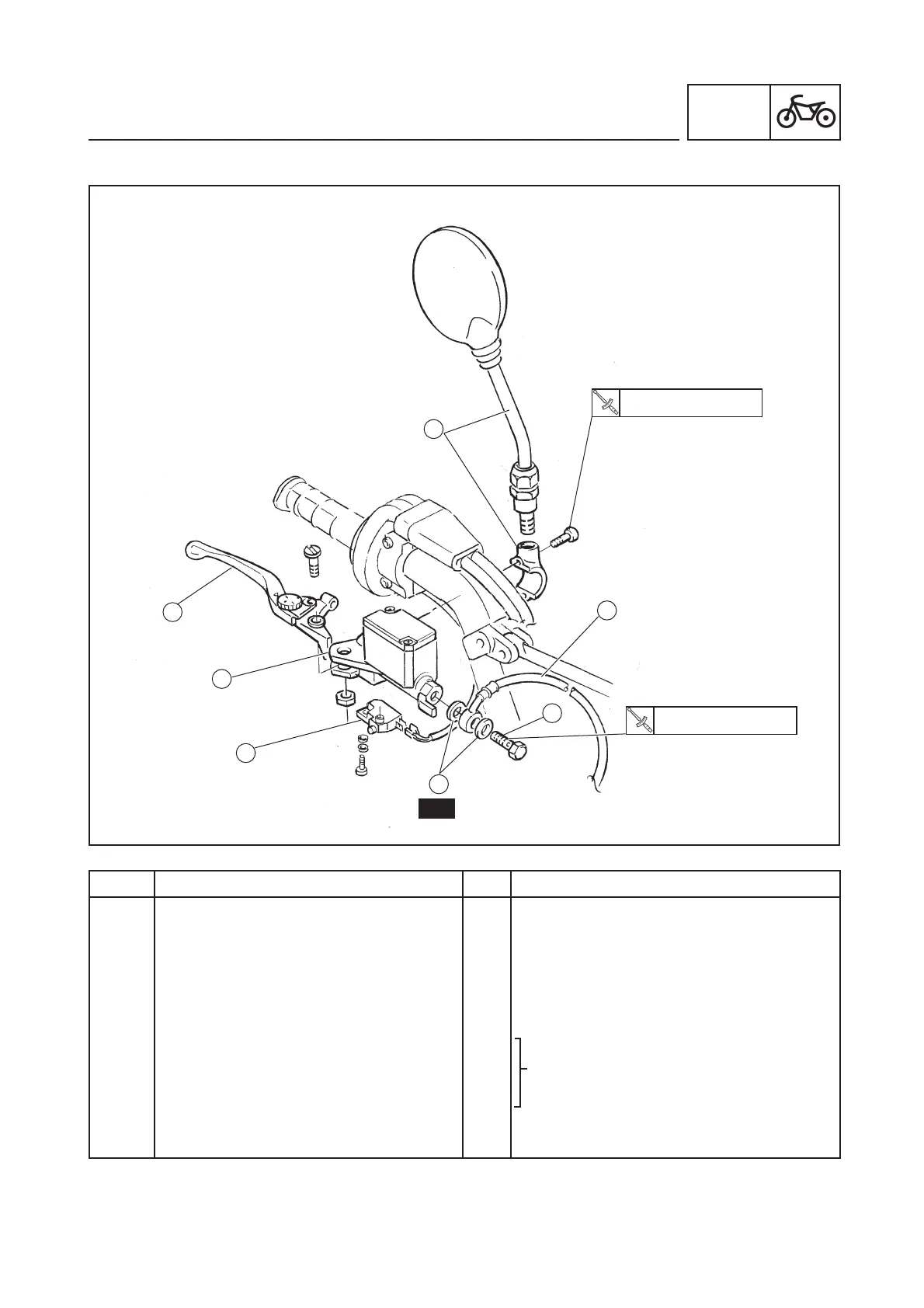

CHAS
FRONT BRAKE
4-11
MASTER CYLINDER
Order
Job name/Part name
Q.ty
Remarks
Master cylinder removal
Remove the parts in order
.
Brake fluid
Drain.
1
Rear view mirror (right)/
Master cylinder bracket
1/1
2
Brake lever
1
3
Brake switch
1
4
Union bolt
1
5
Plain washer
2
Refer to “MASTER CYLINDER INST
AL-
6
Brake hose
1
LA
TION” section.
7
Master cylinder
1
Reverse the removal procedure for instal-
lation.
2
6
4
7
1
9 Nm (0.9 m
•
kg)
20 Nm (2.0 m
•
kg)
3
5
New
125
127
