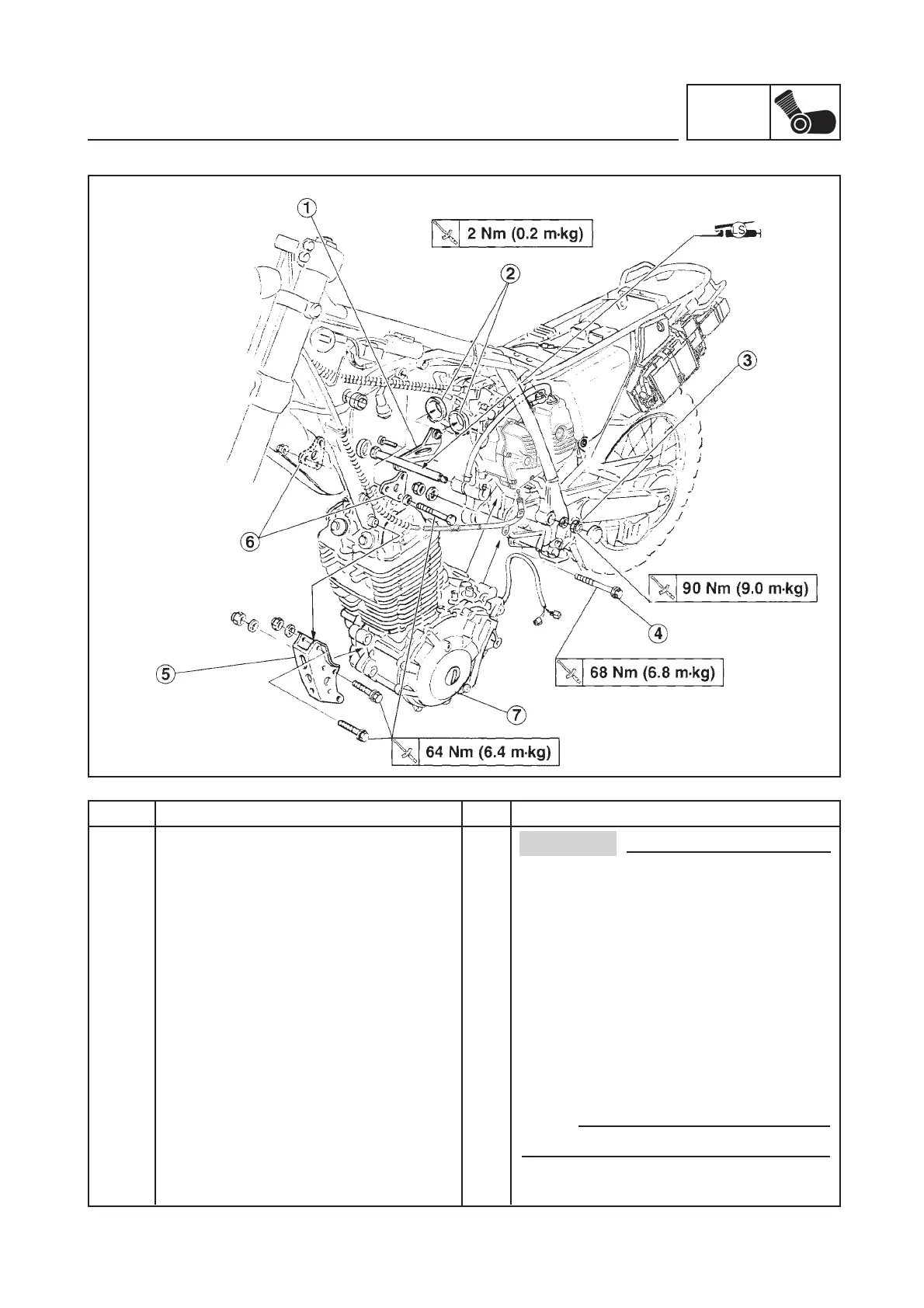

ENGINE REMOVAL
5-4
ENG
Order Job name/Part name Q.ty Remarks
The engine and rear arm are assembled
together on the rear pivot shaft. When
removing the pivot shaft, it is thus
necessary to pay special care with the
rear arm.
1 Stay of oil tank – Remove the mounting screws (to engine).
2 Hose clamp (carburetor) 2 Loosen.
3 Pivot shaft (rear - top) 1
4 Engine mounting bolt 1
(rear - lower)
5 Engine stay
(front - lower) 1
6 Engine stay
(front - top/right/left) 1
7 Engine assembly 1
CAUTION:
ENGINE MOUNTING BOLT
NOTE:
Remove the engine from the lower side.
Reverse the removal procedure for
installation.
To Next Page
