CHAS
4-61

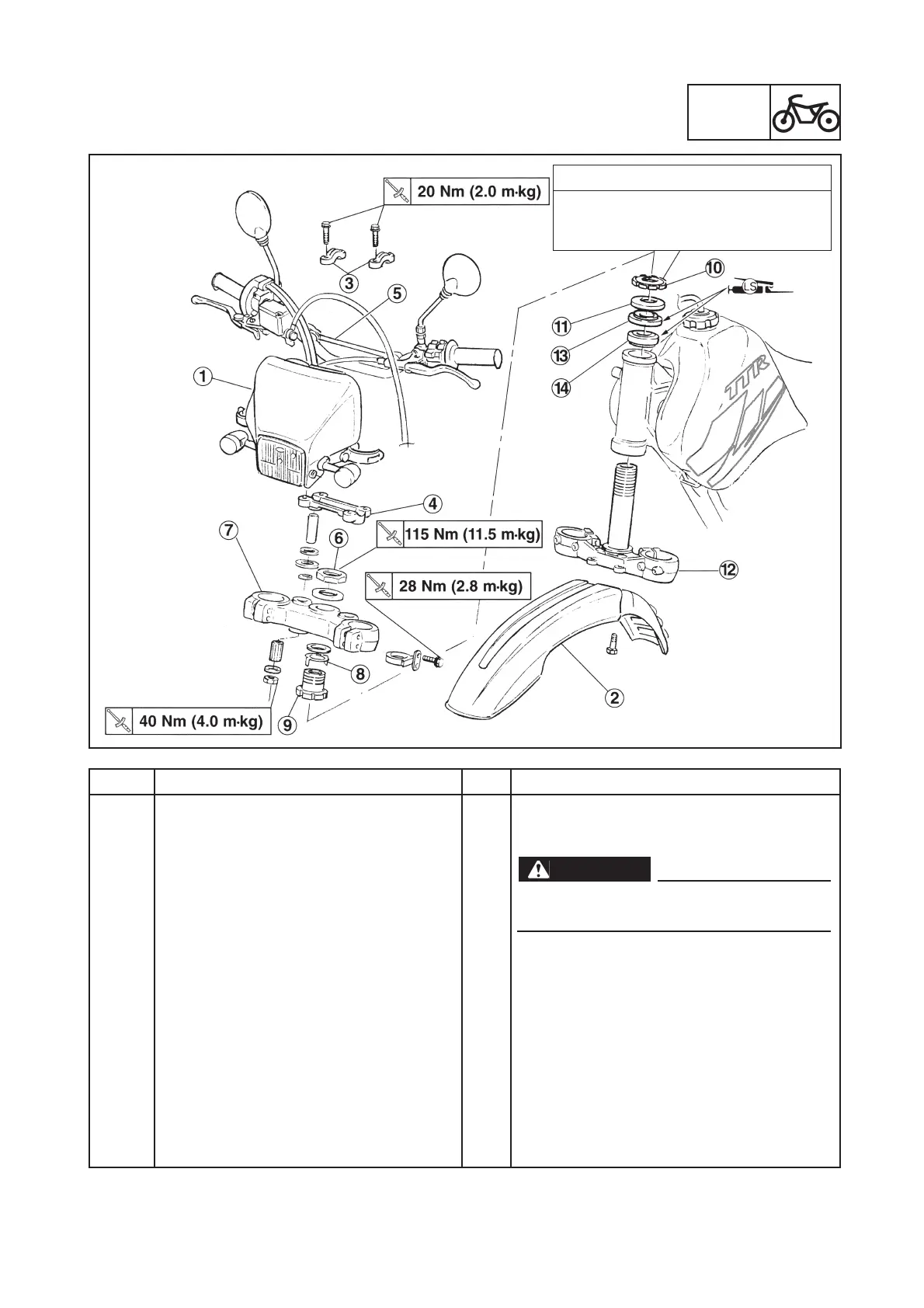

STEERING
Order Job name/Part name Q.ty Remarks
Steering removal Remove the parts in order.
Park the motorcycle on a level surface.
WARNING
Securely support the motorcycle to pre-
vent it falling over.
Front wheel Refer to “FRONT WHEEL REMOVAL” sec-
tion.
Fork legs Refer to “FRONT FORK” section.
1 Cowling/Meter unit 1 Displace.
2 Front fender 1
3 Handle upper holder 2
4 Handle lower holder 1
5 Handlebar 1 Displace.
6 Nut 1
7 Upper bracket 1
8 Special washer 1
TIGHTENING PROCEDURE
• Initial tightening 38 Nm (3.8 mkg)
• Loosen 1 turn
• Final tightening 4 Nm (0.4 mkg)
To Next Page
