ENGINE OIL TANK FILTER CLEANING
3-26
INSP
ADJ
ENGINE OIL TANK FILTER CLEANING
WARNING
Securely support the motorcycle so there is
no danger of it falling over.
1. Drain:
•
Engine oil
See section “ENGINE OIL REPLACE-
MENT”.
2. Remove:
•
Seat
•
Rear cowling
See section “SEAT, FUEL TANK AND
REAR COWLING”.
•
Rear wire harness
•
Exhaust muffler
•
Exhaust pipe
•
Rear shock absorber
See section “REAR SHOCK ABSORBER”
in Chapter 4.
•
Joint air cleaner clamps
•
Rear frame
•
Engine oil tank
3. Loosen:
•
Stay (rear left side cover) fastening
screws
4. Remove:
•

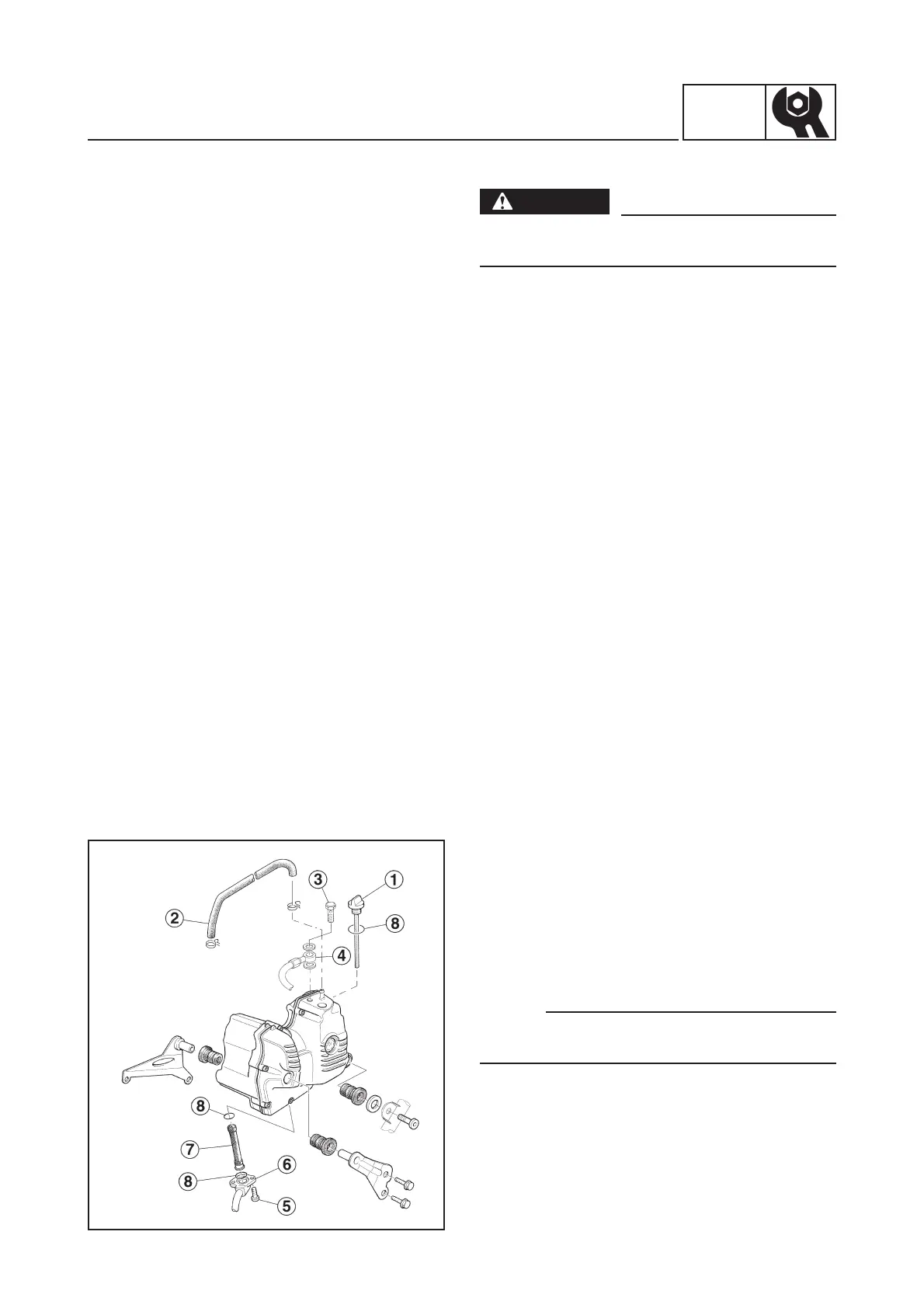

Oil tank cap (1)
•
Oil return hose (2)
•
Oil return hose flange (4) fastening screw
(3)
•
Oil delivery hose flange (6) fastening
screws (5)
•
Oil tank filter (7)
•
OR gaskets (8)
5. Clean:
•
Oil tank filter (with solvent)
•
Oil tank (with solvent)
NOTE:
After cleaning the inside of the oil tank, remove
the remaining solvent.
6. Inspect:
•
OR gaskets
Damaged ➔ Replace.
To Next Page
