CHAS
SWINGARM
4-79

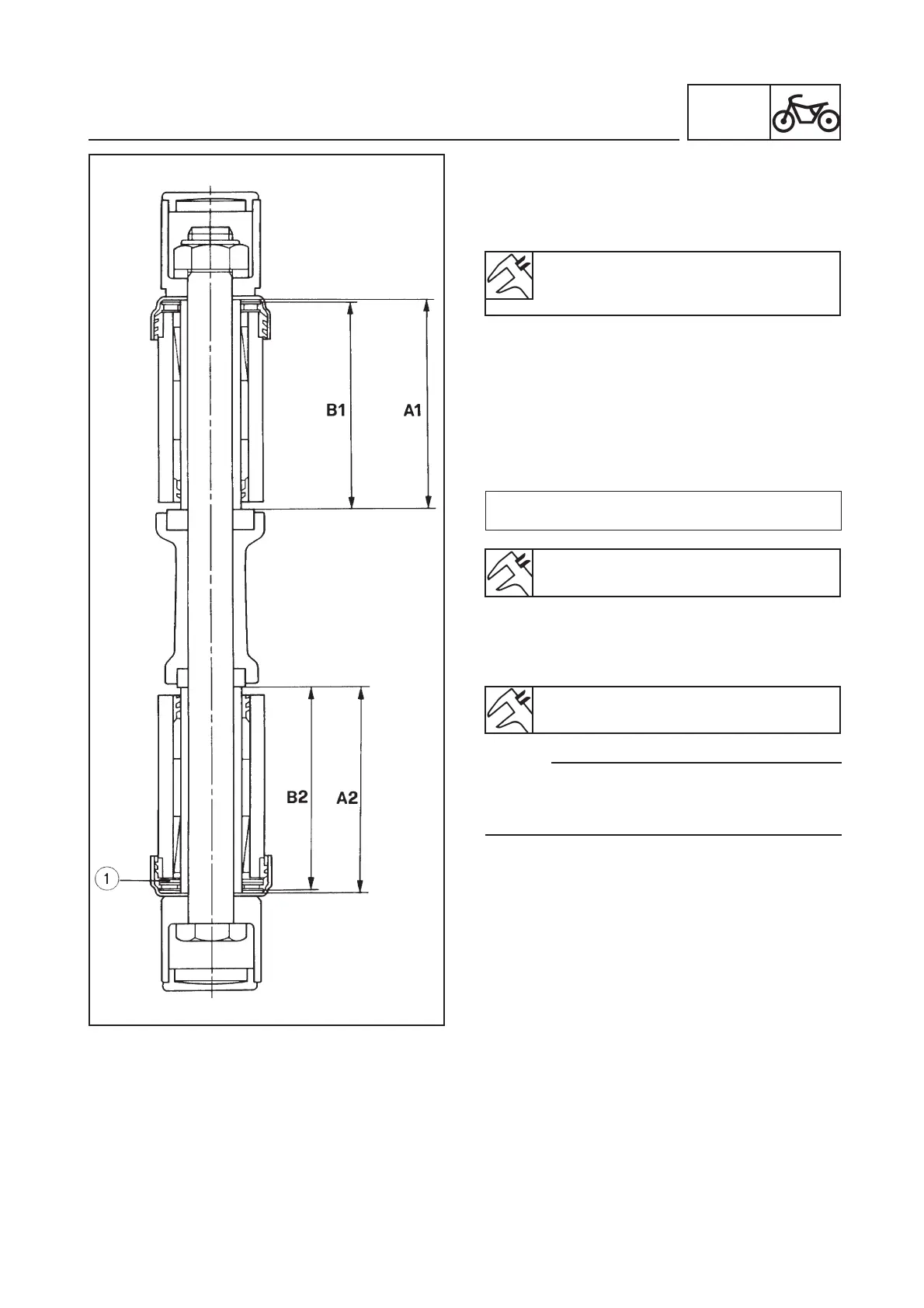

LATERAL FREE PLAY ADJUSTMENT
1. Measure:
•
Length of bushes A1 and A2
Out of specification ➔ Replace.
Length of bushes:
A1 = 76.70 ~ 76.85 mm
A2 = 74.90 ~ 75.00 mm
Swing arm lateral free play C:
0.4 ~ 0.7 mm
Measurement of adjust shim (1):
0.3 mm
2. Measure:
•
Length B1 and B2
3. Calculate:
•
Lateral swing arm side play C.
Out of specification ➔ Adjust free play with
special shims.
Use the following formula:
C = (A1+A2) – (B1+B2)
4. Adjust:
•
Lateral side play using one or more adjust
shims (1)
NOTE:
When only one shim is used, install it on the left
side; when two shims are used, install one on
each side.
