CHAS

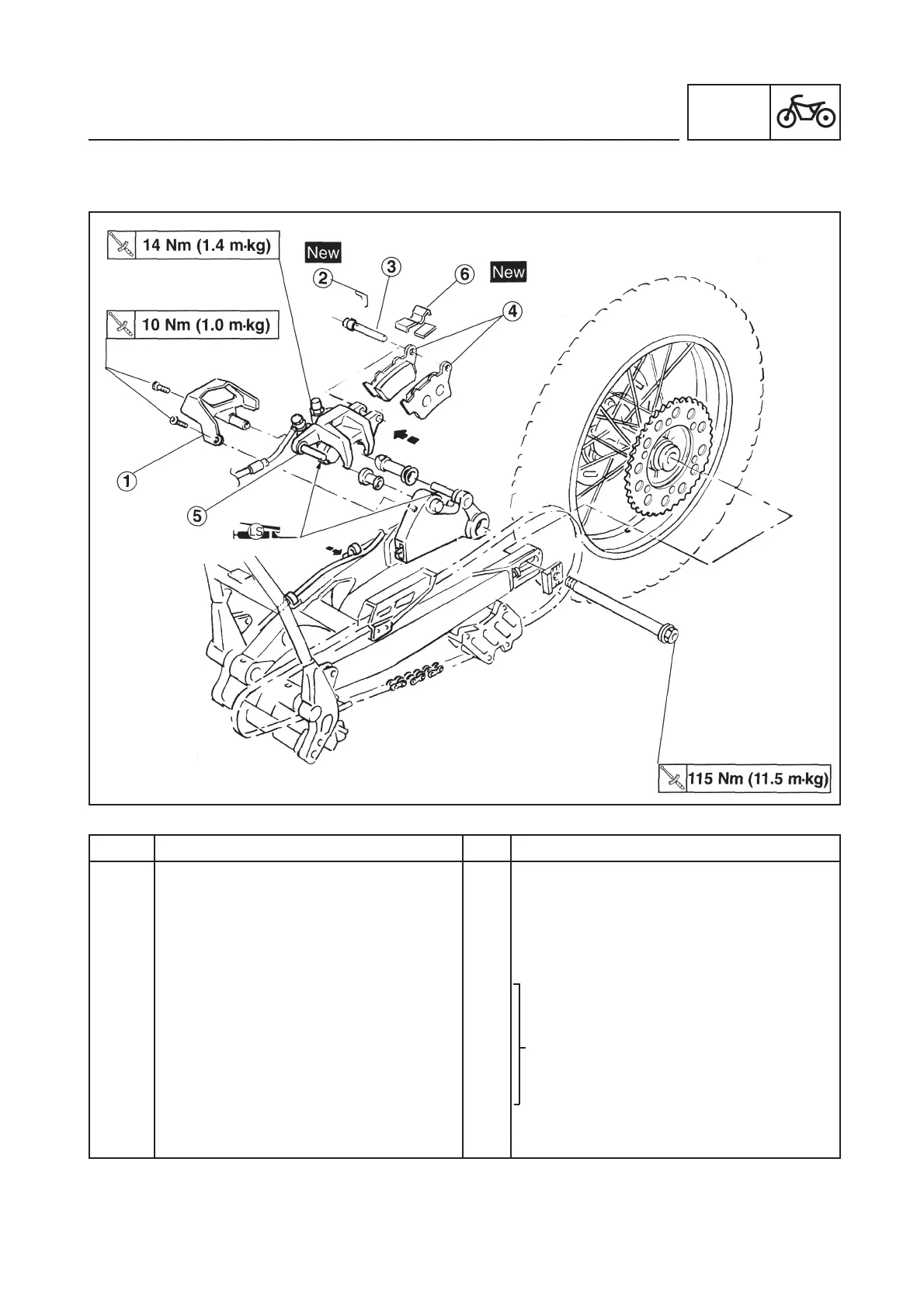

REAR BRAKE
4-29
REAR BRAKE
BRAKE P
AD
Order
Job name/Part name
Q.ty
Remarks
Brake pad removal
Remove the parts in order
.
Rear wheel
Refer to “REAR WHEEL
REMOV
AL”
section.
Brake hose
Remove from clamp.
1
Caliper protector
1
2
Pad pin retainer
1
3
Pad pin
1
4
Brake pad
1
Refer to “BRAKE P
AD REPLACEMENT”
5
Brake caliper (remove from caliper
2
section.
support)
6
Brake pad support
1
Reverse the removal procedure for instal-
lation.
