ENG
ENGINE ASSEMBL
Y AND SETTING
5-55

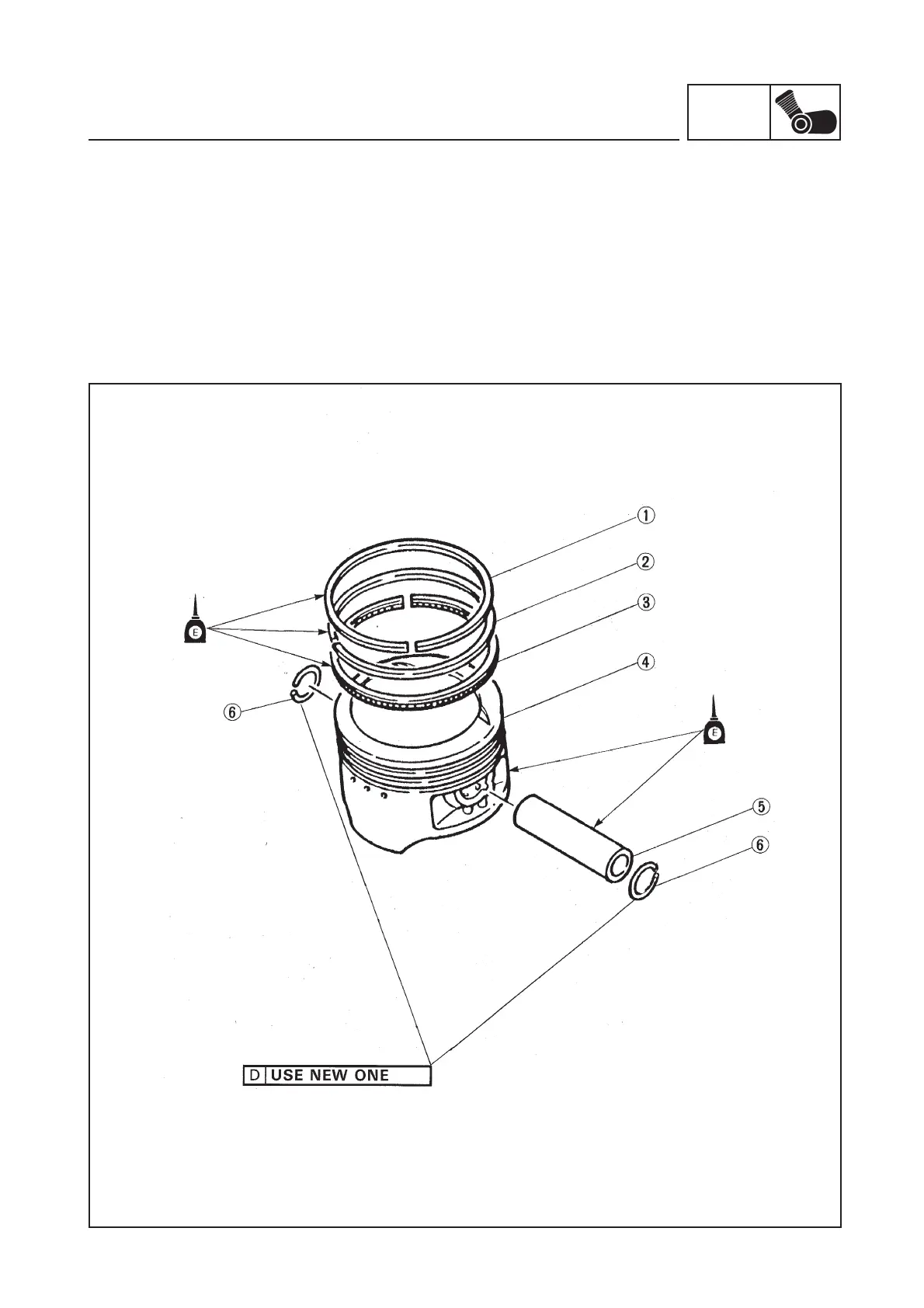

PISTON AND RINGS
(1)
Ring (upper)
(2)
Ring (lower)
(3)
Scraper
(4)
Piston
(5)
Piston pin
(6)
Circlip
PISTON SIZE:
94.915 ~ 94.965 mm
PISTON RING END GAP:
TOP: 0.30 ~ 0.45 mm
2ND: 0.30 ~ 0.45 mm
OIL: 0.20 ~ 0.70 mm
PISTON RING SIDE CLEARANCE:
TOP: 0.04 ~ 0.08 mm
2ND: 0.03 ~ 0.07 mm
258
