REAR WHEEL AND BRAKE DISC
4-23

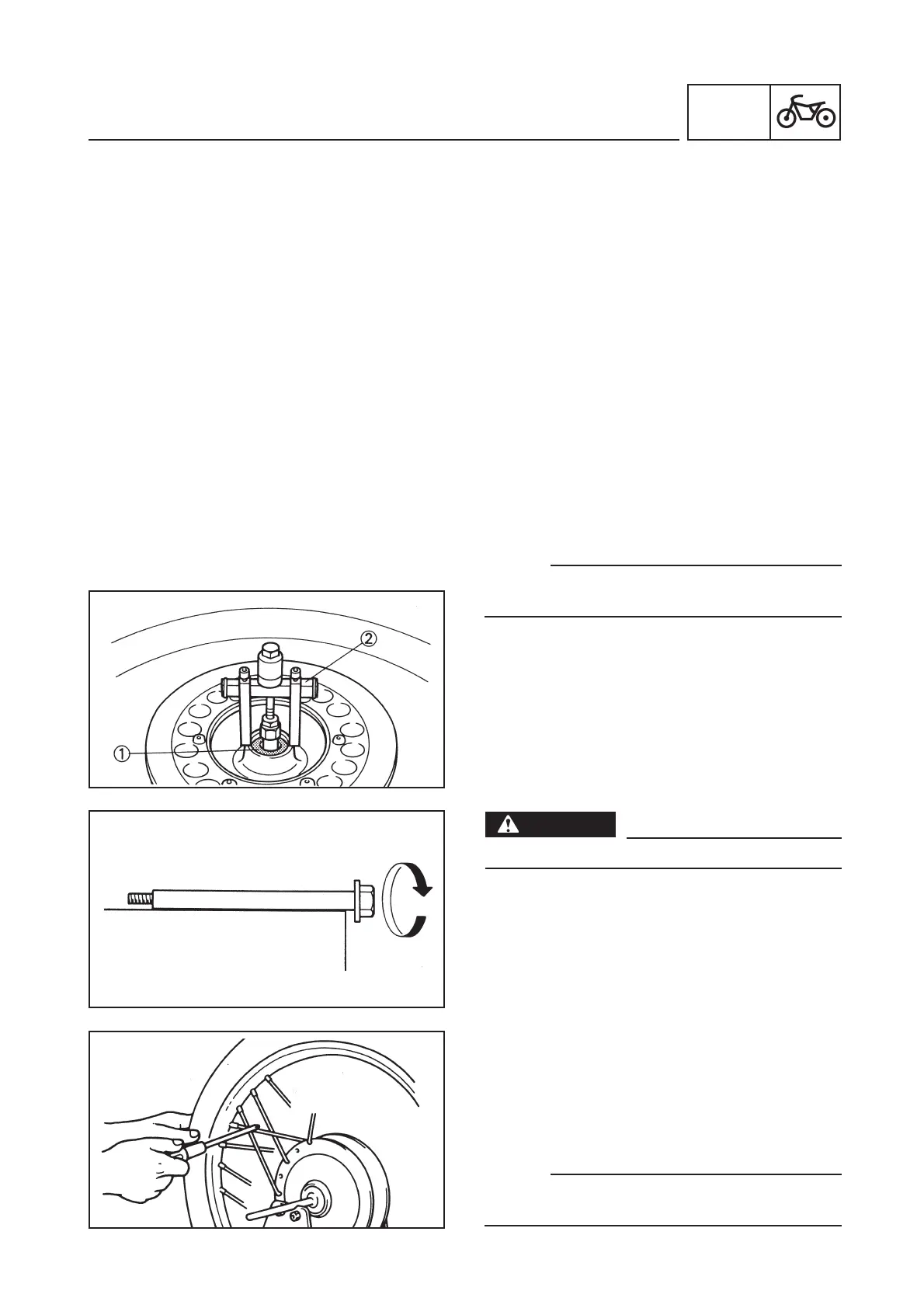

REAR WHEEL DISASSEMBLY
1. Remove:
•
Hub and driven sprocket
•
Dampers
•
Hub spacer
•
Oil seal
•
Hub bearing
•
Wheel bearing
•
Wheel spacer
•
Wheel bearing
•
Dust cover
•
Oil seal
•
Wheel bearing
•
Wheel spacer
Removal procedure:
•
Clean the outside of the hub.
•
Remove the dust cover with a flat-headed screw
driver.
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
NOTE:
Place a rag on the outside to avoid damaging the
hub.
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
WARNING
Do not attempt to straighten a bent axle.
•
Disassemble the bearing (1) with a normal
puller (2).
REAR WHEEL INSPECTION
1. Inspect:
•
Rear wheel axle
(by rolling it on a flat surface)
Bends ➔ Replace.
2. Inspect:
•
Rear tire
Refer to “TIRE INSPECTION” in CHAP-
TER 3.
•
Rear wheel
Refer to “WHEEL INSPECTION” in
CHAPTER 3.
3. Inspect:
•
Spoke(s)
Bent/Damaged ➔ Replace.
Loose spoke(s) ➔ Tighten.
Turn the wheel and hit the spokes gently
with a screwdriver.
NOTE:
A well tightened spoke makes a distinct, sharp
noise: a loose spoke makes a dull, muffled noise.
To Next Page
