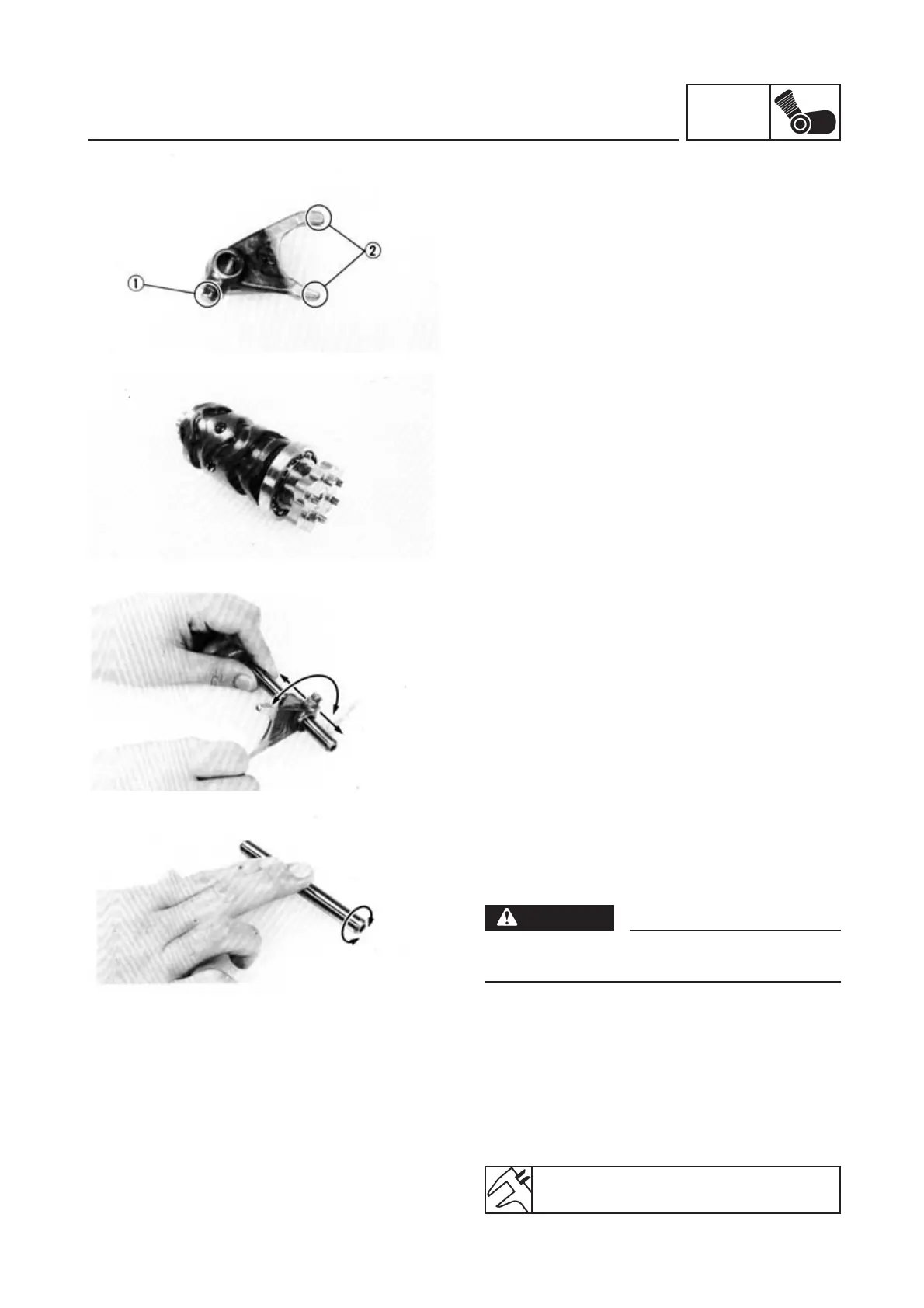

INSPECTION AND REPAIR
5-36
ENG
TRANSMISSION AND GEARBOX
1. Inspect:
•
Shift fork pin (1)
•
Shift fork pawl (2)
Lines/Creases/Wear ➔ Replace.
2. Inspect:
•
Shift cam groove
•
Shift cam pins
Wear/Damage ➔ Replace.
3. Check:
•
Shift fork movement
Rough functioning ➔ Replace shift forks
and/or guide bars.
4. Inspect:
•
Guide bar
Turn on a flat surface.
Curvature ➔ Replace.
WARNING
Do not attempt to straighten the deformed
guide bar.
5. Measure:
•
Transmission shaft eccentricity.
Use the centring tool and micrometer.
Out of specification ➔ Replace bent shaft.
Transmission shaft eccentricity:
<Limit>: 0.08 mm
