1
2
INSP
ADJ

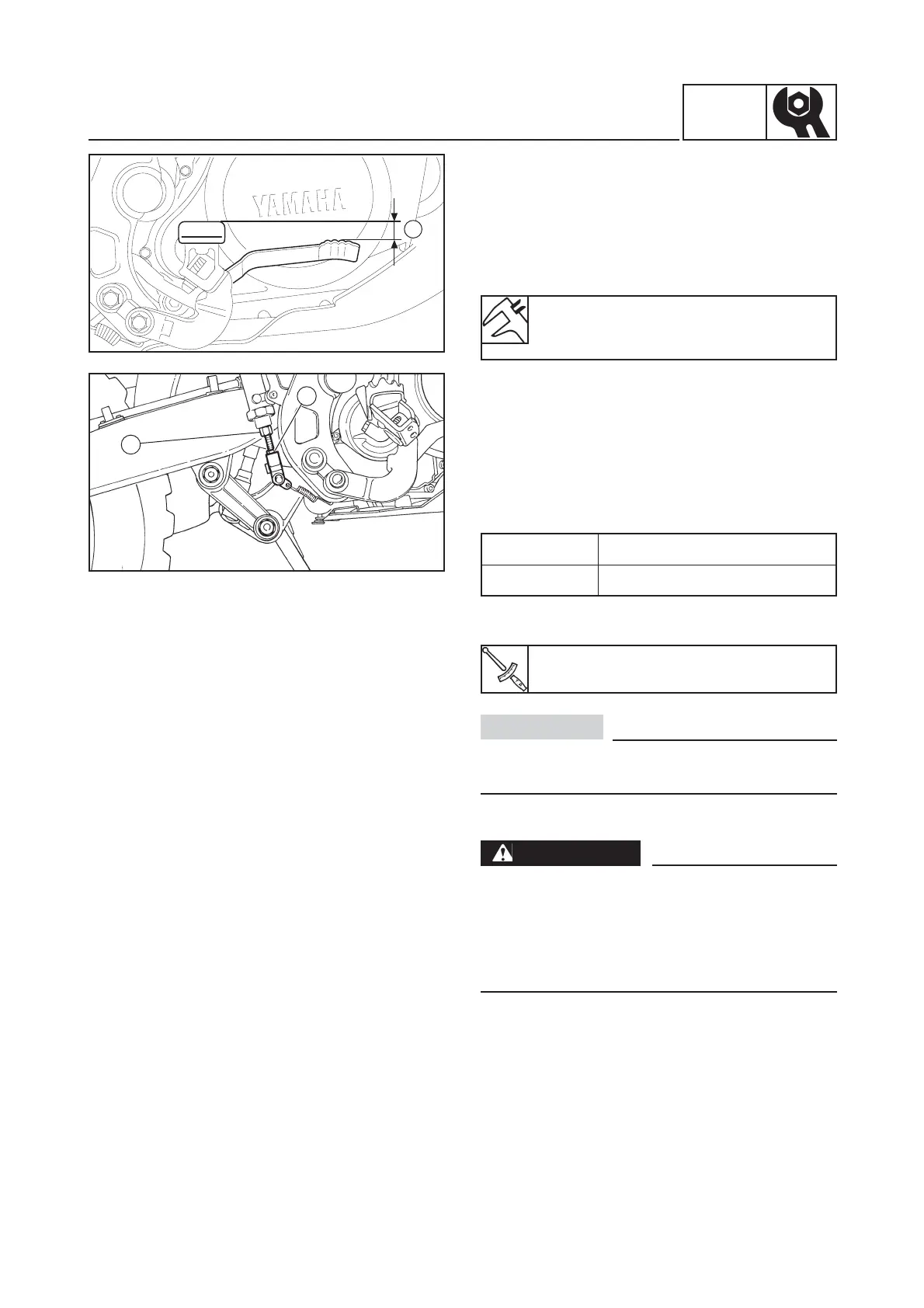

ADJUSTING THE REAR BRAKE
3-31
ADJUSTING THE REAR BRAKE
1. Check:
•
Brake pedal position
(distance a from the top of the rider
footrest to the top of the brake pedal)
Out of specification ➔ Adjust.
2. Adjust:
•
Brake pedal position
•
Tighten lock nut.
After adjusting the brake pedal position, make
sure the brake doesn't oppose resistance.
CAUTION:
•
Loosen lock nut (1).
•
Turn the adjuster (2) either way to obtain the
correct pedal height.
WARNING
If the brake brake pedal has a soft or slack
feel, this means that there is air in the brake
system. It should be bled away before using
the motorcycle. Air in the system seriously
affects the effectiveness of braking and may
cause loss of control of the motorcycle.
Brake pedal position
(below the top of the rider footrest):
10 mm
▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼▼
▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲▲
a
Unscrewing Height (a) diminishes.
Screwing Height (a) increases.
Lock nut:
20 Nm (2.0 mkg)
