Canon imagePROGRAF iPF830 User Manual

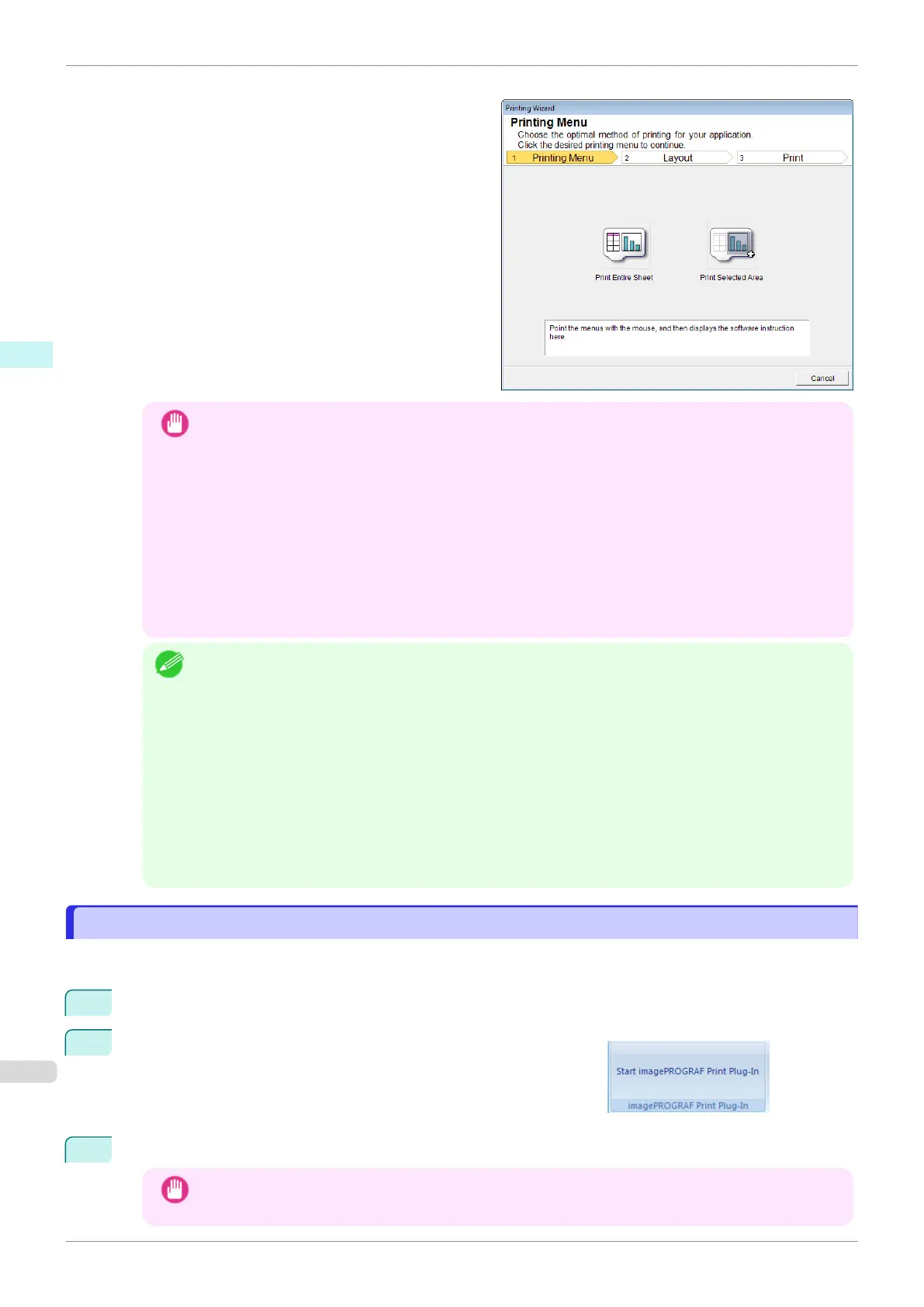

Printing Wizard dialog box
Important
• If you want to change the display to another file or application while the Printing Wizard is open, close
the Printing Wizard dialog box. Otherwise, you may not be able to change displays or operate the tool-
bar/ribbon.
• The Printing Wizard will not start if you click the Print button on the toolbar/ribbon while editing a cell.
• When more than one worksheet is selected, the Printing Wizard cannot be run. Select only one work-
sheet and click Print again.
• When an object is selected, the Printing Wizard is not started if you click the Print button on the tool-
bar/ribbon.
• If the paper size in Excel is blank, the Printing Wizard cannot be run. From the File menu in Excel,
select Page Setup and check Paper size.
Note
•
If you click the Print button with a graph selected, a message dialog box will appear asking if you want to
continue printing. If you click No, you will return to the application.
• If you click the Print button with a page break set, a message dialog box will appear asking if you want to
continue printing. If you click No, you will return to the application. If you do not use the set page break,
check the page break preview and change the setting.
•
If you click the Print button with a page range set, a message dialog box will appear asking if you want to
continue printing. If you click No, you will return to the application. If you do not use the set page range,
check the page break preview and change the setting.
• If you click the Print button with a worksheet or cell protected, a message dialog box will appear asking if
you want to continue printing. If you click No, you will return to the application. If you want to change the
setting, remove the protection from the worksheet or cell.
Print Entire Sheet(Excel)
Print Entire Sheet(Excel)
For resizing the entire sheet to fit the roll width. Choose this option to enlarge the currently displayed sheet before
printing.
1 Start Microsoft Excel.
2
If Start imagePROGRAF Print Plug-In is displayed, click it.
3 Click Print from the imagePROGRAF Print Plug-In toolbar/ribbon.
Important
•
When more than one worksheet is selected, the Printing Wizard cannot be run. Select only one work-
sheet and click Print again.
Print Entire Sheet(Excel) iPF830
User's Guide
Windows Software Print Plug-In for Office
246

Canon imagePROGRAF iPF830 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Minimum line width	0.02 mm
Number of power supply units	1
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Media thickness	0.07 - 0.8 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	1117.6 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
JIS B-series sizes (B0...B9)	B0, B2
Display	LCD
Product color	Black, Grey
Storage media	HDD
Internal storage capacity	320 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Power supply	190 W
Power consumption (off)	0.5 W
Power consumption (standby)	5 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	975 mm
Width	1893 mm
Height	1144 mm
