Canon imagePROGRAF iPF830 User Manual

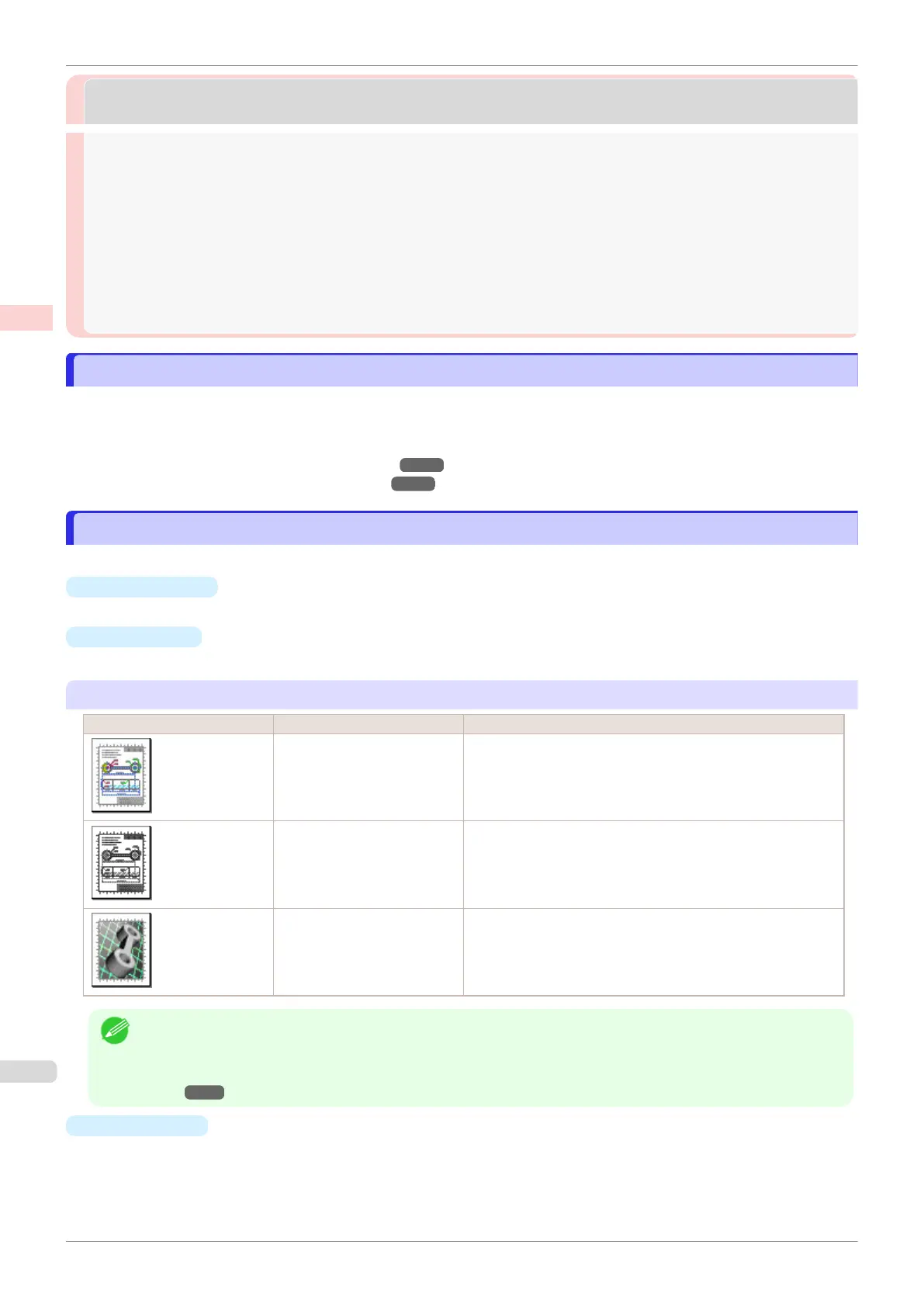

Printing CAD Drawings
Printing CAD Drawings
Printing CAD Drawings ..................................................................................................................................... 40
Printing Line Drawings and Text ........................................................................................................................40
Printing Line Drawings and Text (Windows) ................................................................................................. 41
Printing Line Drawings and Text (Mac OS) ................................................................................................... 42
Printing from AutoCAD ..................................................................................................................................... 44
Specifying Colors and Printing CAD Drawings .................................................................................................. 45
Specifying Colors and Printing CAD Drawings (Windows) ............................................................................ 46
HP-GL/2 Printing .............................................................................................................................................. 47
Printing CAD Drawings
Printing CAD Drawings
Using this printer, you can print fine lines and text clearly and sharply. It's easy to produce highly precise drawings
from CAD applications.
For instructions on CAD printing, refer to the following topics, as appropriate for your operating system.
• Printing Line Drawings and Text (Windows) ➔P.41
• Printing Line Drawings and Text (Mac OS) ➔P.42
Printing Line Drawings and Text
Printing Line Drawings and Text
Printing is easy when you simply choose the type of original to print.
•
Easy Settings
Simply choose the printing application in the list for optimal printing results.
• Print Target
Choose presets that match the type of document to be printed.
Print targets for line drawings and text
Print Target Description
CAD (Color Line Drawing) Settings optimized to print intricate lines in CAD drawings clear-
ly.
CAD (Monochrome Line
Drawing )
Settings optimized to print black lines in CAD drawings clearly.
Perspective, GIS Settings optimized for printing 3D CAD drawings, perspective
drawings, and maps, including GIS maps.
Note
•
You can check the settings values for each print target by clicking View Settings.
• You can also fine-tune these values as needed. ( Advanced Settings )
For details on Advanced Settings, see "Giving Priority to Particular Graphic Elements and Colors for Print-
ing." ➔P.54
•
Print Quality
Choose the print quality.
Printing CAD Drawings
iPF830
User's Guide
Enhanced Printing Options Printing CAD Drawings
40

Canon imagePROGRAF iPF830 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Minimum line width	0.02 mm
Number of power supply units	1
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Media thickness	0.07 - 0.8 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	1117.6 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
JIS B-series sizes (B0...B9)	B0, B2
Display	LCD
Product color	Black, Grey
Storage media	HDD
Internal storage capacity	320 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Power supply	190 W
Power consumption (off)	0.5 W
Power consumption (standby)	5 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	975 mm
Width	1893 mm
Height	1144 mm
