Canon imagePROGRAF iPF830 User Manual

Top Cover (Inside)
Top Cover (Inside)
l
k
j
i
h
g
f
e
d
c
b
a

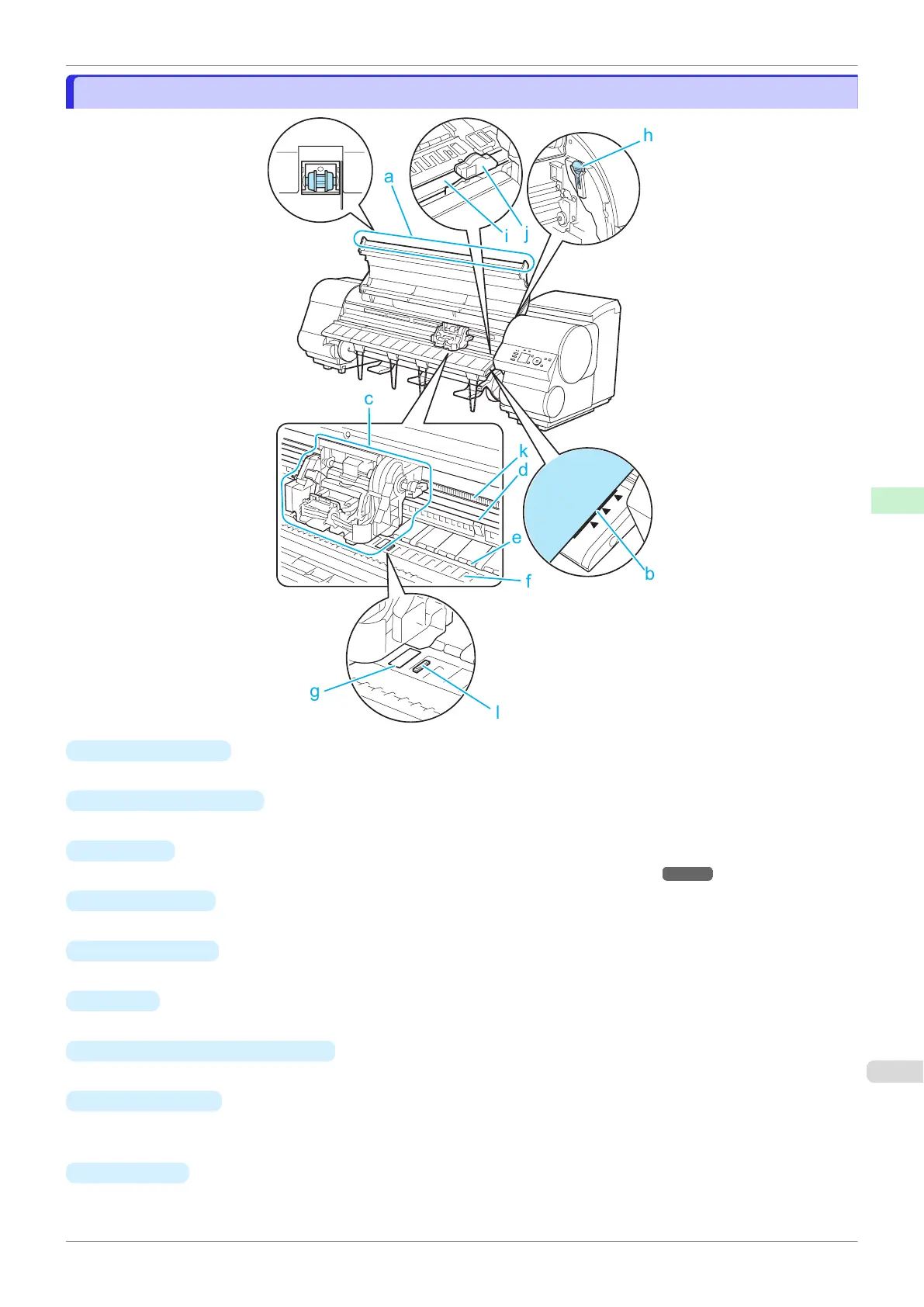

a Top Cover Roller
Prevents paper from rising when ejected.
b Paper Alignment Line
Align paper with this line when loading it.
c Carriage
Moves the Printhead. The carriage serves a key role in printing. (See "Carriage.") ➔ P.466
d
Carriage Shaft
The Carriage slides along this shaft.
e Paper Retainer
Important in supplying the paper. This retainer holds paper as it is fed.
f Platen
The Printhead moves across the platen to print. Vacuum holes on the platen hold paper in place.
g Borderless Printing Ink Grooves
For catching ink outside the edges of paper during borderless printing.
h Cleaning Brush
When cleaning inside the printer under the Top Cover, use this brush to sweep away paper dust on the Platen.
Also use the brush to move the blue Switch on the Platen.
i
Cutter Rail
The Cutter Unit passes over this rail to cut paper.
iPF830
Top Cover (Inside)
User's Guide
Printer Parts Printer parts
465

Canon imagePROGRAF iPF830 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Minimum line width	0.02 mm
Number of power supply units	1
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Media thickness	0.07 - 0.8 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	1117.6 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
JIS B-series sizes (B0...B9)	B0, B2
Display	LCD
Product color	Black, Grey
Storage media	HDD
Internal storage capacity	320 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Power supply	190 W
Power consumption (off)	0.5 W
Power consumption (standby)	5 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	975 mm
Width	1893 mm
Height	1144 mm
