Canon imagePROGRAF iPF830 User Manual

2

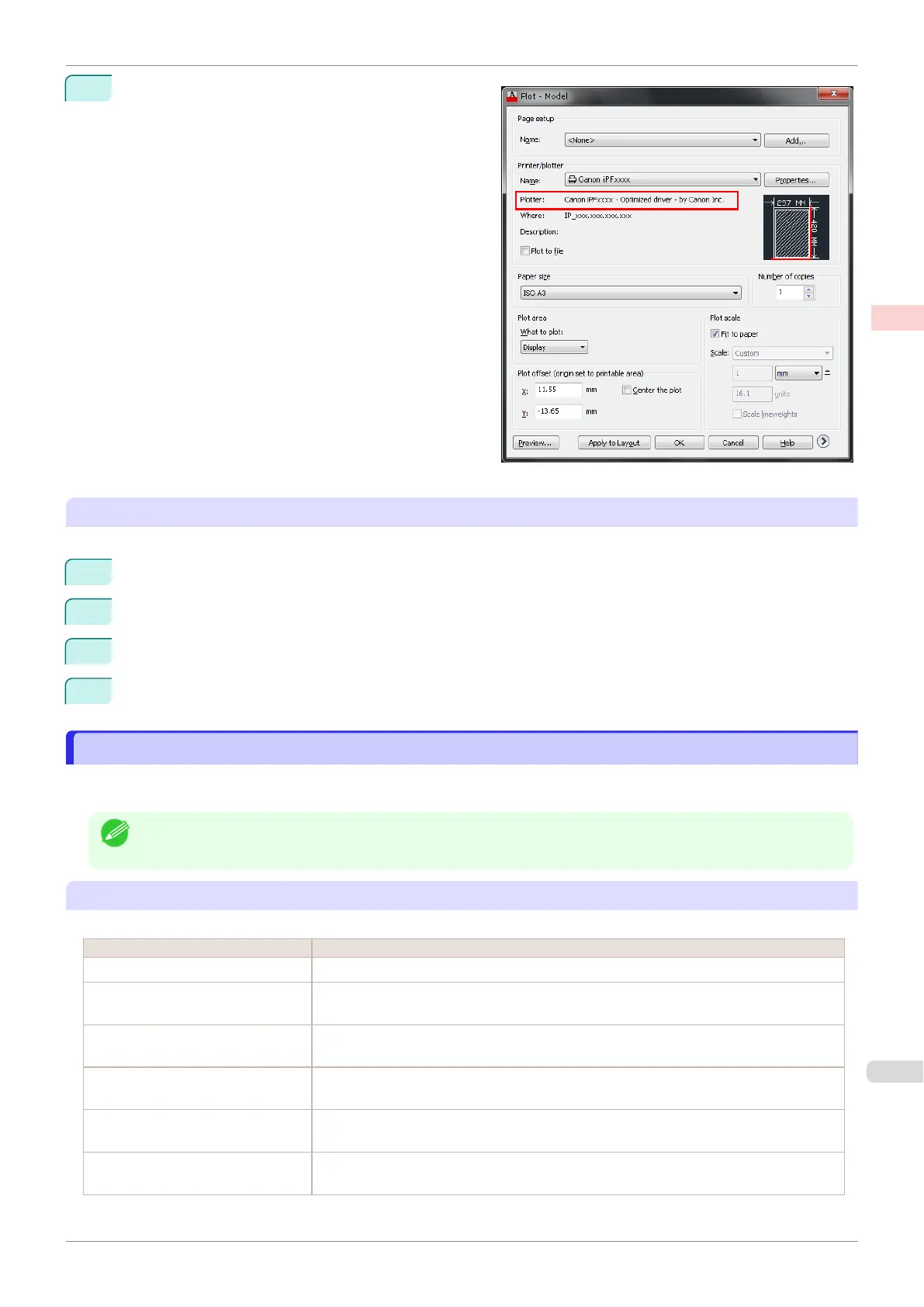

The Printing dialog box is displayed.
Printer Driver Optimization Module for AutoCAD is in-
stalled if in Plotter of Printer/plotter this is dis-
played:iPFxxxx - Optimized driver - by Canon Inc..
Installation of Printer Driver Optimization Module for AutoCAD
If Printer Driver Optimization Module for AutoCAD is not installed, install it by the following method.
1 Insert User Software CD-ROM in the CD-ROM drive and start the installer.
2 In the Setup Menu window, click Install Individual Software.
3 Click Install of Printer Driver Optimization Module for AutoCAD.
4 Follow the instructions on the screen.
Specifying Colors and Printing CAD Drawings
Specifying Colors and Printing CAD Drawings
You can complete color settings when Color (CAD) is selected in Color Mode.
Colors can be adjusted before printing as follows when Color Compatibility is selected.
Note
•
Color (CAD) is displayed when you select Advanced Settings on the Main sheet and set Print Priority to Line
Drawing/Text.
Color Compatibility
Color Setting Item
Color Setting Description
Color (CAD) 1 Print in standard colors.
Color (CAD) 2 Print with approximate colors emulating Canon iPF750, iPF755, iPF650, iPF655, iPF760,
iPF765.
Color (CAD) 3 Print with approximate colors emulating Canon iPF500, iPF600, iPF700, iPF510, iPF610,
iPF710, iPF605, iPF720, iPF810, iPF820, iPF815, iPF825.
Color (CAD) 4 Print emulating the HP Designjet 4000/4500, in colors resembling colors produced by
these printers.
Color (CAD) 5 Print emulating the HP Designjet T1100, in colors resembling colors produced by this
printer.
Color (CAD) 6 Print emulating the Oce ColorWave 300, in colors resembling colors produced by this
printer.
iPF830 Specifying Colors and Printing CAD Drawings
User's Guide
Enhanced Printing Options Printing CAD Drawings
45

Canon imagePROGRAF iPF830 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Minimum line width	0.02 mm
Number of power supply units	1
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Media thickness	0.07 - 0.8 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	1117.6 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
JIS B-series sizes (B0...B9)	B0, B2
Display	LCD
Product color	Black, Grey
Storage media	HDD
Internal storage capacity	320 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Power supply	190 W
Power consumption (off)	0.5 W
Power consumption (standby)	5 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	975 mm
Width	1893 mm
Height	1144 mm
