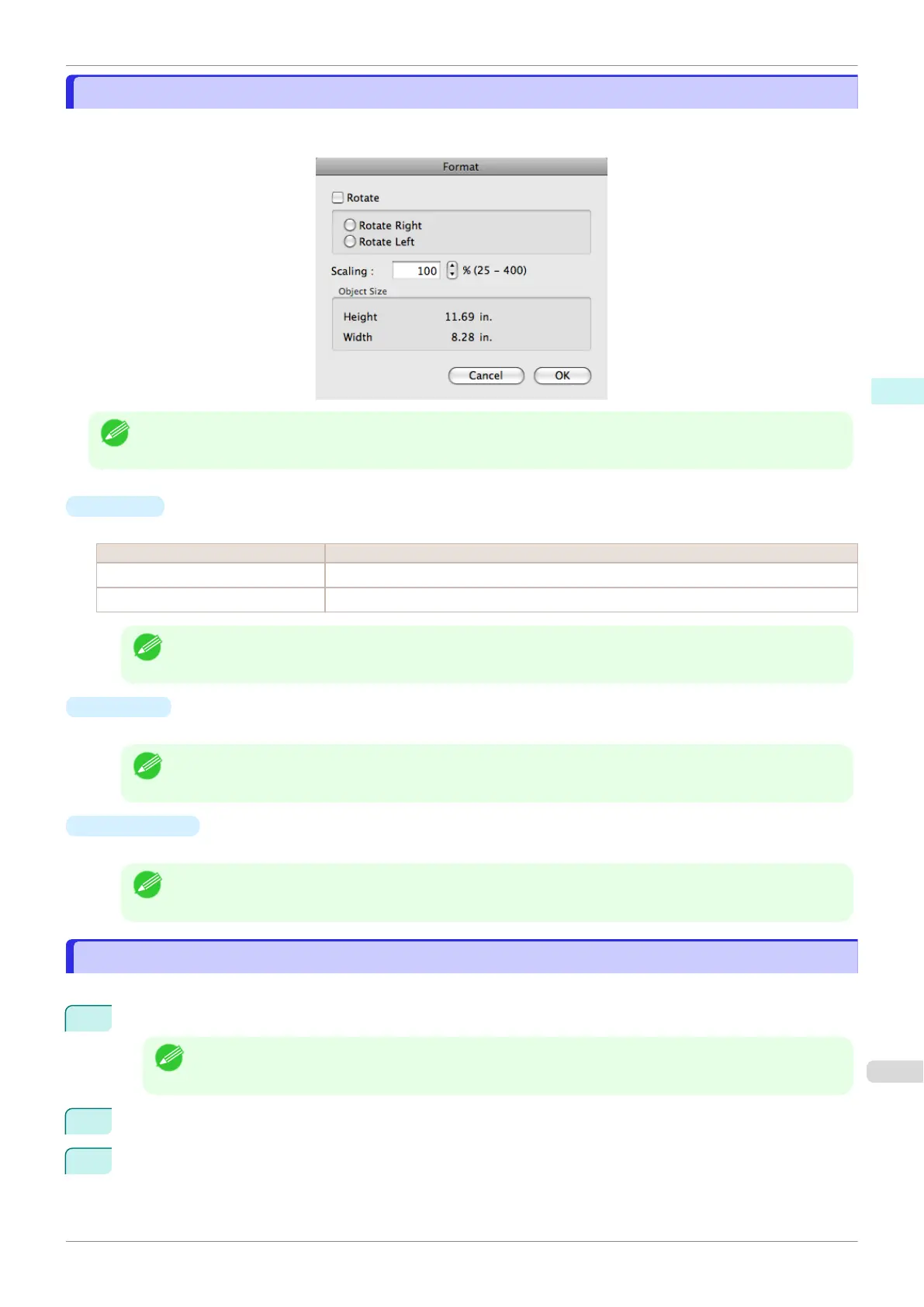

Format Dialog Box
Format Dialog Box
This dialog box appears when you select Format from the Object menu after you select an object. You can rotate,
enlarge, or reduce an object.
Note
• When the objects are not selected, you can not select Format.
•
Rotate
When you place a checkmark here, you can select Rotate Right or Rotate Left.
Setting Details
Rotate Right Rotates the object 90 degrees clockwise.
Rotate Left Rotates the object 90 degrees counterclockwise.
Note
•
When several objects are selected, you cannot select Rotate.
• Scaling
You can input the value for enlargement or reduction of the obeject in numerical characters.
Note
•
You can input between 25 and 400.
• You can change the numbers by clicking either ▲ button or ▼ button.
•
Object Size
You can confirm the object size.
Note
•
When several objects are selected, you cannot display Object Size.
Laying out a Multiple-File Document on One Page
Laying out a Multiple-File Document on One Page
You can lay out and print a multiple-file document on one page.
1 From the application software's File menu, select the printer setup menu to open the Print dialog box.
Note
•
Normally, select Print from the File menu.
2 Click on Free Layout in the Page Setup panel to attach a checkmark.
3 In the Print dialog box, select the pages to print and the number of copies, and click the Print button.
Free Layout starts, laying out the document created with application software in the layout area as an ob-
ject.
iPF830
Format Dialog Box
User's Guide
Mac OS Software Free Layout
311

Canon imagePROGRAF iPF830 Specifications

General

Color	Yes
Printing colors	Black, Cyan, Magenta, Matte black, Yellow
Print technology	Inkjet
Maximum resolution	2400 x 1200 DPI
Number of print cartridges	5
Page description languages	GARO, HP-GL/2, HP-RTL
Minimum line width	0.02 mm
Number of power supply units	1
Compliance industry standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3az
Media thickness	0.07 - 0.8 mm
Maximum print size	A0 (841 x 1189 mm)
Maximum roll length	18 m
Media width (sheets)	1117.6 mm
Maximum roll diameter	150 mm
ISO A-series sizes (A0...A9)	A0, A1
JIS B-series sizes (B0...B9)	B0, B2
Display	LCD
Product color	Black, Grey
Storage media	HDD
Internal storage capacity	320 GB
Sound power level (standby)	35 dB
Sound pressure level (printing)	52 dB
USB connector	USB Type-A
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet interface type	Gigabit Ethernet
Power supply	190 W
Power consumption (off)	0.5 W
Power consumption (standby)	5 W
Operating temperature (T-T)	15 - 30 °C
Operating relative humidity (H-H)	10 - 80 %
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth	975 mm
Width	1893 mm
Height	1144 mm
