Garmin G300 Pilot’s Guide
190-00921-00 Rev. D
198
Integrated Autopilot
System
Overview
Flight
InstrumentsEIS
COM
Interface
GPS
Navigation
Flight
Planning
Hazard
Avoidance
Additional
Features
Integrated
AutopilotAnnun/AlertsAppendixIndex
Initial Bank Angle Autopilot Roll Reference
Less than 6° Rolls wings level
6° to Maximum Bank Setting Maintains current aircraft bank angle
Greater than Maximum Bank Setting Limits bank angle to maximum bank setting
Roll Hold Mode Responses
CHANGING THE ROLL REFERENCE
To adjust the roll reference while in Roll Hold Mode, hold the CWS
Button, establish the desired bank angle, then release the CWS Button.
HEADING MODE (HDG)
Heading Mode is activated by pressing the AP HDG Softkey. Heading
Mode acquires and maintains the Selected Heading. The Selected Heading
is shown by a light blue bug on the HSI and Heading Tape and in the box
to the upper left of the HSI.

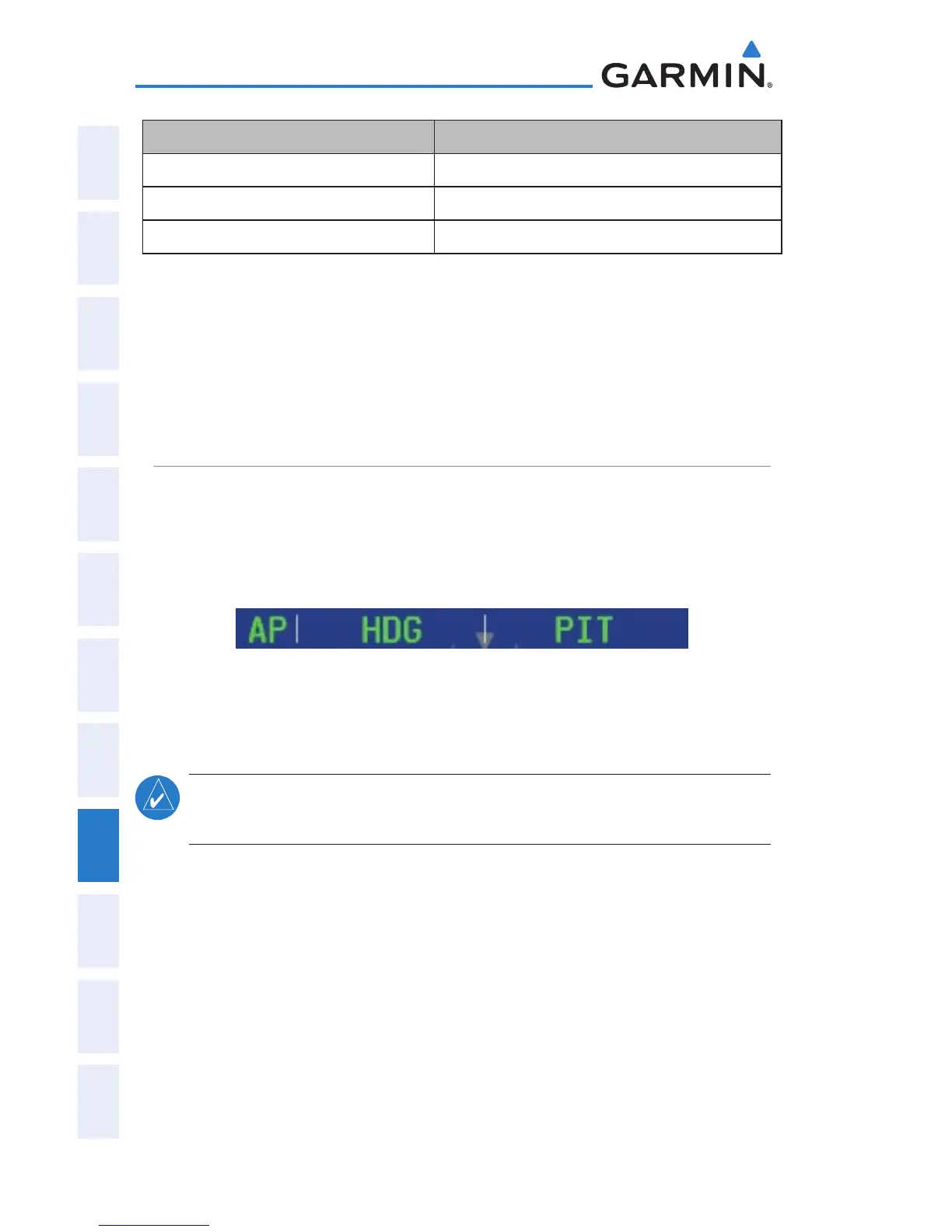

Heading Mode Annunciation
CHANGING THE SELECTED HEADING
NOTE: Press and hold the FMS Joystick (on the PFD or PFD Page) to
synchronize the Selected Heading to the current heading.
Changing the selected heading (integrated autopilot config-
ured):
1)
From the PFD Page (one display) or PFD (two display), press the HDG/
ROLL Softkey (if necessary). The Heading Box is highlighted.
2)
Turn the FMS Joystick to select the desired heading, and press the ENT
Key. The Selected Heading is shown to the left of the HSI.
Holding the CWS Button and hand-flying the aircraft does not change
the Selected Heading. The Integrated Autopilot guides the aircraft back to
the Selected Heading upon release of the CWS Button.
