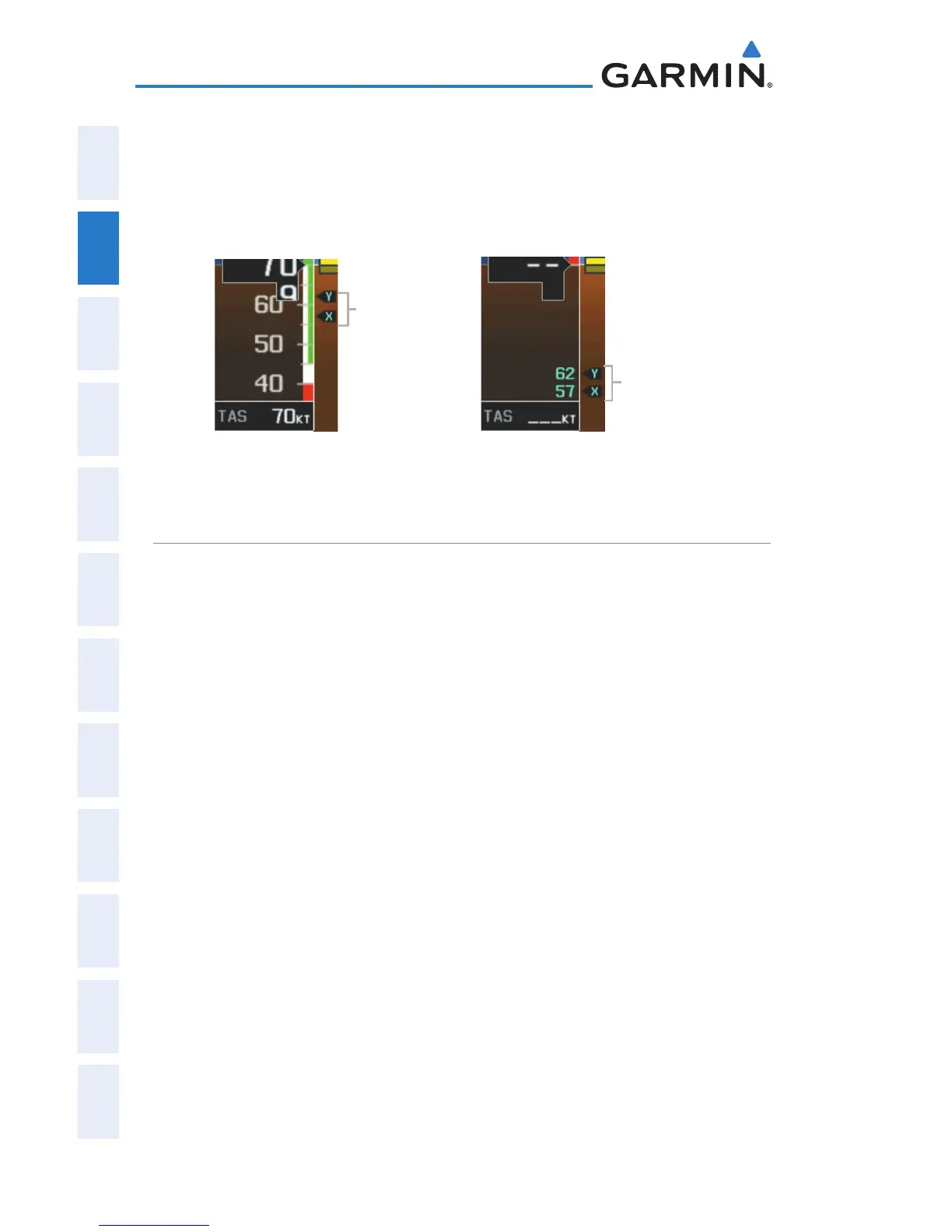

VSPEED REFERENCE
When airspeed is present, the Vspeeds (V
x
and V
y
) are also displayed at their
respective locations to the right of the airspeed scale, otherwise the Vspeeds are
displayed at the bottom of the airspeed indicator.
Vspeed References
(with airspeed)
Vspeed References
Vspeed References
Vspeed References
(without airspeed)
ATTITUDE INDICATOR
Attitude information is displayed over a virtual blue sky and brown ground with
a white horizon line. The Attitude Indicator displays the pitch (indicated by the
yellow symbolic aircraft on the pitch scale), roll, and slip/skid information.
The horizon line is part of the pitch scale. Pitch markings occur at 2.5˚ intervals
through all pitch ranges.
The inverted white triangle indicates zero on the roll scale. Major tick marks at
30˚ and 60˚ and minor tick marks at 10˚, 20˚, and 45˚ are shown to the left and
right of the zero. Angle of bank is indicated by the position of the pointer on the
roll scale.
Slip/skid is indicated by the location of the ball.
