Garmin G300 Pilot’s Guide
190-00921-00 Rev. D
Appendix E
241
System
Overview
Flight
Instruments EIS
COM
Interface
GPS
Navigation
Flight
Planning
Hazard
Avoidance
Additional
Features
Integrated
Autopilot Annun/Alerts Appendix Index
APPENDIX E: ABNORMAL OPERATION

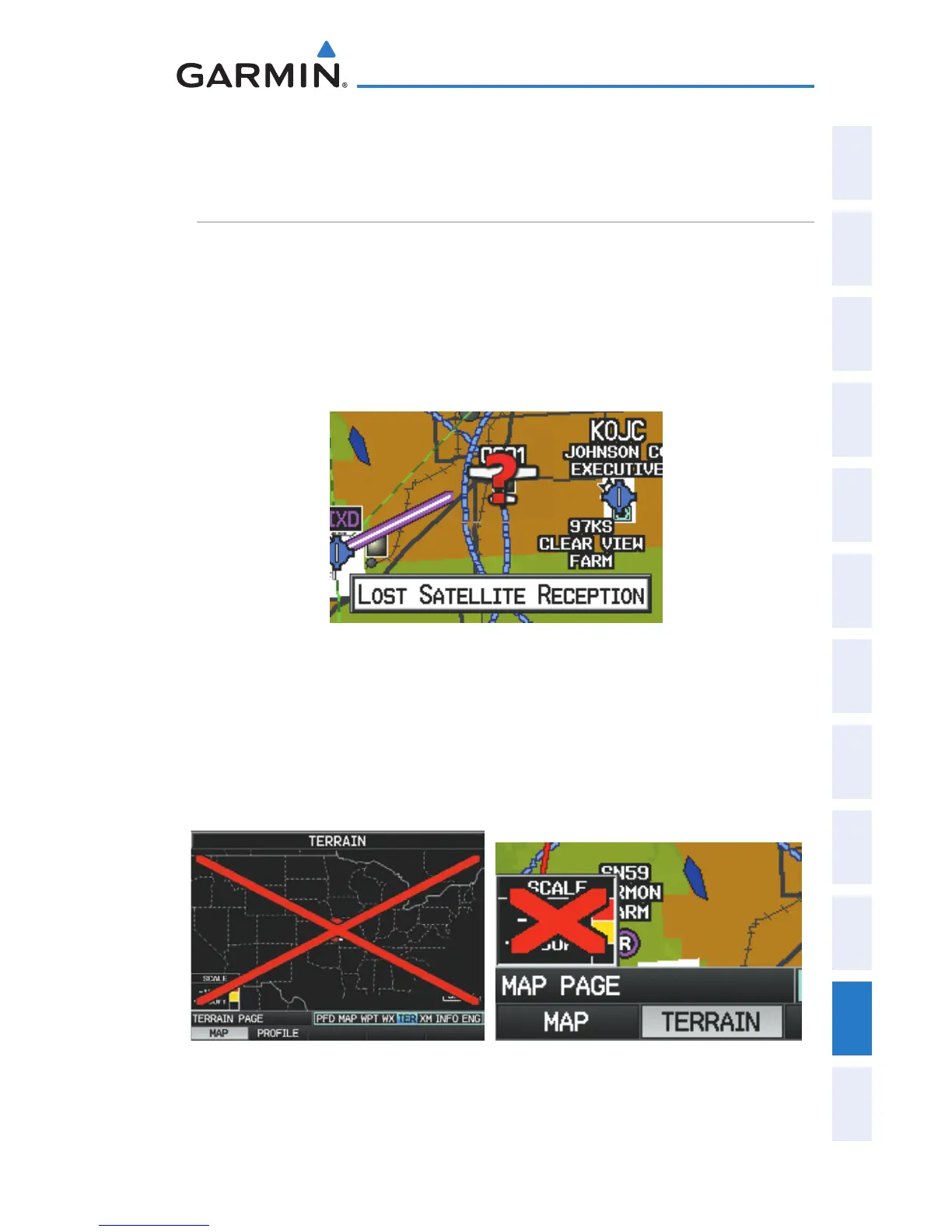

LOSS OF GPS POSITION
When the
G300 loses the GPS signal for any reason, the following will occur:
A blinking red question mark will appear over the airplane icon on the map.•
The ‘Lost Satellite Reception’ message will display.•
Any GPS dependent data fields will not be available.•
GPS Signal Lost
HAZARD DISPLAY WITH LOSS OF GPS POSITION
If the Terrain Page doesn’t have at least a 3D fix (i.e. altitude unknown),
a Red X will be displayed.
Terrain Page Red X
(Single Display)
Map Page Red X (Terrain)
(Single Display)
