GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 5 - Page 5-15

5-4-2 LOGIQ™ P6/P6 Pro Monitor

LOGIQ™ P6/P6 Pro system has 17inch LCD monitor with DVI-I interface.

5-4-2-1 MONITOR Signal I/O

Monitor assy has two main I/O connectors, One is a DVI-I connector, and the other is a 110V/220V

power plug.

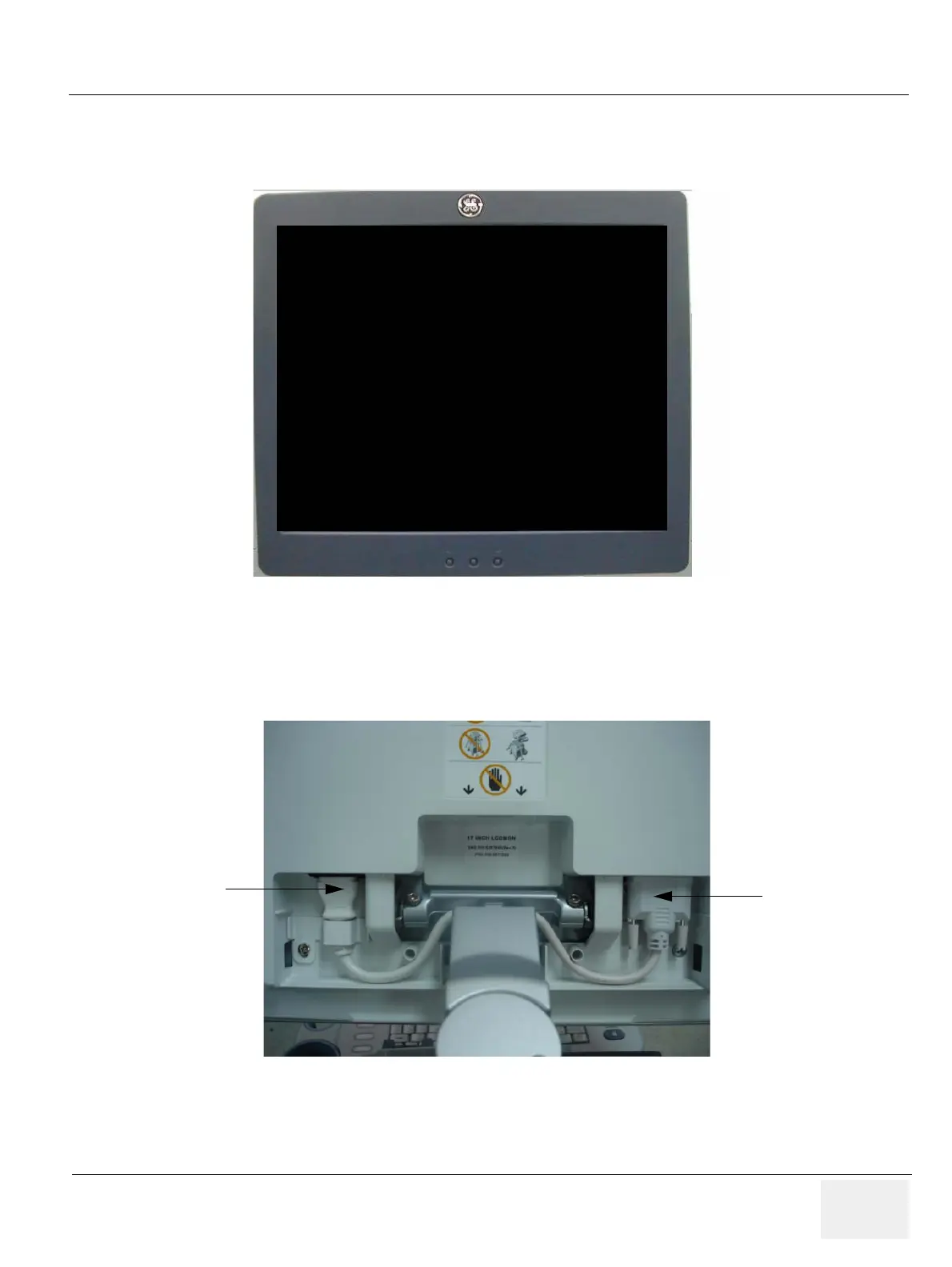

Figure 5-12 LOGIQ™ P6/P6 Pro Monitor

Figure 5-13 LP6 17” LCDMON Signal I/O

DVI

PWR
