GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 8 - Page 8-79

8-2-33 Front Caster / Rear Caster

NOTE: Both Front Casters and Rear Casters are swivel type in LOGIQ™ P6/P6 Pro.

8-2-33-1 Tools

• Common Phillips screwdrivers

• Allen/Unbraco wrench

8-2-33-2 Preparations

• Shut down the system and switch off the main breaker.

8-2-33-3 Removal procedure

1.) Unscrew 8 screws (1A-8A) to remove the front caster.

2.) Unscrew 8 screws (1-8) to remove the rear caster.

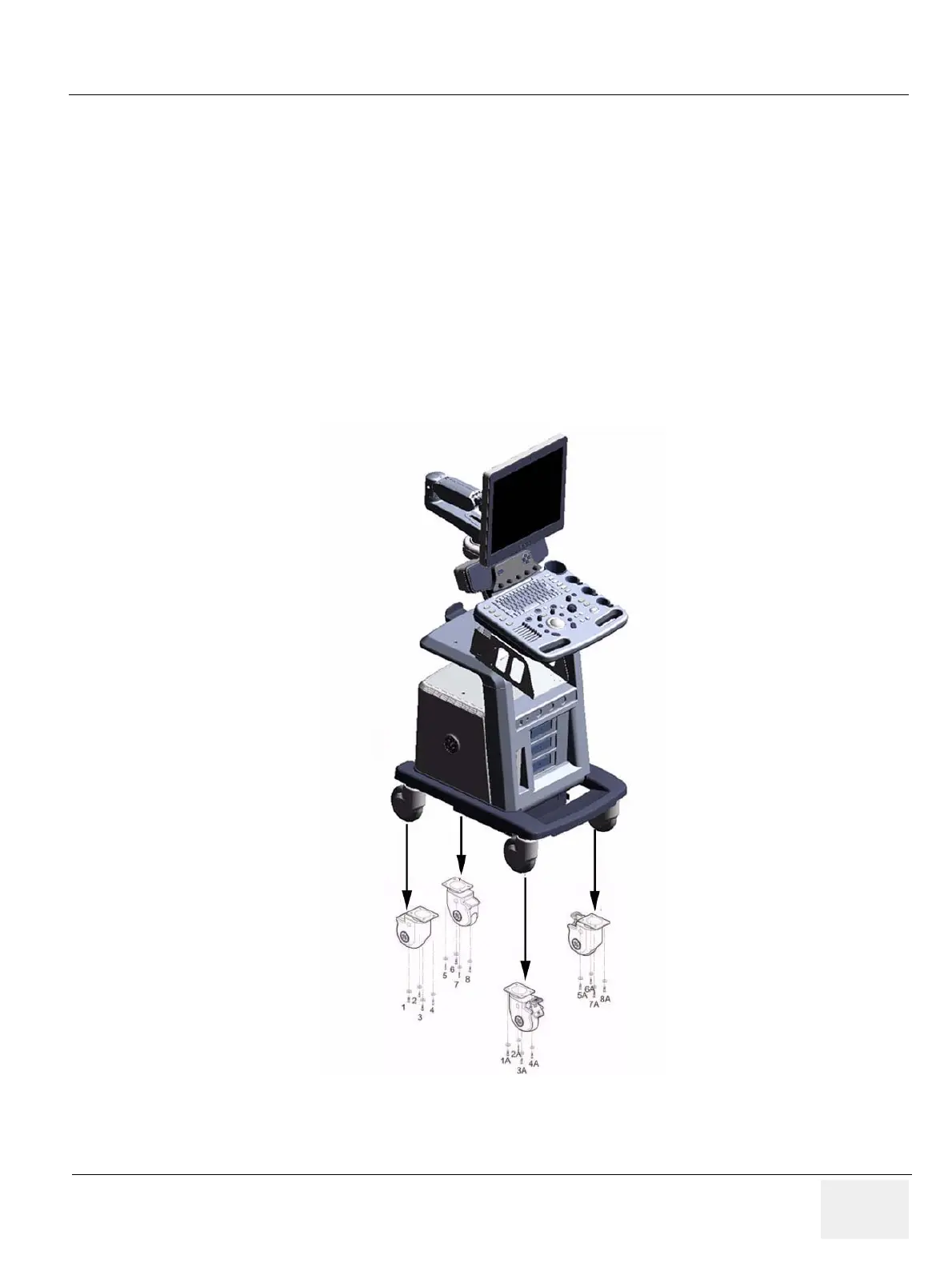

Figure 8-119 Casters
