GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-133
8-4-4-6 Verifying the VCR (if necessary)
1.) Press Record button, VCR menu shows up at the bottom of the screen.
2.) Click Counter Reset, then Press Record ( ) menu to start recording.
Displays a red dot in the VCR status area on the Title bar to indicate that recording has begun.
3.) Press Stop ( )to stop recording the tape at the desired moment.
4.) Press Search to adjust the starting time for video playback.
5.) Press Play to start VCR playback.

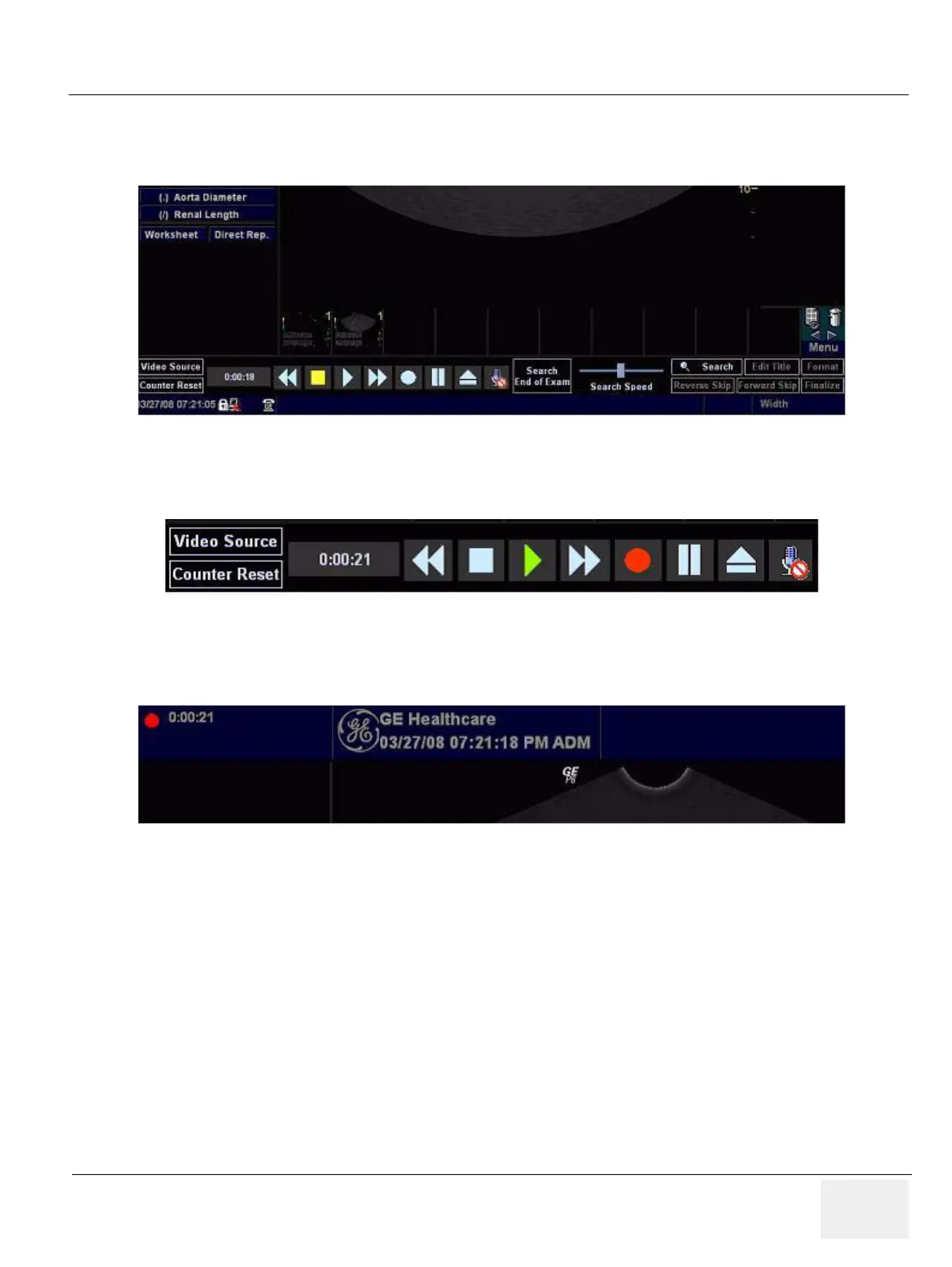

Figure 8-198 VCR Menu
Figure 8-199 Record Menu
Figure 8-200 VCR Status
