GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Chapter 5 - Page 5-17

Section 5-5

P6 ARP II (Rear Panel)

The LOGIQ™ P6/P6 Pro system has the I/O interfaces for peripherals in rear panel. P6 ARP II assy has

connectors for peripheral. Composite in/out and S-VHS in/out are analog video interfaces for recording

and playback of the VCR or DVD recorder. Audio in/out are audio interfaces for audio recording and

playback of the VCR or DVD recorder. The analog VGA signal also provide display interface for external

VGA monitor.

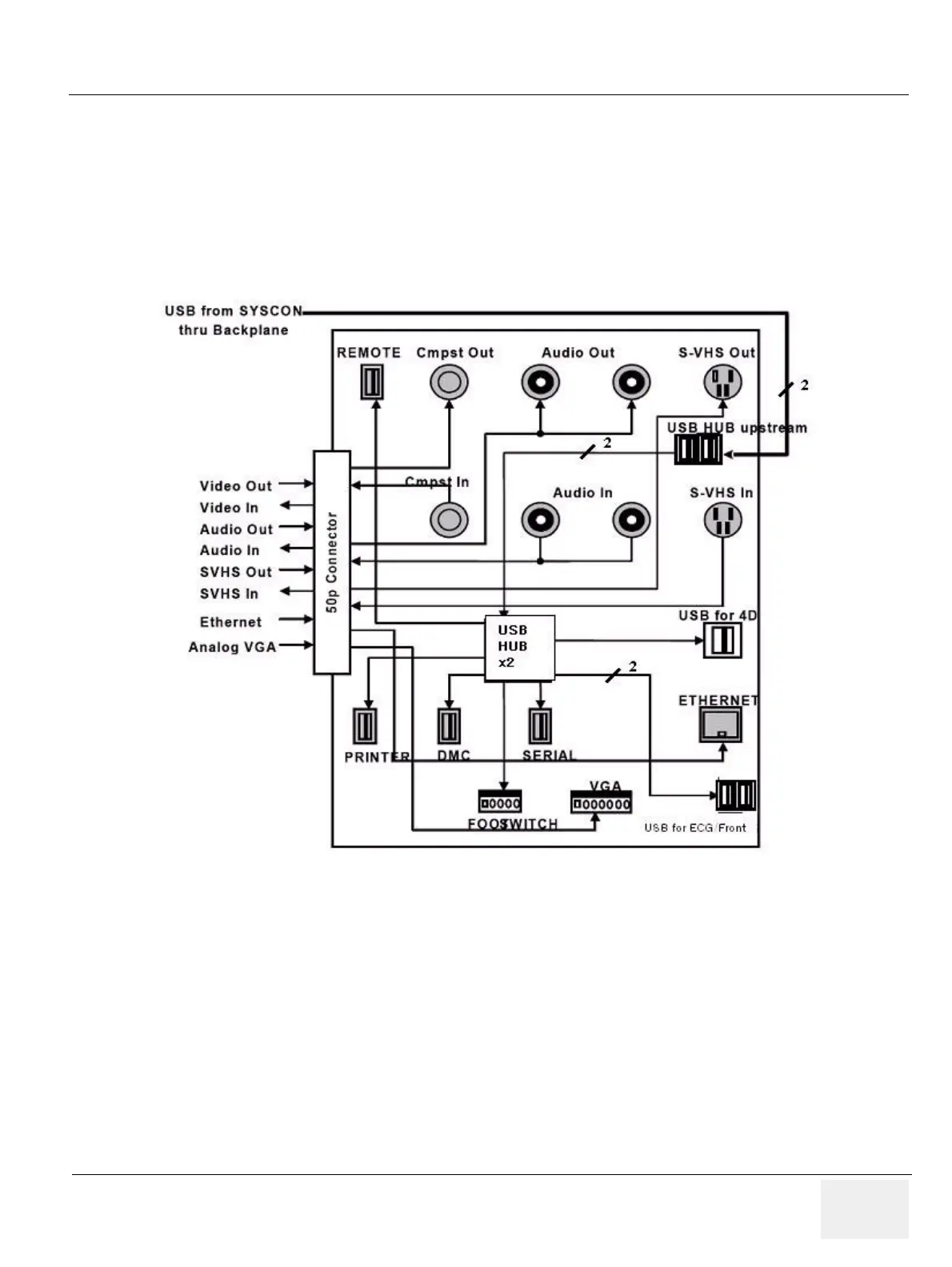

Figure 5-16 P6 ARP II Block Diagram
