GE HEALTHCARE
DIRECTION 5394152, Revision 5
LOGIQ™ P6/P6 PRO SERVICE MANUAL
Chapter 8 - Page 8-121
8-4-2-4 DMC Checks (DMC User Only)
NOTE: DMC Cable is supplied only as an option.
1.) Check DMC Cable (USB to Serial Bridge).
2.) Plug in the Cable as shown on the right side of the USB port.
3.) Ensure USB to Serial Bridge port is recognized by the system.
4.) Trackball to My computer icon and left click
5.) Right click on Properties.
6.) Right click on the Hardware tab.
7.) Right click on the device manager in the middle right of the hardware tab window.
8.) Make sure“USB to Serial Bridge” is displayed as shown Figure 8-180

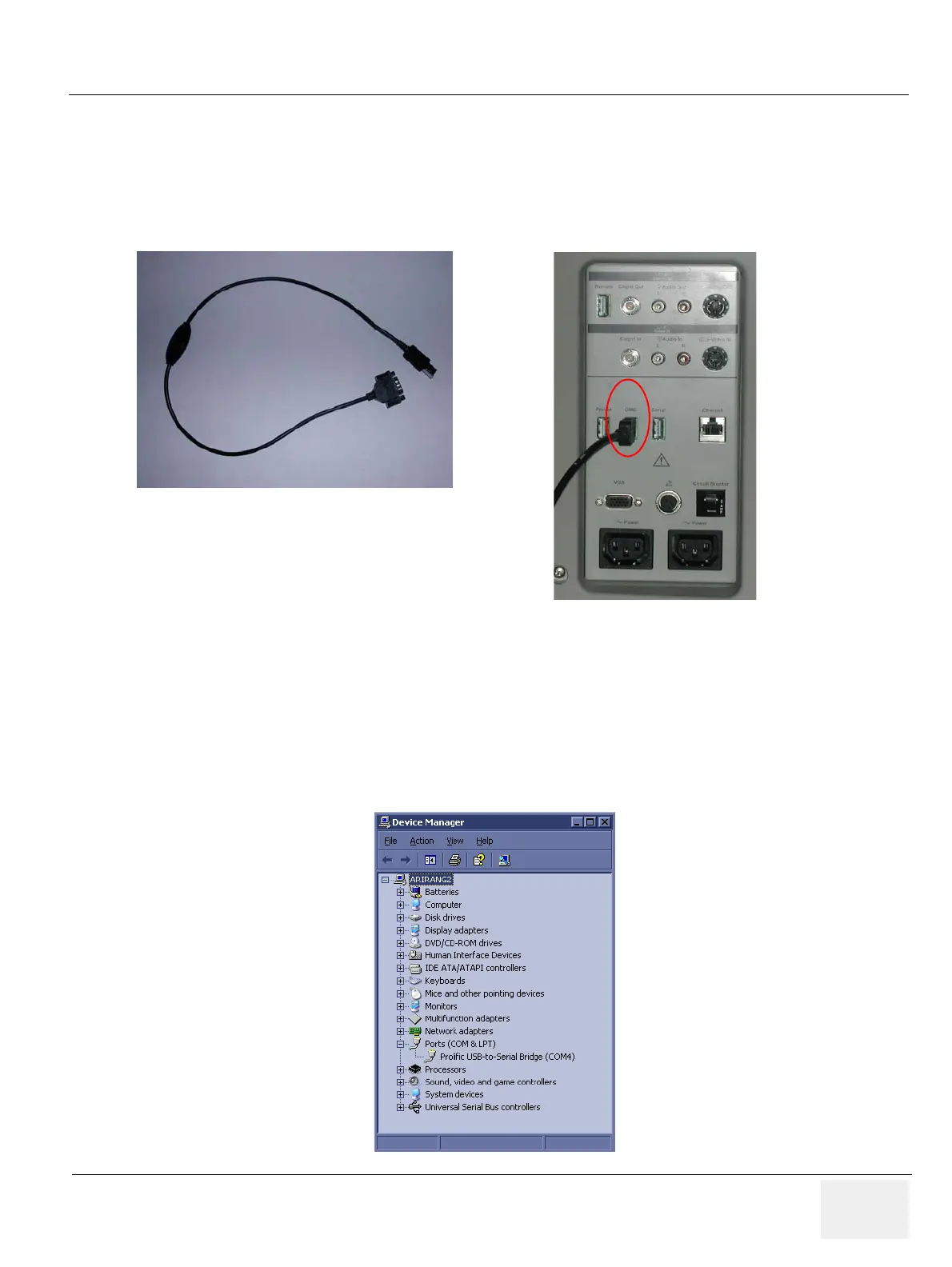

Figure 8-179 DMC Cable
Figure 8-180 Device Manager Windows
DMC Cable
Plug on the right
