GE HEALTHCARE

DIRECTION 5394152, Revision 5

LOGIQ™ P6/P6 PRO SERVICE MANUAL

Page 8-48 Section 8-2 - DISASSEMBLY/RE-ASSEMBLY

8-2-14 Right or Left Side Cover

8-2-14-1 Tools

• Common Phillips screwdrivers

8-2-14-2 Preparations

• Shut down the system and switch off the main breaker.

8-2-14-3 Removal procedure

1.) Unscrew the four screws on left and right side.

2.) Remove the Right or Left side covers.

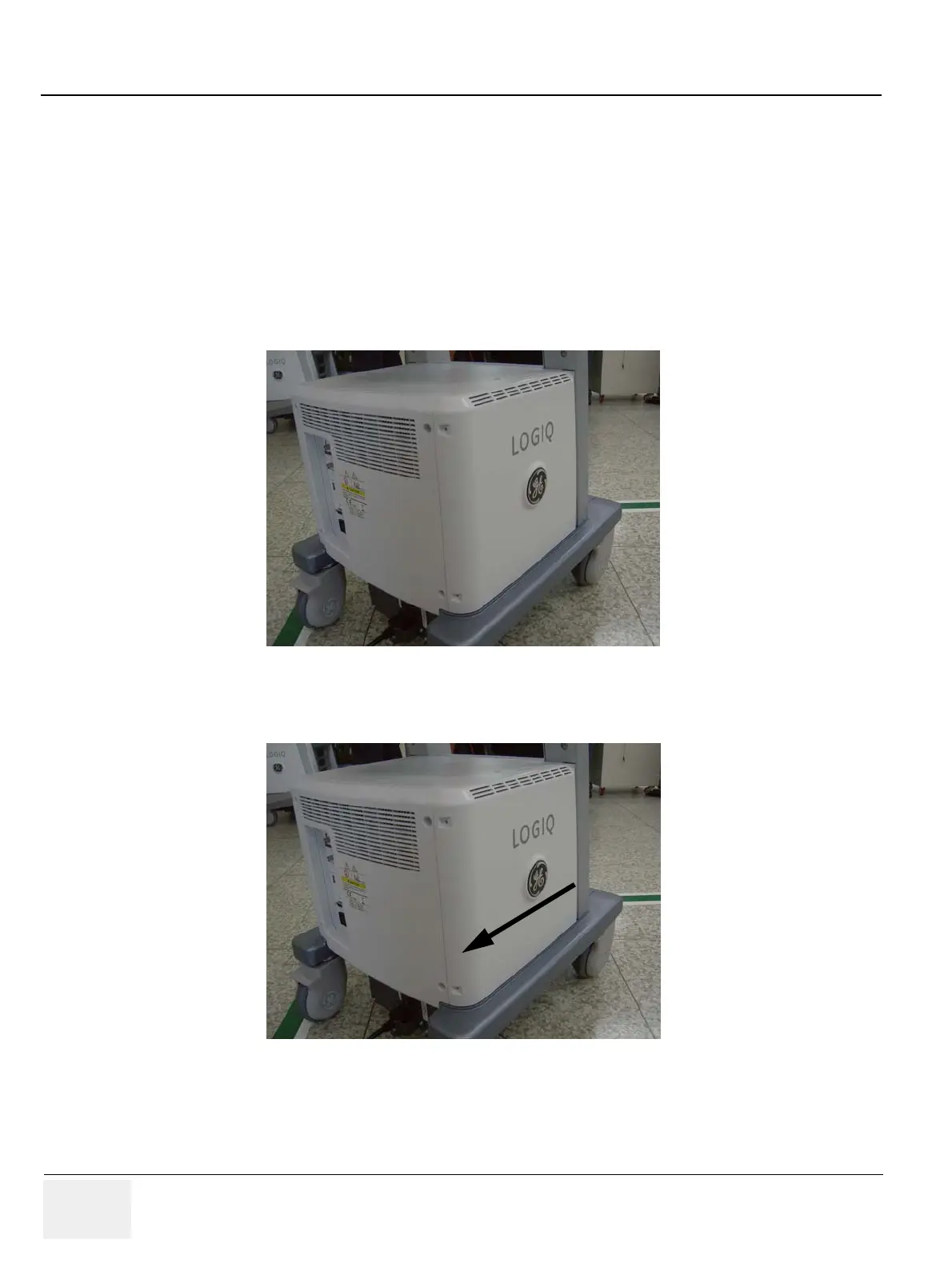

Figure 8-86 2 screw on side cover

Figure 8-87 Open side cover
